Description

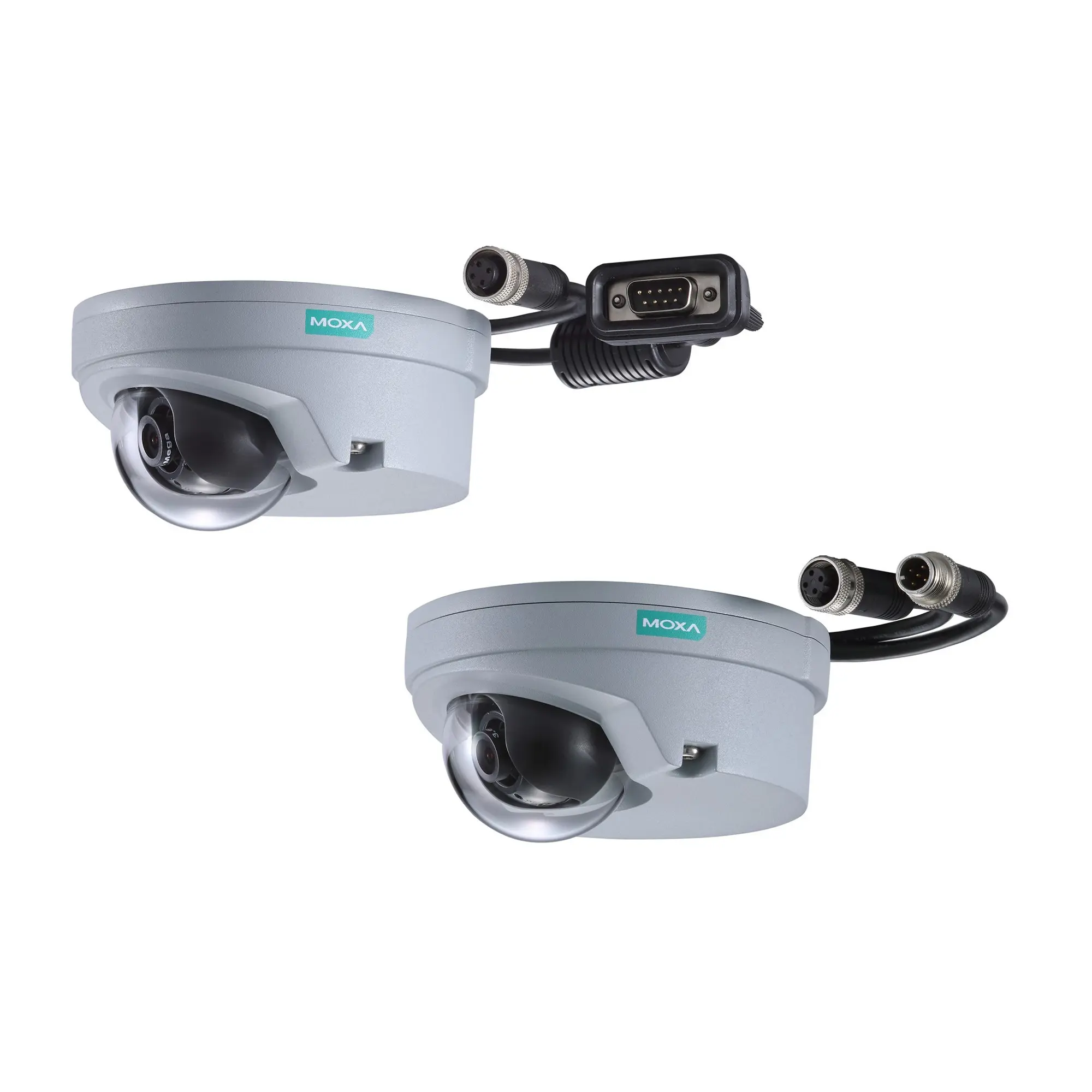

Industrial edge connectivity device – EN 50155, 3-megapixel, H.265/H.264/MJPEG IP camera, 1 line-in audio input, PoE, 2.4 mm lens, -40 to 70°C
Input/Output Interface
- Digital Input Channels: 1
- Digital Inputs: +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA
- Connector: VPort P07-3 Series: 5-pin male M12 connector with 20 cm cable VPort 07-3 Series: DB9 male
Ethernet Interface
- PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): VPort P07-3 Series: 1
- 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): VPort 07-3 Series: 1
Ethernet Software Features
- Protocols: TCP/IP IPv4/IPv6 UDP, HTTP, RTP/RTSP ARP UPnP FTP, TFTP, SFTP, NTP Client DNS QoS IGMP v3 ICMP SNMPv1/v2c/v3 DHCP Opt66/67 HTTPS
Security Functions
- Password: User-level password protection
- Filter: IP address
- System Boot: Secure Boot
- Encryption: HTTPS SSH
Power Parameters
- No. of Power Inputs: 1
- Source of Input Power: VPort P07-3 Series: PoE (IEEE 802.3af)
- Input Voltage: VPort 07-3 Series: 12/24 VDC
- Input Current: VPort P07-3: 48 VDC @ 0.137 AVPort 07-3: 24V VDC @ 0.27 A; 12 VDC @ 0.59 A
- Power Connector: VPort 07-3 Series: DB9 connector
Camera Characteristics
- Sensor: 1/3-in 3-megapixel progressive scan CMOS
- Lens: VPort 07/P07-3x24M Series: f=2.4 mm, F2.0, Diagonal 139°, Horizontal 110°, Vertical 81°VPort 07/P07-3x36M Series: f=3.6 mm, F1.6, Diagonal 97°, Horizontal 75°, Vertical 55°VPort 07/P07-3x42M Series: f=4.2 mm, F1.6, Diagonal 82°, Horizontal 64°, Vertical 47°VPort 07/P07-3x60M Series: f=6.0 mm, F1.8, Diagonal 57°, Horizontal 43°, Vertical 32°VPort 07/P07-3x80M Series: f=8.0 mm, F1.6, Diagonal 41°, Horizontal 33°, Vertical 24°
- Minimum Illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
- Synchronization: Internal
- White Balance: ATW/AWB
- Electronic Shutter: Auto, Fixed (1/30 to 1/25000 sec)
- S/N Ratio: Maximum 50 dB (AGC off; DNR on)
- DNR (digital noise reduction): Built-in 2D/3D DNR
- WDR (wide dynamic range): 100 dB
- AGC (auto gain control): 2X, 4X, 8X, 16X
- Flickerless Control: Automatic, 50 Hz, 60 Hz modes
- Image Rotation: Flip, Mirror, 90°, 180°, 270° rotation
- Image Setting: Manual tuning with saturation, sharpness, and contrast
- Camera Angle: Pan: ±15°, Tilt: 20° to 90° for 2.4mm lens, 0° to 90° for other lens (controlled manually)
Video Interface
- Video Compression: H.265 (MPEG-H part 2/HEVC), H.264 (ISO/IEC 14496-10/AVC), or MJPEG
- Video Output: via Ethernet
- Video Streams: 4 independent video streams
- Video Resolution and FPS (frames per second): Read more NTSC PAL Size Max. FPS Size Max. FPS CIF 352 x 240 30 352 x 288 25 VGA 640 x 480 30 640 x 480 25 4CIF 704 x 480 30 704 x 576 25 Full D1 720 x 480 30 720 x 576 25 SVGA 800 x 600 30 800 x 600 25 HD 1280 x 720 30 1280 x 720 25 WXGA 1280 x 800 30 1280 x 800 25 Full HD 1920 x 1080 30 1920 x 1080 30 QXGA 2048 x 1536 20 2048 x 1536 20
- Video Resolution and FPS (frames per second): Note: Once the 3-megapixels resolution is configured in one stream, all video streams will be on
