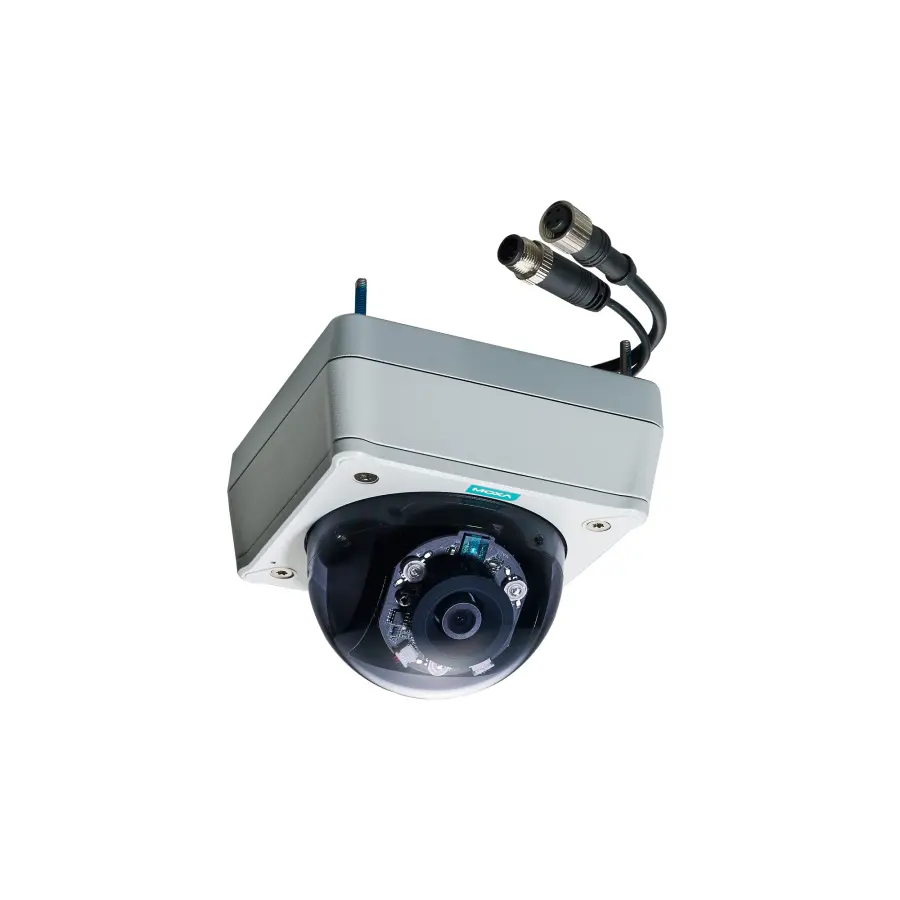

# VPort P16-2MR36M

Industrial edge connectivity device, LAN: via Ethernet, Protocols: TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, T, Temp: -25 to 55°C (-13 to 131°F), Power: 1

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 241208116110 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial edge connectivity device – EN50155, day & night, IR, 1080P IP Camera, 3.6 mm lens, PoE, M12 connector, -25 to 55°C operating temperatureMemorymicroSD Slot: SDXCInput/Output InterfaceDigital Input Channels: 1Digital Inputs: +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mAConnector: 5-pin A-coded male M12 connector with 20 cm cableEthernet InterfacePoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1Standards: IEEE 802.3af for PoEEthernet Software FeaturesProtocols: TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPSSecurity FunctionsPassword: User-level password protectionFilter: IP addressEncryption: HTTPSPower ParametersNo. of Power Inputs: 1Source of Input Power: PoE (IEEE 802.3af)Input Current: 0.26 A @ 48 VDCCamera CharacteristicsSensor: 1/3-in 1080P progressive scan CMOSLens: f=3,6 mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39°Minimum Illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) Note: 0 lux if IR illuminator is onCamera Angle: Pan 350°, Tilt 65° (controlled manually)Day & Night: Auto/Color/BW; ICR controlSynchronization: InternalWhite Balance: ATW/AWBElectronic Shutter: Auto, Fixed (1/30 to 1/25000 sec)S/N Ratio: Maximum 50 dB (AGC off; DNR on)ICR Control: Auto (light sensor control) or DI controlIR Illumination: IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensorDNR (digital noise reduction): Built-in 2D/3D DNRWDR (wide dynamic range): 100 dBAGC (auto gain control): 2X, 4X, 8X, 16XFlickerless Control: Automatic, 50 Hz, 60 Hz modesImage Rotation: Flip, Mirror, 90°, 180°, 270° rotationImage Setting: Manual tuning with saturation, sharpness, and contrastVideo InterfaceVideo Compression: H.264 (ISO/IEC 14496-10) or MJPEGVideo Output: via EthernetVideo Streams: 4 independent H.264 or MJPEG video streamsVideo Resolution and FPS (frames per second): Read more NTSC PAL Size Max. FPS Size Max. FPS QCIF 176 x 112 30 176 x 144 25 CIF 352 x 240 30 352 x 288 25 VGA 640 x 480 30 640 x 480 25 4CIF 704 x 480 30 704 x 576 25 Full D1 720 x 480 30 720 x 576 25 SVGA 800 x 600 30 800 x 600 25 HD 1280 x 720 30 1280 x 720 25 WXGA 1280 x 800 30 1280 x 800 25 Full HD 1920 x 1080 30 1920 x 1080 30Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clientsAudio InterfaceAudio Format: Mono, PCM (G.711) AACAudio In
