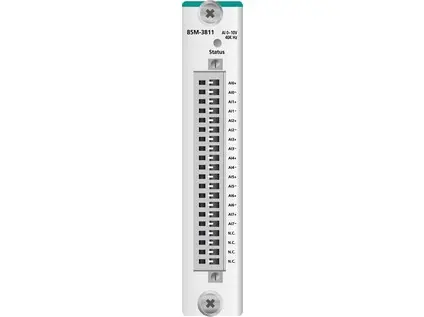

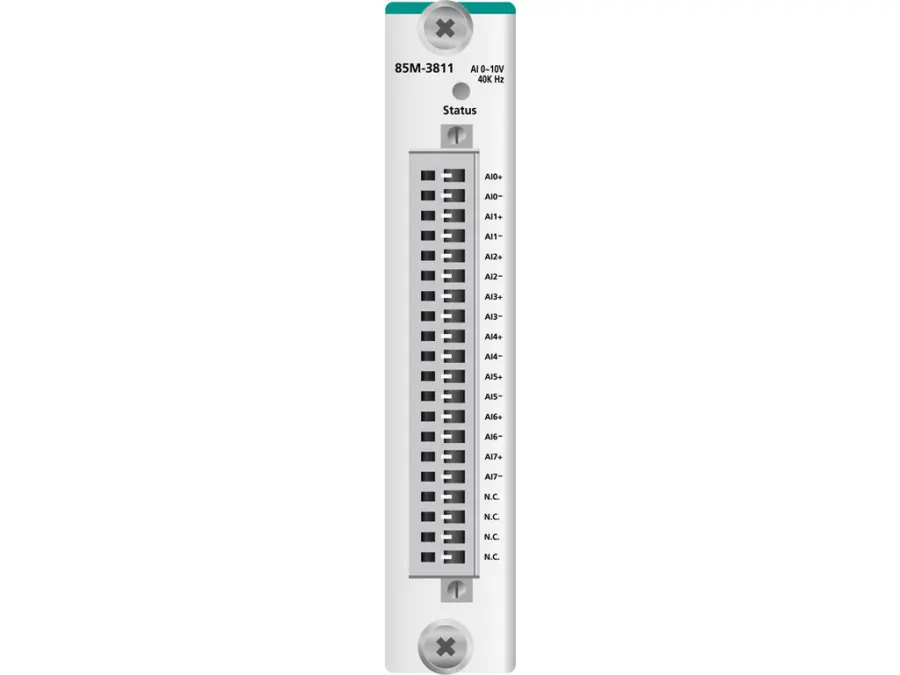

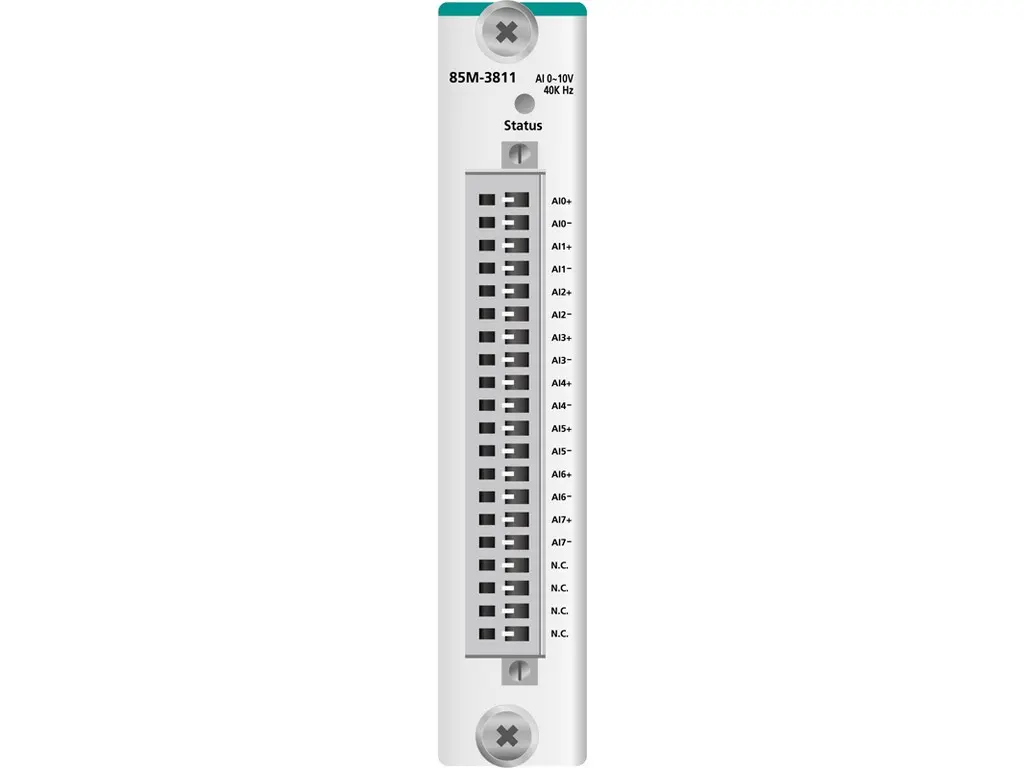

85M-3811-T

I/O module – Module for the ioPAC 8500/8600 Series, 8 AIs, 0 to 10 V, 40 kHz, -40 to 75°C operating temperature

Input/Output Interface

• Analog Input Channels: 8
• Isolation: 3k VDC or 2k Vrms

Digital Outputs

• Pulse Output Frequency: 5 kHz

Analog Inputs

• Accuracy: ±0.1% FSR @ 25°C ±0.3% FSR @ -40 to 75°C
• Connector: Spring-type Euroblock terminal
• Historical Data Buffering: 60 KB per channel 6-second data buffer at 5 kHz
• I/O Type: Differential
• Input Impedance: 20 mega-ohms (min.)
• Input Range: 0 to 10 VDC
• Resolution: 16 bits
• Sampling Rate: All channels: 40k samples/sec Per channel: 5k samples/sec

Power Parameters

• Power Consumption: 521 mA @ 24 VDC

Physical Characteristics

• Dimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
• Weight: Under 80 g
• Wiring: I/O cable, 14 to 28 AWG

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Altitude: 2000 m Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

• EMC: EN 55032/24 EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Railway: EN 50121-4 EN 50155 (complies with a portion of EN 50155 specifications)
• Safety: UL 508
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6

MTBF

• Time: 1,426,112 hrs
• Standards: Telcordia SR332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
