Description

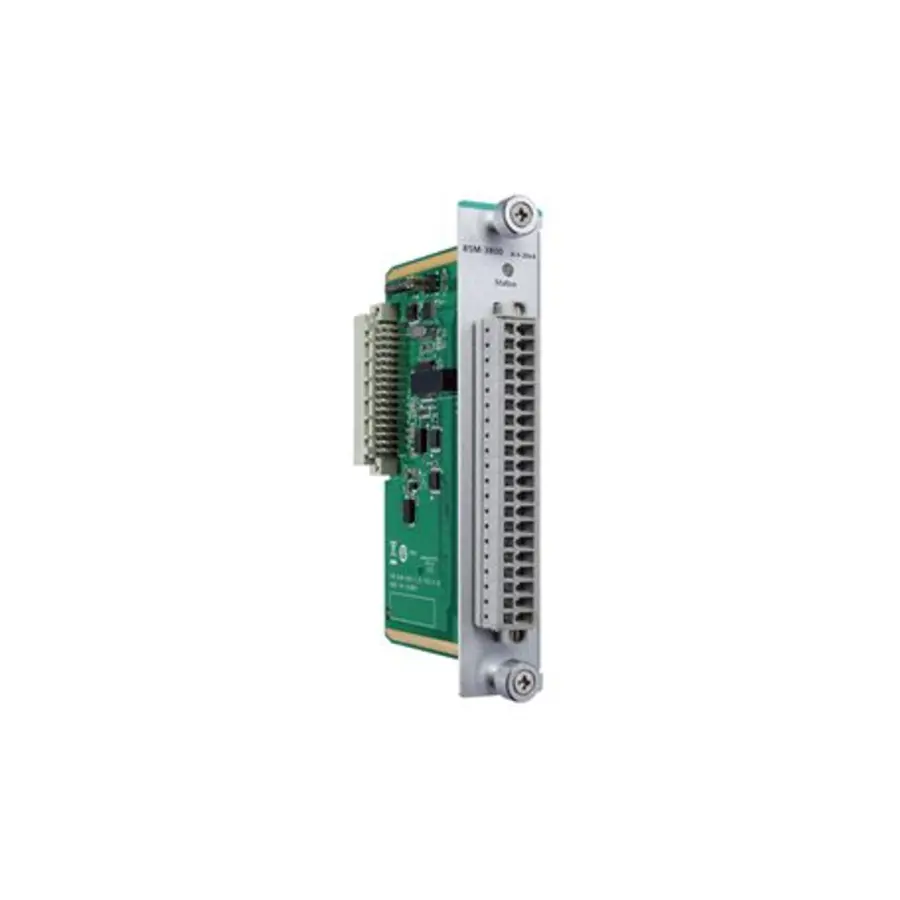

I/O module – Module for the ioPAC 8600 Series with 8 DIs, 24 VDC, sink/source, channel-to-channel isolation, channel LED, -40 to 75°C operating temperature
Input/Output Interface
- Digital Input Channels: 8
- Isolation: 3k VDC or 2k Vrms
Digital Inputs
- Connector: Spring-type Euroblock terminal
- Voltage: 24 VDC
- Channel-to-Channel Isolation: 1k VDC
- Counter Frequency: 5k Hz
- Digital Filtering Time Interval: Software configurable
- I/O Mode: DI, event counter, or frequency
- Sensor Type: Wet Contact (NPN or PNP)
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
Digital Outputs
- Connector: Spring-type Euroblock terminal
- I/O Mode: DO or PWM
Power Parameters
- Power Consumption: 12.6 mA @ 24 VDC
Physical Characteristics
- Dimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
- Weight: Under 80 g
- Wiring: I/O cable, 16 to 28 AWG
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
- EMC: EN 55032/24, EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway: EN 50121-4, EN 50155
- Safety: UL 508
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
MTBF
- Time: 1,149,108 hrs
- Standards: Telcordia SR332
