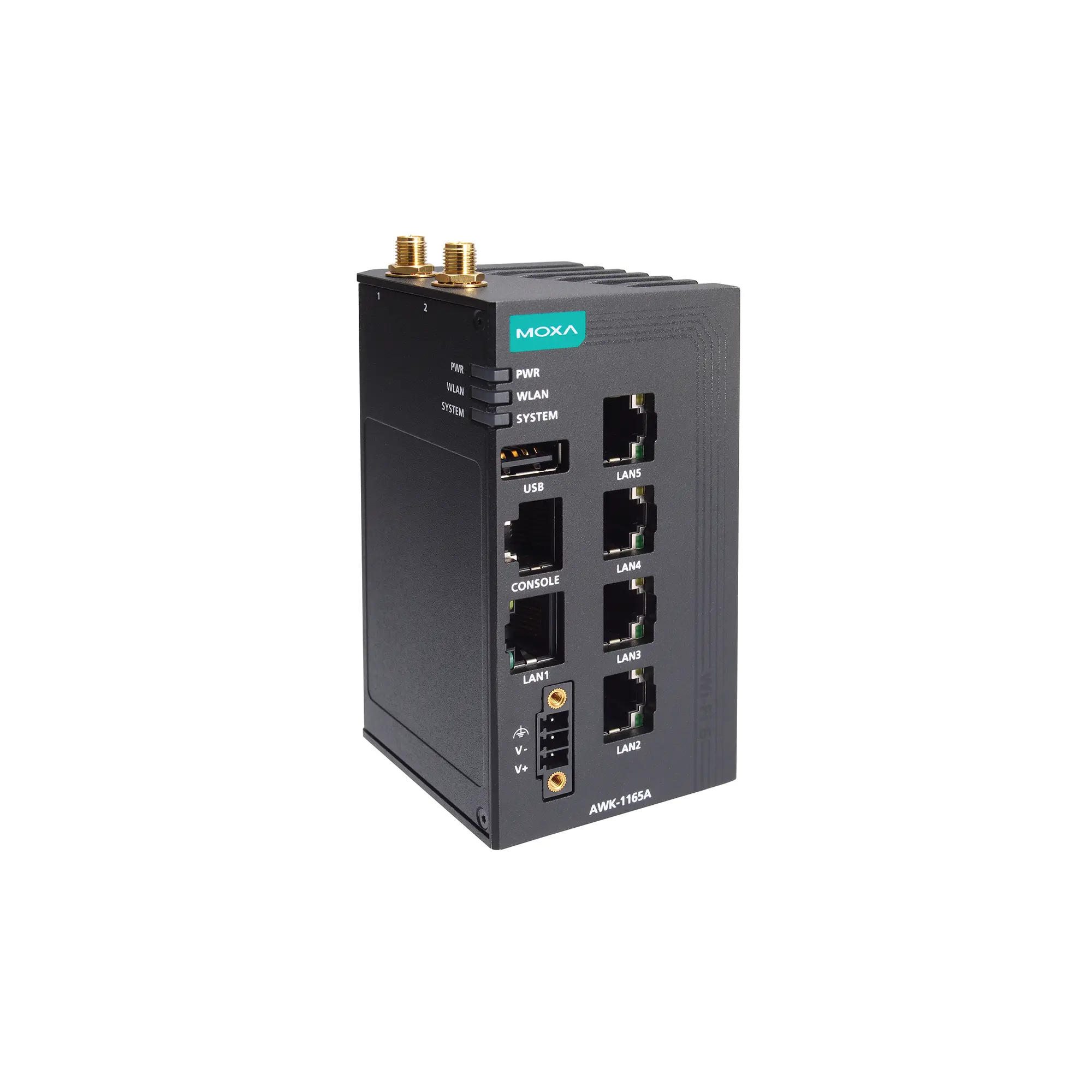

AWK-1165A-US

Industrial wireless AP/client – Industrial Wi-Fi 6 (802.11ax) wireless AP with 5 10/100/1000BaseT(X) ports, IP30, US band, -25 to 60°C operating temperature

WLAN Interface

• WLAN Standards: 2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHzWMM for QoS
• Frequency Band for US (20 MHz operating channels): 2.412 to 2.462 GHz (11 channels) 5.180 to 5.240 GHz (4 channels) 5.745 to 5.825 GHz (5 channels) 5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service. 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
• Wireless Security: WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2/WPA3-Personal
• Wireless Roaming: 802.11k/v/r 802.11k/v are not supported in Client-based modes.
• Transmission Rate: 2.4 GHz:Up to 573.5 Mbps5 GHz:Up to 1,201 Mbps
• Transmitter Power for 802.11a (Dual Chain): 21±1.5 dBm @ 6 Mbps 21±1.5 dBm @ 54 Mbps
• Transmitter Power for 802.11n (5 GHz, Dual Chain): 21±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS7 20 MHz 21±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS7 40 MHz
• Transmitter Power for 802.11ac (Dual Chain): 21±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS8 20 MHz 21±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS9 40 MHz 21±1.5 dBm @ MCS0 80 MHz 21±1.5 dBm @ MCS9 80 MHz
• Transmitter Power for 802.11ax (Dual Chain): 21±1.5 dBm @ MCS0 20 MHz 20±1.5 dBm @ MCS11 20 MHz 21±1.5 dBm @ MCS0 40 MHz 20±1,5 dBm @ MCS11 40 MHz 21±1.5 dBm @ MCS0 80 MHz 20±1.5 dBm @ MCS11 80 MHz
• Transmitter Power for 802.11b (Dual Chain): 21±1.5 dBm @ 1 Mbps 21±1.5 dBm @ 11 Mbps
• Transmitter Power for 802.11g (Dual Chain): 21±1.5 dBm @ 6 Mbps 21±1.5 dBm @ 54 Mbps
• Transmitter Power for 802.11n (2.4 GHz, Dual Chain): 21±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS7 20 MHz 21±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS7 40 MHz
• Transmitter Power for 802.11ac (2.4 GHz, Dual Chain): 21±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS8 20 MHz 21±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS7 40 MHz
• Transmitter Power for 802.11ax (2.4 GHz, Dual Chain): 21±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS11 20 MHz 21±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS11 40 MHz
• Receiver Sensitivity for 802.11a: Typ. -88 dBm @ 6 Mbps Typ. -72 dBm @ 54 Mbps
• Receiver Sensitivity for 802.11n (5 GHz): Typ. -88 dBm @ MCS0 20 MHz Typ. -68 dBm @ MCS7 20 MHz Typ. -84 dBm @ MCS0 40 MHz Typ. -66 dBm @ MCS7 40 MHz
• Receiver Sensitivity for 802.11ac (5 GHz): Typ. -88 dBm @ MCS0 20 MHz Typ. -65 dBm @ MCS8 20 MHz Typ. -85 dBm @ MCS0 40 MHz Typ. -60 dBm @ MCS9 40 MHz Typ. -81 dBm @ MCS0 80 MHz Typ. -55 dBm @ MCS9 80 MHz
• Receiver Sensitivity for 802.11ax (5 GHz): Typ. -88 dBm @ MCS0 20 MHz Typ. -59 dBm @ MCS11 20 MHz Typ. -85 dBm @ MCS0 40 MHz Typ. -56 dBm @ MCS11 40 MHz Typ. -81 dBm @ MCS0 80 MHz Typ. -52 dBm @ MCS11 80 MHz
• Receiver Sensitivity for 802.11b: Typ. -96 dBm @ 1 Mbps Typ. -88 dBm @ 11 Mbps
• Receiver Sensitivity for 802.11g: Typ. -90 dBm @ 6 Mbps Typ. -74 dBm @ 54 Mbps
• Receiver Sensitivity for 802.11n (2.4 GHz): Typ. -90 dBm @ MCS0 20 MHz Typ. -70 dBm @ MCS7 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -69 dBm @ MCS7 40 MHz
• Receiver Sensitivity for 802.11ac (2.4 GHz): Typ. -90 dBm @ MCS0 20 MHz Typ. -66 dBm @ MCS6 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -63 dBm @ MCS9 40 MHz
• Receiver Sensitivity for 802.11ax (2.4 GHz): Typ. -90 dBm @ MCS0 20 MHz Typ. -59 dBm @ MCS11 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -56 dBm @ MCS11 40 MHz
• WLAN Operation Mode: Access point Master Sniffer
• Antenna: External, 2/2 dBi Omni-directional
• Antenna Connectors: 2 RP-SMA female

Ethernet Interface

• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3az for Energy-Efficient Ethernet IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication
• 10/100/1000BaseT(X) Ports (RJ45 connector): 5

Ethernet Software Features

• Management: DHCP Server DHCP Client DNS HTTP IPv4/IPv6 LLDP SMTP SNMPv1/v2c/v3 Syslog TCP/IP Telnet UDP VLAN MXconfig MXview One MXview Wireless
• Security: HTTPS/SSL, RADIUS, SSH Certificate Management
• Time Management: SNTP Client

Firewall

• Filter: ICMP MAC address IP protocol Port-based Wi-Fi ACL Client Isolation

Serial Interface

• Console Port: RS-232 8-pin RJ45

USB Interface

• Storage Port: USB Type A (for ABC-02 only)

LED Interface

• LED Indicators: PWR, WLAN, SYSTEM

Input/Output Interface

• Buttons: Reset button

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 60 x 100 x 53 mm (2.36 x 3.94 x 2.09 in)
• Weight: 428.5 g (0.94 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Power Parameters

• Input Current: 9 to 30 VDC, 1.57 to 0.47 A
• Input Voltage: 9 to 30 VDC
• Power Connector: 1 removable 3-contact terminal block(s)
• Power Consumption: 14 W (max.)

Environmental Limits

• Operating Temperature: -25 to 60°C (-13 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 61000-6-2/-6-4 EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V/m IEC 61000-4-8 PFMF: 30 A/m
• Road Vehicles: E mark E1
• Medical: IEC 60601
• Safety: IEC 62368-1 UL 62368-1
• Cybersecurity: EN 18031-1
• Vibration: IEC 60068-2-6
• Radio: EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC

MTBF

• Time: 4,002,106 hrs
• Standards: Telcordia Standard SR-332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
