Description

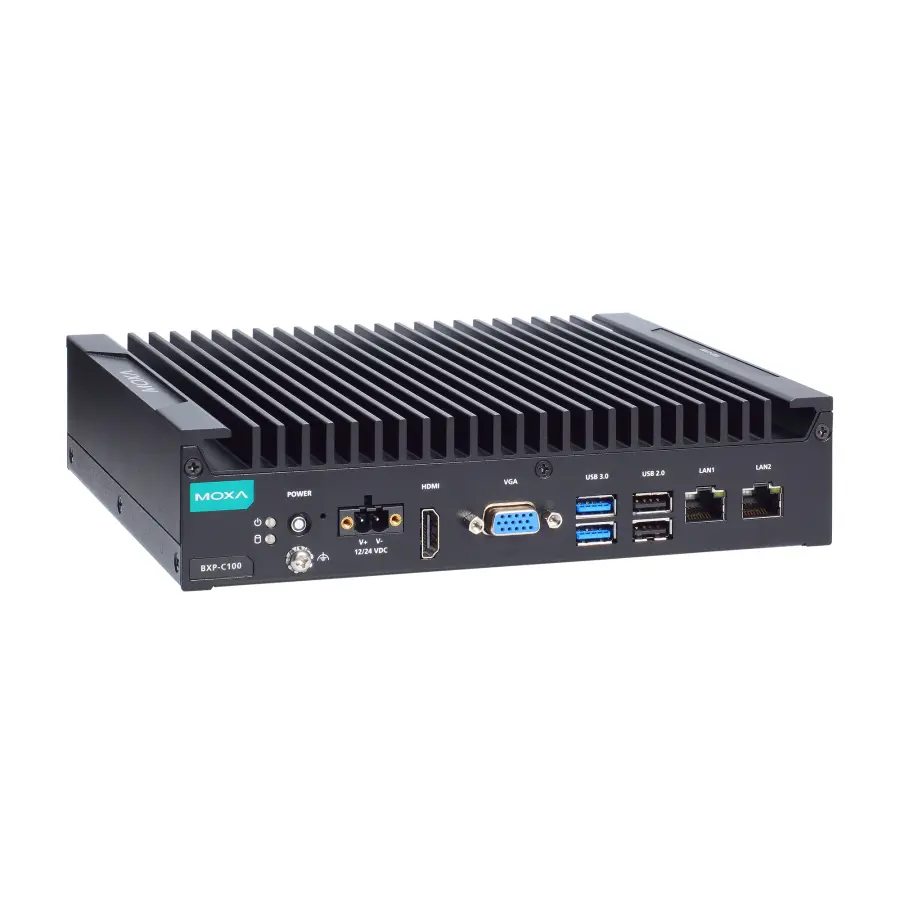

Industrial computer – Box computer with Intel® Core® i5-1145G7E processor, 2 LAN ports, 2 serial ports, 4 DIs, 4 DOs, 2 USB 3.0 ports, 4 USB 2.0 ports, 1 VGA port, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, Windows 10 LTSC 2021 preinstalled, -30 to 60°C operating temperature
Computer
- CPU: BXP-C100-C1 models: Intel® Celeron® 6305E processor (Dual core, 4M cache, 1.80 GHz)BXP-C100-C5 models: Intel® Core™ i5-1145G7E processor (Quad core, 8M cache, 2.60 GHz, Base:1.50 GHz)BXP-C100-C7 models: Intel® Core™ i7-1185G7E processor (Quad core, 12M cache, 2.80 GHz, Base:1.80 GHz)
- System Memory Slot: SODIMM DDR4 slots x 1, up to 32 GB max.
- System Memory Pre-installed: 8 GB DDR4
- Storage Slot: CFast slot x 1 (SATAIII interface) SD slots x 1, SD 3.0 interface (SDHC/SDXC)
- Storage Pre-installed: BXP-C100-C1-T-Win10/C5-T-Win10/C7-T-Win10: 64 GB CFast card
- Supported OS: Windows Images and Drivers Supported:- Windows 11 IoT Enterprise LTSC 2024 64-bit- Windows 11 Professional 64-bit - Windows 10 IoT Enterprise LTSC 2021 64-bitLinux drivers supported: - Debian 12 (kernel 6.1)- Debian 11 (kernel 5.10) - Ubuntu 22.04 LTS (kernel 5.15) - RHEL 9 (kernel 5.14)
- Graphics Controller: Intel® UHD Graphics
Computer Interface
- Ethernet Ports: BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 10BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4All other models:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- Serial Ports: BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T:RS-232/422/485 ports x 10, software selectable (DB9 male) x 10BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T:RS-232/422/485 ports x 5, software selectable (DB9 male) x 5All other models:RS-232/422/485 ports x 2, software selectable (DB9 male) x 2
- USB 3.0: USB 3.0 hosts x 2, type-A connectors
- USB 2.0: USB 2.0 hosts x 4, type-A connectors
- Digital Input: DIs x 4
- Digital Output: DOs x 4
- TPM: TPM v2.0
- Video Output: HDMI 2.0b x 1, (type-A connector)VGA x 1, 15-pin D-sub connector (female)
- Buttons: Reset button Power button
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Connector: DB9 male
- Data Bits: 5, 6, 7, 8
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
- Flow Control: RTS/CTS, XON/XOFF
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
- Connector: Spring-type Euroblock terminal
- Sensor Type: Dry contact
- Dry Contact: Logic 0: Short to GND Logic 1: Open
Digital Outputs
- Connector: Spring-type Euroblock terminal
- I/O Type: Sink
- Current Rating: 200 mA per channel
- Voltage: 0 to 24 VDC
LED Indicators
- System: Power x 1 Storage x 1
- LAN: 2 per port (10/100/1000 Mbps)
Power Parameters
- Input Voltage: 12/24 VDC
- Power Connector: Screw-fastened Euroblock terminal
- Power Consumption: 90 W
Physical Characteristics
- Housing: Metal
- IP Rating: IP20
- Dimensions: BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10:210 x 166 x 48 mm (8.27 x 6.54 x 1.9 in)BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T/C1-2L3C-T/C5-2L3C-T/C7-2L3C-T:210 x 166 x 65.5 mm (8.27 x 6.54 x 2.58 in)BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T:210 x 166 x 83 mm (8.27 x 6.54 x 3.27 in)
- Weight: BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10:2,015 g (4.44 Ib)BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T:2,355 g (5.19 Ib)BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T:2,208 g (4.86 Ib)BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T:2,385 g (5.25 Ib)
- Installation: Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: -30 to 60°C (-22 to 140°F)
- Storage Temperature: -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A BSMI
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 6 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: line-to-ground 1 kV, line-to-line 0.5 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V, Spot Frequency: 10 V IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
- Hazardous Locations: ATEX IECEx Class I Division 2
- Maritime: DNV-CG-0339 IEC 60945 IACS E10
- Safety: UL 62368-1 EN 62368-1 IEC 62368-1 BSMI
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-64, DNV-CG-0339 Class A IEC 60068-2-6 IEC 60945
- Package Drop Test: ISTA 1A
- Package Vibration Test: ISTA 1A
- Environmental Testing: IEC 60068-2-1, DNV-CG-0339 IEC 60068-2-1, IEC 60945 IEC 60068-2-2, DNV-CG-0339 IEC 60068-2-2, IEC 60945
Declaration
- Green Product: RoHS, CRoHS, WEEE
Reliability
- Time Source: Built-in RTC (real-time clock) with lithium-battery backup
- Automatic Reboot Trigger: Built-in WDT
MTBF
- Time: 1,517,956 hrs
- Standards: Telcordia (Bellcore), GB
