Description

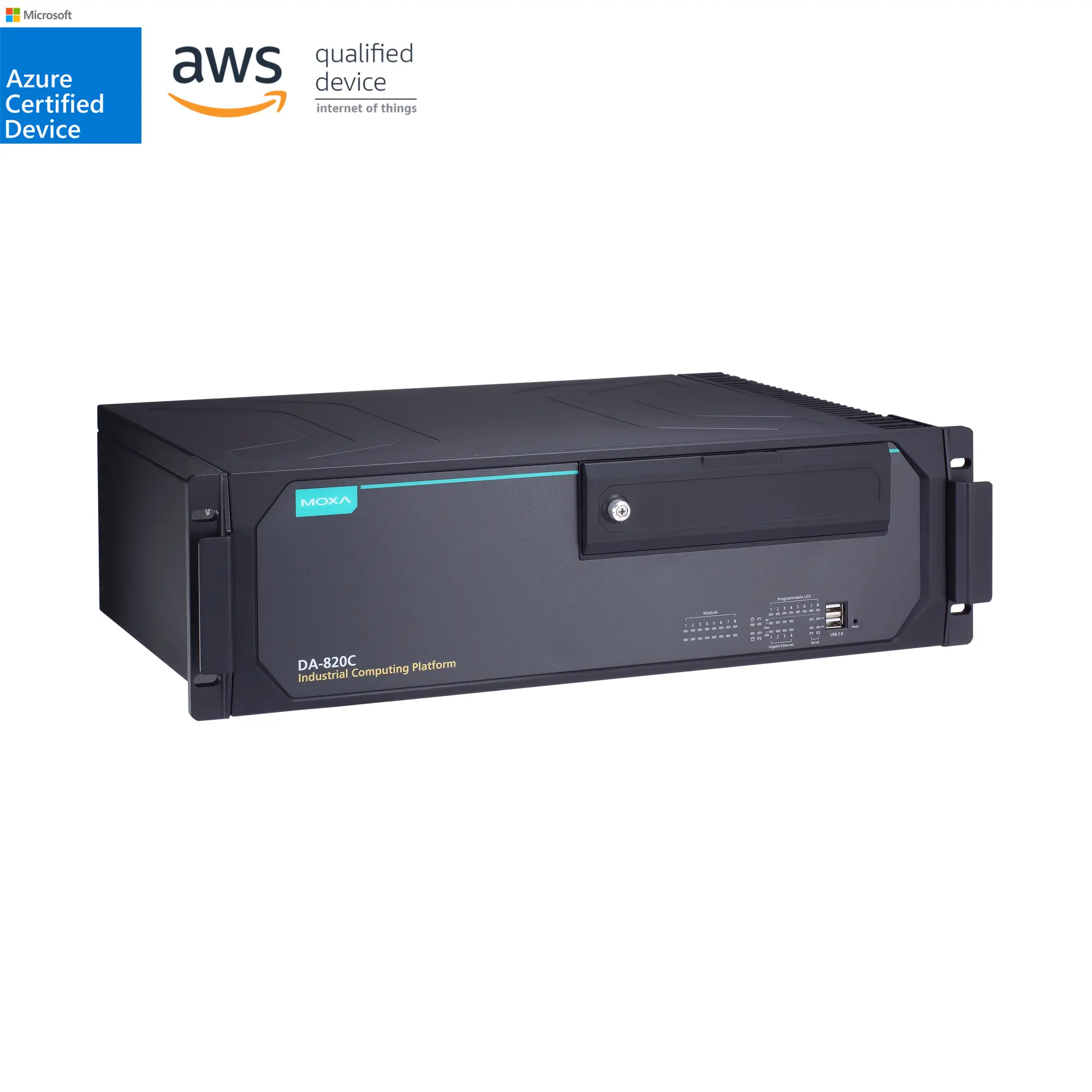

Industrial server – x86 computer with Intel® Core™ i3-7102E processor, 2 HDMI ports, 1 VGA port, 2 PS/2 ports, 4 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 6 DIs, 2 DOs, 1 mSATA slot, 4 SSD slots, single AC power, -40 to 70°C operating temperature
Computer
- CPU: Intel® Core™ i3-7102E Processor (3M Cache, 2.10 GHz)
- System Memory Slot: SODIMM DDR4 slots x 2
- DRAM: 64 GB max. capacity (SODIMM x 2, each supporting 2400 MHz and 32 GB maximum per module) ECC RAM only supports i3 CPU and Xeon CPU models
- Graphics Controller: Intel® HD Graphics 630
- Storage Slot: 2.5-inch HDD/SSD slots x 4 mSATA slots x 1, internal mini-PCIe socket
- Supported OS: Windows CTOS and drivers supported:Windows 10 IoT Enterprise LTSC 2021 64-bitWindows 10 IoT Enterprise LTSC 2019 64-bitDriver supported:Windows Server 2022Windows Server 2019Linux SDK supported:Debian 12Ubuntu 22.04 LTS & HWERedHat 9CentOS 7.9
- MMS: IEC 61850-90-4 MMS Server for power SCADA IEC 61850-90-4 MMS ICD file
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
- Serial Ports: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
- Digital Input: DIs x 6
- Digital Output: DOs x 2
- USB 2.0: USB 2.0 hosts x 3, type-A connectors 2 ports on the front panel, 1 port inside the computer
- USB 3.0: USB 3.0 hosts x 3, type-A connectors 3 ports on the rear panel
- Expansion Slots: PCIe x16 slot x 1 PCIe x4 slots x 1 PCIe x1 slots x 2 PCI slots x 1
- Video Output: HDMI x 2, HDMI connector (type A) VGA x 1, 15-pin D-sub connector (female)
- Time Synchronization: PTP, IRIG-B (with an expansion module)
- TPM: TPM v2.0
- Secure Boot: UEFI
LED Indicators
- System: Power x 1 Storage x 1 Programmable x 8
- Serial: 2 per port (Tx, Rx)
- LAN: 8 per port (10/100/1000 Mbps)
Serial Interface
- Baudrate: 300 bps to 115.2 kbps
- Connector: DB9 male
- ESD: 8 kV (level 4)
- Isolation: 2 kV
- Serial Standards: RS-232/422/485
- Surge: 2 kV
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
- Digital Input Channels: DIs x 6
- Voltage: 0 to 30 VDC at 25 Hz
- Wet Contact (DI to COM): On: 10 to 30 VDC
Digital Outputs
- Digital Output Channels: DOs x 2
- Current Rating: Max. 200 mA per channel
- Voltage: 24 to 30 VDC
- I/O Type: Sink
Power Parameters
- Input Current: 100 to 240 VAC, 50/60 Hz, 1.15 A (max) 100 to 240 VDC, 1.15 A (max)
- Input Voltage: 100 to 240 VAC 100 to 240 VDC
- Power Button: Reset button (front panel) ON/OFF (rear panel)
Physical Characteristics
- Housing: Metal
- Dimensions (without ears): 440 x 132.8 x 281.4 mm (17.3 x 5.2 x 11.1 in)
- Weight: 14,000 g (31.11 lb)
- I
