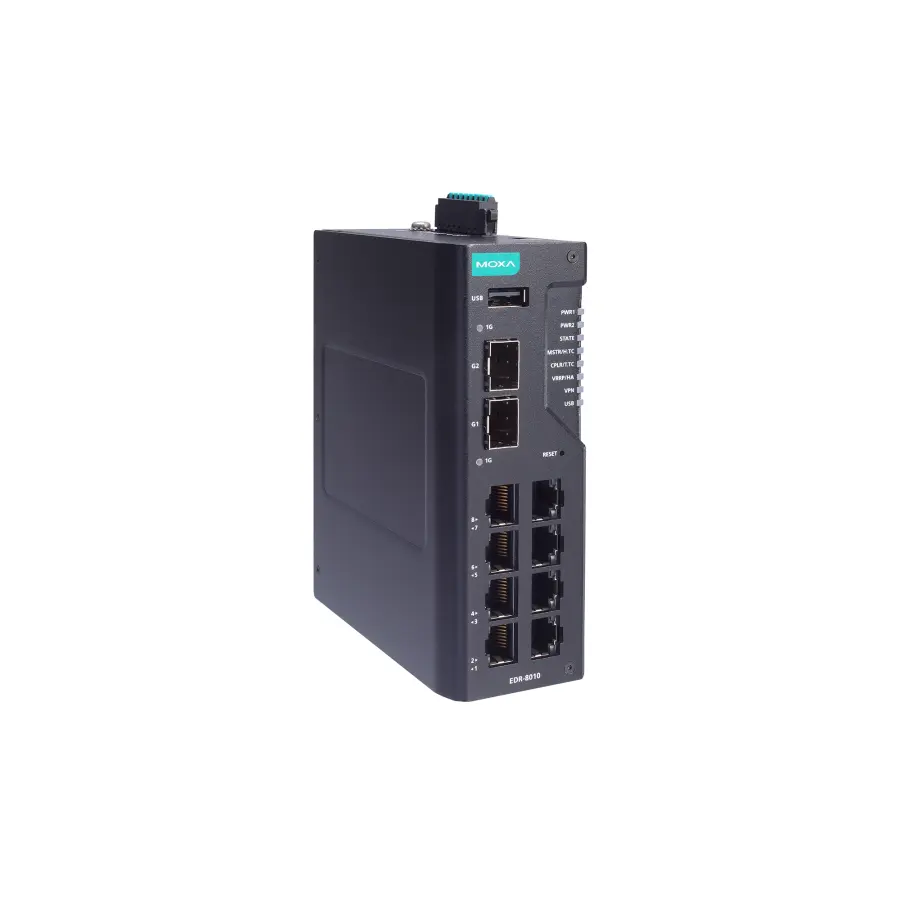

EDR-8010-VPN-2GSFP-CT-T

Industrial router – 8 FE copper and 2 GbE SFP multiport industrial secure router with firewall/NAT/VPN, 12/24/48 VDC input voltage, -40 to 75°C operating temperature, conformal coating

Input/Output Interface

• Alarm Contact Channels: Resistive load: 1 A @ 24 VDC
• Buttons: Reset button
• Digital Input Channels: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 8
• 1000BaseSFP Slots: 2
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication
• DMZ: User-configurable DMZ ports

Ethernet Software Features

• Broadcast Forwarding: IP directed broadcast, broadcast forwarding
• Management: Back Pressure Flow Control DDNS DHCP Server/Client Web Console (HTTP/HTTPS) LLDP QoS/CoS/ToS SNMPv1/v2c/v3 Telnet TFTP HTTPS SSH
• Redundancy Protocols: RSTP STP Turbo Ring v2 Turbo Chain
• Routing Throughput: Max. 50K packets per second / 500 Mbps (based on RFC 2544)
• Routing Table: Max. 4K routing rules
• Concurrent Connections: Max. 120K (based on RFC 3511)
• Connections Per Second: Max. Max. 6K (based on RFC 3511)
• Routing Redundancy: VRRP
• Security: Secure Boot IPsec L2TP (server) RADIUS Trust access control TACACS+ SCP SFTP NTP authentication Syslog Authentication
• Time Management: NTP Server/Client SNTP
• Unicast Routing: OSPF RIPV1/V2 Static Route
• Multicast Routing: Static Route
• Filter: IGMP v1/v2/v3

Switch Properties

• VLAN ID Range: VID 1 to 4094
• IGMP Groups: 1000
• Max. No. of VLANs: 32

LED Interface

• LED Indicators: PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB

DoS and DDoS Protection

• Technology: ARP-Flood FIN Scan ICMP Flood TCP Sessions Without SYN NMAP-ID Scan NMAP-Xmas Scan Null Scan SYN/FIN Scan SYN/RST Scan SYN-Flood Xmas Scan

Firewall

• Filter: DDoS Ethernet protocols ICMP IP address MAC address Ports
• Stateful Inspection: Router firewall Transparent (bridge) firewall
• Deep Packet Inspection: Modbus TCP Modbus UDP DNP3 IEC 60870-5-104 IEC 61850 MMS EtherNet/IP MELSEC Omron FINS OPC UA Siemens S7 Comm. Siemens S7 Comm. Plus Additional protocols will be supported through future firmware updates.
• Intrusion Prevention System: Requires an additional license.
• Throughput: Firewall: Max. 80K packets per second / 1000 Mbps (based on RFC 2544)IPS: Max. 40K packets per second / 500 Mbps (based on RFC 2544)

IPsec VPN

• Authentication: MD5 and SHA (SHA-512) RSA (key size: 1024-bit, 2048-bit) X.509 v3 certificate
• Concurrent VPN Tunnels: Max. 50 IPsec VPN tunnels
• Encryption: DES 3DES AES-128 AES-192 AES-256 AES-256-GCM
• Protocols: IPsec L2TP (server) PPTP (client)
• Throughput: Conditions: AES-256, SHA-256Max. 45K packets per second / 300 Mbps (based on RFC 2544)

NAT

• Features: 1-to-1 N-to-1 Port forwarding NAT loopback

Real-Time Firewall / VPN Event Log

• Event Type: Firewall event VPN event
• Media: Local storage SNMP Trap Syslog server

Serial Interface

• Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
• Connector: USB Type-C

Power Parameters

• Connector: Removable terminal block
• Operating Voltage: 9.6 to 60 VDC
• Input Voltage: 12/24/48 VDC, redundant dual inputs (DNV-certified for 24 VDC)
• Input Current: 0.53 A @ 12 VDC 0.26 A @ 24 VDC 0.14 A @ 48 VDC
• Reverse Polarity Protection: Supported

Physical Characteristics

• Housing: Metal
• IP Rating: IP40
• Dimensions: 45 x 135 x 105 mm (1.77 x 5.31 x 4.13 in)
• Weight: 520 g (1.15 lb)
• Installation: DIN-rail mounting (DNV-certified) Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: IEC 62368-1 UL 62368-1
• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Railway: EN 50121-4
• Traffic Control: NEMA TS2
• Maritime: CCS CCS Guidelines for Inspection of Ship Network Firewall CCS IACS UR E27 Rev.1 DNV DNV IEC 61162-460 Edition 3.0 460-gateway, 460-forwarder and 460-switch DNV security profile 2, IACS UR E27 Rev.1 IEC 60945 KR KR IACS UR E27 Rev.1 KR IEC 61162-460 Edition 3.0 460-gateway, 460-forwarder and 460-switch
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Vibration: IEC 60068-2-6
• Power Substation: IEC 61850-3 Edition 2.0 IEEE 1613
• Hazardous Locations: ATEX Class I Division 2 IECEx

MTBF

• Time: 1,347,225 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
