Description

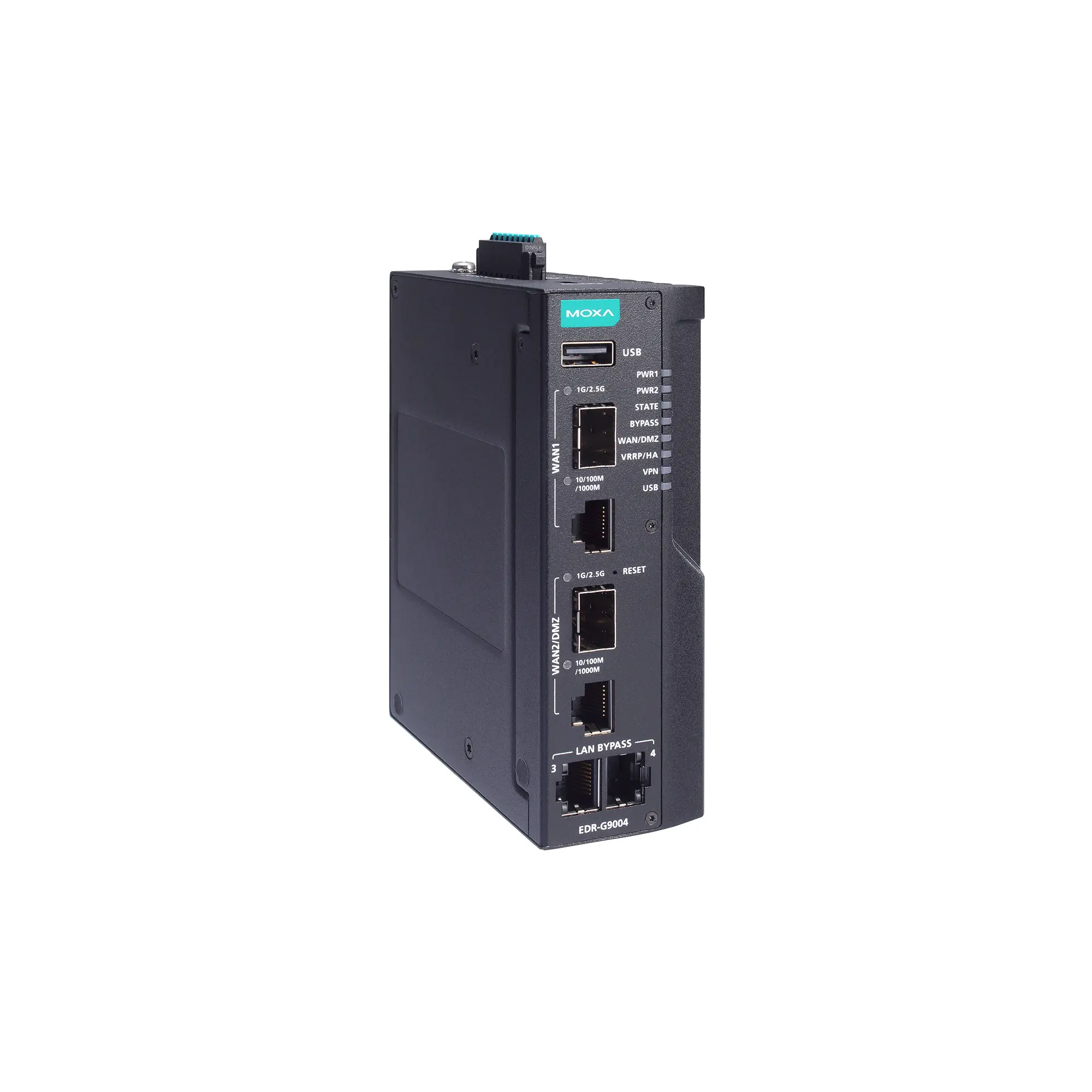

Industrial router – Industrial secure router with 2 Gigabit copper ports with Gen3 Bypass, 2 Gigabit copper/SFP combo ports with firewall/NAT/VPN, 12/24/48 VDC input voltage, -40 to 75°C operating temperature, conformal coating
Input/Output Interface
- Alarm Contact Channels: Resistive load: 1 A @ 24 VDC
- Buttons: Reset button
- Digital Input Channels: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
Ethernet Interface
- 10/100/1000BaseT(X) Ports (RJ45 connector): 2 (with Gen3 LAN Bypass)
- Combo Ports (10/100/1000BaseT(X) or 1000/2500BaseSFP): 2
- DMZ: Supports DMZ port
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control
Ethernet Software Features
- Management: Back Pressure Flow Control DDNS DHCP Server/Client Web Console (HTTP/HTTPS) LLDP SNMPv1/v2c/v3 Telnet TFTP HTTPS SSH
- Routing Throughput: Max. 350K packets per second / 2 Gbps (based on RFC 2544)
- Routing Table: Max. 4K routing rules
- Concurrent Connections: Max. 400K (based on RFC 3511)
- Connections Per Second: Max. 20K (based on RFC 3511)
- Routing Redundancy: VRRP
- Security: Secure Boot IPsec L2TP (server) RADIUS TACACS+ Trust access control SCP SFTP NTP authentication Syslog Authentication
- Time Management: NTP Server/Client SNTP
- Multicast Routing: Static Route
- Unicast Routing: OSPF RIPV1/V2 Static Route
LED Interface
- LED Indicators: PWR1, PWR2, STATE, BYPASS, WAN/DMZ, VRRP/HA, VPN, USB
DoS and DDoS Protection
- Technology: ARP-Flood FIN Scan ICMP Flood TCP Sessions Without SYN NMAP-ID Scan NMAP-Xmas Scan Null Scan SYN/FIN Scan SYN/RST Scan SYN-Flood Xmas Scan
Firewall
- Filter: DDoS Ethernet protocols ICMP IP address MAC address Ports
- Stateful Inspection: Router firewall Transparent (bridge) firewall
- Deep Packet Inspection: Modbus TCP Modbus UDP DNP3 IEC 60870-5-104 IEC 61850 MMS EtherNet/IP MELSEC Omron FINS OPC UA Siemens S7 Comm. Siemens S7 Comm. Plus Additional protocols will be supported through future firmware updates.
- Intrusion Prevention System: Requires an additional license.
- Throughput: Firewall:Max. 350K packets per second / 2 Gbps (based on RFC 2544)IPS:Max. 200K packets per second / 2 Gbps (based on RFC 2544)
IPsec VPN
- Authentication: MD5 and SHA (SHA-512) RSA (key size: 1024-bit, 2048-bit) X.509 v3 certificate
- Concurrent VPN Tunnels: Max. 250 IPsec VPN tunnels
- Encryption: DES 3DES AES-128 AES-192 AES-256 AES-256-GCM
- Protocols: IPsec L2TP (server) PPTP (client)
- Throughput: Conditions: AES-256, SHA-256Max. 100K packets per second / 800 Mbps (based on RFC 2544)
NAT
- Features: 1-to-1 N-to-1 NAT loopback Port forwarding
Real-Time Firewall / VPN Event Log
- Event Type: Firewall event VPN event
- Media: Local storage SNMP Trap Syslog server
Serial Interface
- Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
- Connector: USB Type-C
Power Parameters
- Connection: Removable terminal block
- Input Voltage: 12/24/48 VDC, redundant dual inputs (DNV-certified for 24 VDC)
- Operating Voltage: 9.6 to 60 VDC
- Input Current: 1.01 A @ 12 VDC 0.51 A @ 24 VDC 0.27 A @ 48 VDC
- Reverse Polarity Protection: Supported
Physical Characteristics
- Housing: Metal
- IP Rating: IP40
- Dimensions: 45 x 135 x 105 mm (1.77 x 5.31 x 4.13 in)
- Weight: 800 g (1.76 lb)
- Installation: DIN-rail mounting (DNV-certified) Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F) DNV-certified for -25 to 70°C (-13 to 158°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Safety: IEC 62368-1 UL 62368-1
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway: EN 50121-4
- Traffic Control: NEMA TS2
- Maritime: DNV IEC 60945
- Power Substation: IEEE 1613 IEC 61850-3 Edition 2.0
- Hazardous Locations: ATEX Class I Division 2 IECEx
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
MTBF
- Time: 1,876,185 hrs
- Standards: Telcordia (Bellcore), GB
