Description

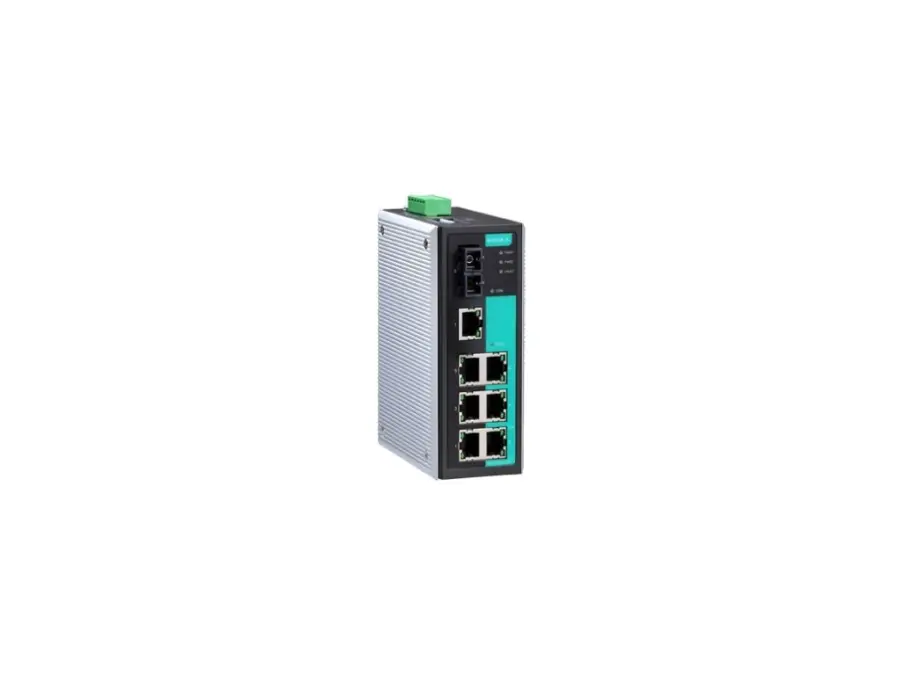

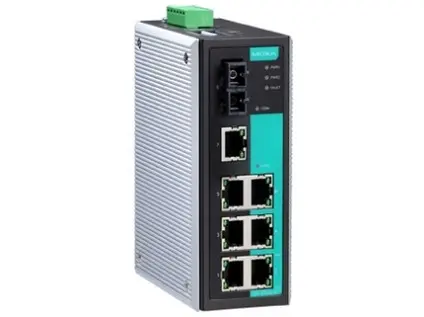

EDS-308-M-SC-T is a unmanaged industrial Ethernet switch in the EDS-308 Series. Unmanaged Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with SC connector, relay output warning, -40 to 75°C operating temperature
Specifications:
- 10/100BaseT(X) Ports (RJ45 connector): 7 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
- 100BaseFX Ports (multi-mode SC connector): 1
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Details: See www.moxa.com/warranty
- Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
- Ethernet Interface: Port break alarm
- Hazardous Locations: ATEX Class I Division 2
- Optical Fiber: | 100BaseFX Multi-Mode | Single-Mode (40 km) | Single-Mode (80 km) Fiber Cable Type | OM1 | 50/125 µm | G.652 | G.652 800 MHz x km Typical Distance | 4 km | 5 km | 40 km | 80 km Wavelength | Typical (nm) | 1300 | 1310 | 1550 TX Range (nm) | 1260 to 1360 | 1280 to 1340 | 1530 to 1570 RX Range (nm) | 1100 to 1600 | 1100 to 1600 | 1100 to 1600 Optical Power | TX Range (dBm) | -10 to -20 | 0 to -5 | 0 to -5 RX Range (dBm) | -3 to -32 | -3 to -34 | -3 to -34 Link Budget (dB) | 12 | 29 | 29 Dispersion Penalty (dB) | 3 | 1 | 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
- Packet Buffer Size: 768 K
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Input Current: 0.11 A @ 24 VDC
- Input Voltage: Redundant dual inputs 12/24/48 VDC
- Operating Voltage: 9.6 to 60 VDC
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Housing: Metal
- Installation: DIN-rail mounting Wall mounting (with optional kit)
- MAC Table Size: 2 kbits
- Weight: 790 g (1.75 lb)
- Processing Type: Store and Forward
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
- Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC
- Connection: 1 removable 6-contact terminal block(s)
- Freefall: IEC 60068-2-32
- IP Rating: IP30
- Maritime: DNV
- Safety: UL 508 UL 60950-1 CSA C22.2 No. 60950-1 EN 62368 (LVD)
- Time: 2,646,710 hrs
- Warranty Period: 5 years
