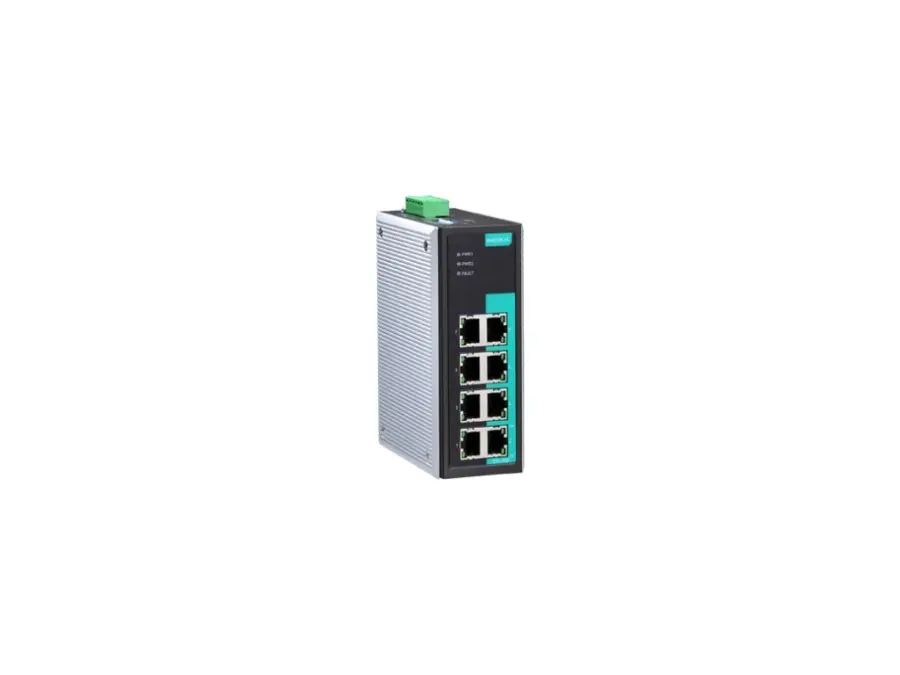

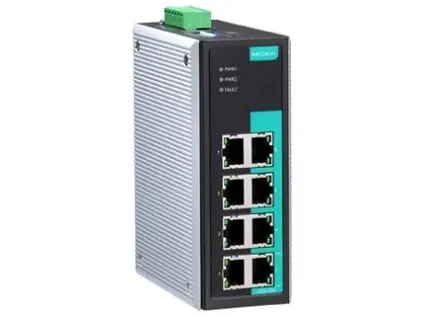

EDS-308-T

EDS-308-T is a unmanaged industrial Ethernet switch in the EDS-308 Series. Unmanaged Ethernet switch with 8 10/100BaseT(X) ports, relay output warning, -40 to 75°C operating temperature

Specifications:

• 10/100BaseT(X) Ports (RJ45 connector): 8 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Details: See www.moxa.com/warranty
• Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
• Ethernet Interface: Port break alarm
• Hazardous Locations: ATEX Class I Division 2
• Optical Fiber: | 100BaseFX Multi-Mode | Single-Mode (40 km) | Single-Mode (80 km) Fiber Cable Type | OM1 | 50/125 µm | G.652 | G.652 800 MHz x km Typical Distance | 4 km | 5 km | 40 km | 80 km Wavelength | Typical (nm) | 1300 | 1310 | 1550 TX Range (nm) | 1260 to 1360 | 1280 to 1340 | 1530 to 1570 RX Range (nm) | 1100 to 1600 | 1100 to 1600 | 1100 to 1600 Optical Power | TX Range (dBm) | -10 to -20 | 0 to -5 | 0 to -5 RX Range (dBm) | -3 to -32 | -3 to -34 | -3 to -34 Link Budget (dB) | 12 | 29 | 29 Dispersion Penalty (dB) | 3 | 1 | 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
• Packet Buffer Size: 768 K
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Input Current: 0.07 A @ 24 VDC
• Input Voltage: Redundant dual inputs 12/24/48 VDC
• Operating Voltage: 9.6 to 60 VDC
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported
• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Housing: Metal
• Installation: DIN-rail mounting Wall mounting (with optional kit)
• MAC Table Size: 2 kbits
• Weight: 790 g (1.75 lb)
• Processing Type: Store and Forward
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
• Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC
• Connection: 1 removable 6-contact terminal block(s)
• Freefall: IEC 60068-2-32
• IP Rating: IP30
• Maritime: DNV
• Safety: UL 508 UL 60950-1 CSA C22.2 No. 60950-1 EN 62368 (LVD)
• Time: 2,972,907 hrs
• Warranty Period: 5 years
