Description

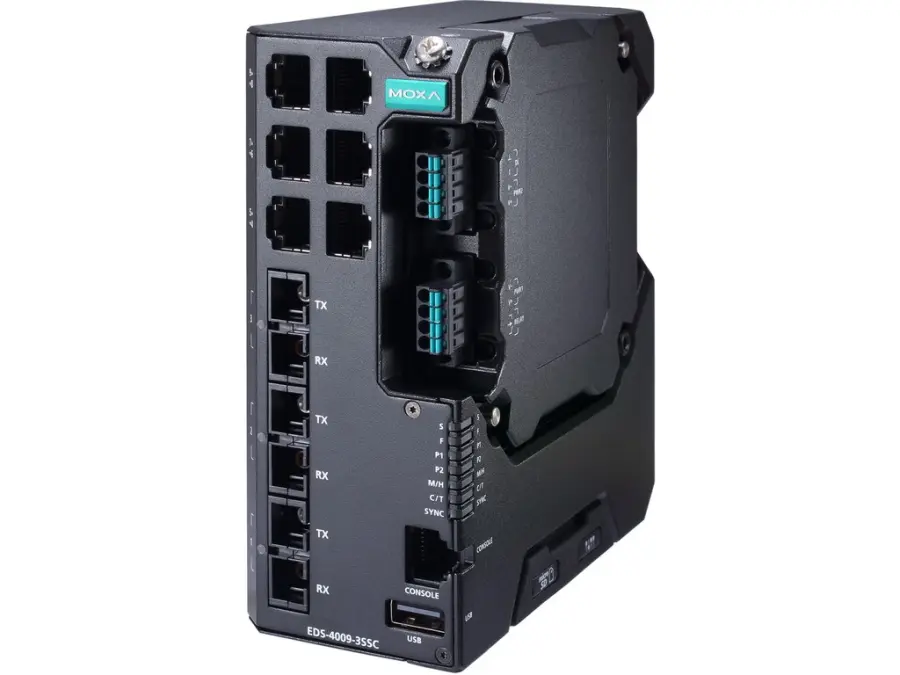

EDS-4009-3SSC-HV is a managed Layer 2 industrial Ethernet switch in the EDS-4009 Series. Managed Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX single-mode ports with SC connectors, single power supply 110/220 VAC/VDC, -10 to 60°C operating temperature
Specifications:
- 10/100BaseT(X) Ports (RJ45 connector): 6 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
- 100BaseFX Ports (single-mode SC connector): 3
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
- Details: See www.moxa.com/warranty
- Digital Input Channels: 1
- Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
- Dimensions: 55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in)
- DIP Switches: Turbo Ring, Master, Coupler, Reserve
- Filter: GMRP GVRP GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP Querier
- LED Indicators: PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
- Max. No. of VLANs: 256
- Optical Fiber: | 100BaseFX Multi-Mode | Single-Mode Fiber Cable Type | OM1 | 50/125 µm | G.652 800 MHz x km Typical Distance | 4 km | 5 km | 40 km Wavelength | Typical (nm) | 1300 | 1310 TX Range (nm) | 1260 to 1360 | 1280 to 1340 RX Range (nm) | 1100 to 1600 | 1100 to 1600 Optical Power | TX Range (dBm) | -10 to -20 | 0 to -5 RX Range (dBm) | -3 to -32 | -3 to -34 Link Budget (dB) | 12 | 29 Dispersion Penalty (dB) | 3 | 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
- Railway: EN 50121-4
- USB Connector: USB Type A (Reserved)
- VLAN ID Range: VID 1 to 4094
- Jumbo Frame Size: 9.216 KB
- Packet Buffer Size: 1 MB
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- IGMP Groups: 512
- Industrial Cybersecurity: IEC 62443-4-2 Security Level 2
- Industrial Protocols: EtherNet/IP Modbus TCP PROFINET IO Device
- MIB: P-BRIDGE MIB Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB RMON MIB Groups 1, 2, 3, 9
- Protocols: IPv4/IPv6 TCP/IP UDP ICMP ARP RARP TFTP DNS NTP Client DHCP Server DHCP Client 802.1X QoS HTTPS HTTP Telnet SMTP SNMPv1/v2c/v3 RMON Syslog
- Redundancy Protocols: STP RSTP Turbo Ring v2 Turbo Chain Ring Coupling Dual-Homing Link Aggregation MRP MSTP
- Security: Broadcast storm protection Rate Limit Trust access control Static Port Lock MAC Sticky HTTPS/SSL SSH RADIUS TACACS+ Access control list Login and Password Policy DHCP Snooping
- Input Current: 110-220 VAC, 50-60 Hz, 0.30-0.20 A110-220 VDC, 0.30-0.20 A
- Input Voltage: 110/220 VDC/VAC Single input
- Operating Voltage: 88 to 300 VDC, 85 to 264 VAC
- Overload Current Protection: Supported
- Power Consumption (Max.): 12.34 W
- Power Substation: IEC 61850-3 IEEE 1613 Class 1
- Pre-installed Power Module: PWR-105-HV-I
- Reverse Polarity Protection: Supported
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Housing: Metal
- Installation: DIN-rail mounting Wall mounting (with optional kit)
- MAC Table Size: 16 K
- Weight: 932 g (2.05 lb)
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authentication
- Management: IPv4/IPv6 Flow control Back Pressure Flow Control DHCP Server/Client ARP RARP LLDP Fiber check Port Mirroring (SPAN, RSPAN) Linkup Delay SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON TFTP SFTP HTTP HTTPS Telnet Syslog Private MIB
- Time Management: SNTP NTP Server/Client NTP Authentication IEEE 1588v2 PTP (hardware-based) Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
- Alarm Contact Channels: 1, Relay output with current carrying capacity of 1 A @ 24 VDC
- Buttons: Reset button
- Connection: 2 removable 4-contact terminal block(s)
- Freefall: IEC 60068-2-32
- IP Rating: IP40
- Note: The EDS-4009 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.For example:EDS-4009-T + PWR-100–LV = EDS-4009-LV-TEDS-4009-T + PWR-105-HV-I = EDS-4009-HV-TIf you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4009–LV-Twith the PWR-105–HV-I, refer to the specifications of the EDS-4009–HV-T.
- Priority Queues: 4
- Safety: UL 61010-2-201 EN 62368-1 (LVD)
- Time: 482,263 hrs
- Traffic Control: NEMA TS2
- Warranty Period: 5 years
