Description

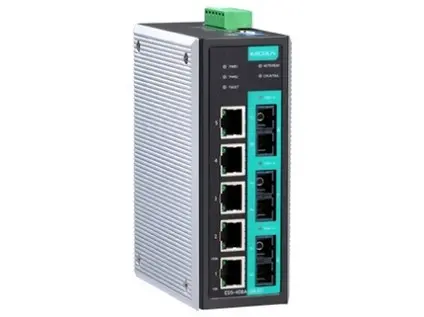

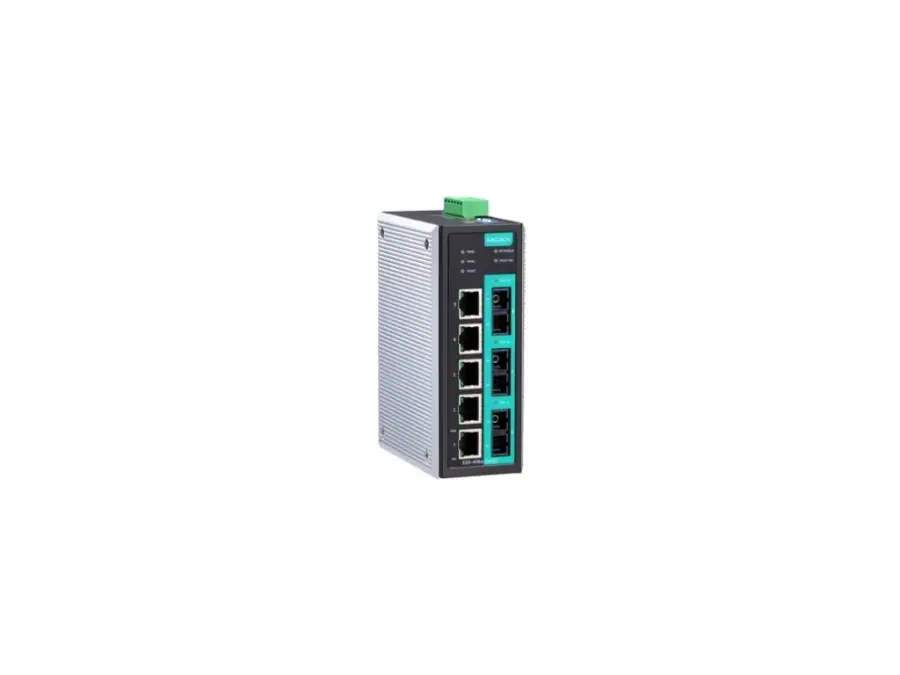

EDS-408A-1M2S-SC is a managed Layer 2 industrial Ethernet switch in the EDS-408A Series. Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, 1 100BaseFX multi-mode port, 2 100BaseFX single-mode ports with SC connectors, 0 to 60°C operating temperature
Specifications:
- 10/100BaseT(X) Ports (RJ45 connector): 5 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
- 100BaseFX Ports (multi-mode SC connector): 1
- 100BaseFX Ports (single-mode SC connector): 2
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Console Port: RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
- Details: See www.moxa.com/warranty
- Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
- Ethernet Interface: Turbo Ring, Master, Coupler, Reserve
- Filter: 802.1Q VLAN GMRP GVRP IGMP v1/v2 Port-based VLAN
- Max. No. of VLANs: 64
- Optical Fiber: | 100BaseFX Multi-Mode | Single-Mode Fiber Cable Type | OM1 | 50/125 µm | G.652 800 MHz x km Typical Distance | 4 km | 5 km | 40 km Wavelength | Typical (nm) | 1300 | 1310 TX Range (nm) | 1260 to 1360 | 1280 to 1340 RX Range (nm) | 1100 to 1600 | 1100 to 1600 Optical Power | TX Range (dBm) | -10 to -20 | 0 to -5 RX Range (dBm) | -3 to -32 | -3 to -34 Link Budget (dB) | 12 | 29 Dispersion Penalty (dB) | 3 | 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
- Railway: EN 50121-4
- VLAN ID Range: VID 1 to 4094
- Packet Buffer Size: 1 Mbits
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- IGMP Groups: 256
- Industrial Protocols: EtherNet/IP Modbus TCP
- MIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB
- Redundancy Protocols: RSTP STP Turbo Chain Turbo Ring v1/v2
- Security: Broadcast storm protection HTTPS/SSL NTP authentication Port Lock SNMPv3 SSH Trust access control
- Input Current: 0.73 @ 12 VDC 0.35 @ 24 VDC0.18 @ 48 VDC
- Input Voltage: 12/24/48 VDC Redundant dual inputs
- Operating Voltage: 9.6 to 60 VDC
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Housing: Metal
- Installation: DIN-rail mounting Wall mounting (with optional kit)
- MAC Table Size: 8 K
- Weight: 890 g (1.97 lb)
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol
- Management: Back Pressure Flow Control BOOTP DHCP Option 66/67/82 DHCP Server/Client Flow control IPv4/IPv6 LLDP Port Mirror RARP RMON SMTP SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP
- Time Management: NTP Server/Client SNTP
- Alarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDC
- Connection: 1 removable 6-contact terminal block(s)
- Freefall: IEC 60068-2-31
- IP Rating: IP30
- Priority Queues: 4
- Safety: UL 508
- Time: 1,253,072 hrs
- Traffic Control: EDS-408A, EDS-408A-MM-SC/MM-ST/SS-SC/EIP/PN models: NEMA TS2
- Warranty Period: 5 years
