Description

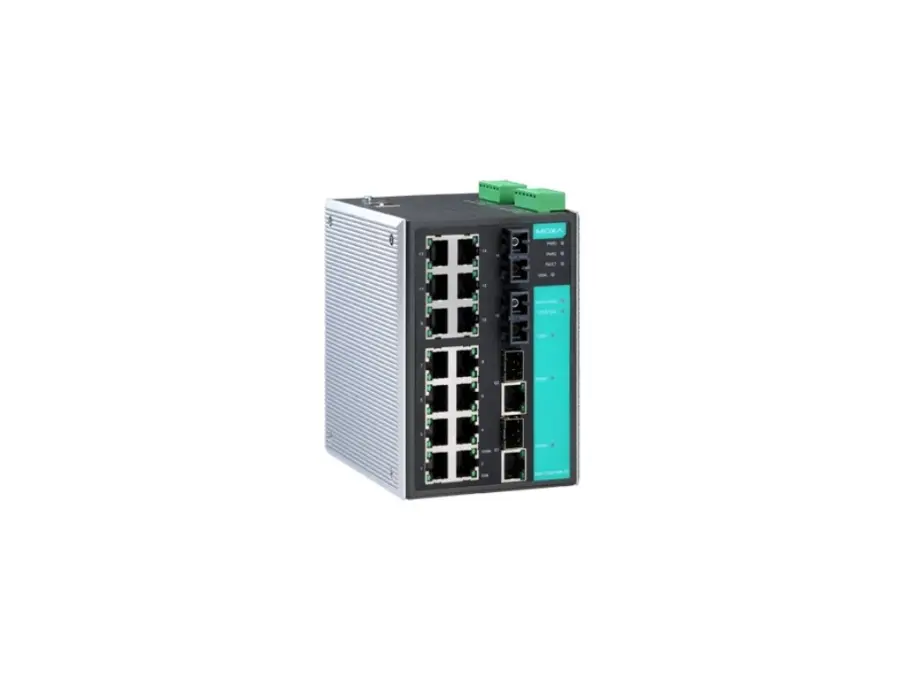

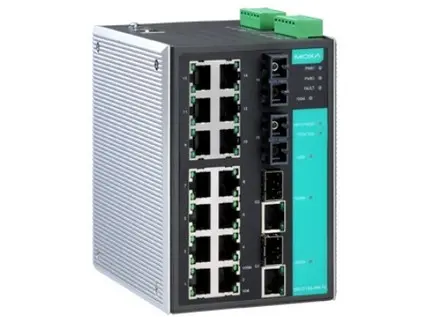

Industrial Managed Ethernet switch – Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, 2 combo 10/100/1000BaseT(X) or 1000BaseSFP slots for adding SFP-1G Series Gigabit Ethernet modules, 0 to 60°C operating temperature
Input/Output Interface
- Alarm Contact Channels: Resistive load: 1 A @ 24 VDC
- Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 14 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
- 100BaseFX Ports (multi-mode SC connector): 2
- Combo Ports (10/100/1000BaseT(X) or 1000BaseSFP): 2
- Optical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km Wavelength Typical (nm) 1300 1310 TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 Link Budget (dB) 12 29 Dispersion Penalty (dB) 3 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.1X for authentication IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
- Filter: 802.1Q VLAN Port-based VLAN IGMP v1/v2 GVRP GMRP
- Industrial Protocols: EtherNet/IP Modbus TCP
- Management: IPv4/IPv6 SNMPv1/v2c/v3 LLDP Port Mirror Back Pressure Flow Control BOOTP DDM DHCP Option 66/67/82 DHCP Server/Client Flow control RARP RMON SMTP SNMP Inform Syslog Telnet TFTP
- MIB: MIB-II Bridge MIB Ethernet-like MIB P-BRIDGE MIB Q-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB
- Redundancy Protocols: STP MSTP RSTP LACP Link Aggregation Turbo Chain Turbo Ring v1/v2
- Security: HTTPS/SSL TACACS+ Port Lock RADIUS SSH Broadcast storm protection
- Time Management: NTP Server/Client SNTP
Switch Properties
- IGMP Groups: 256
- MAC Table Size: 8 K
- Max. No. of VLANs: 64
- Packet Buffer Size: 2 Mbits
- Priority Queues: 4
- VLAN ID Range: VID 1 to 4094
LED Interface
- LED Indicators: PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port),1000M (Gigabit port), MSTR/HEAD, CPLR/TAIL
Serial Interface
- Console Port: RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration
- Ethernet Interface: Turbo Ring, Master, Coupler, Reserve
Power Parameters
- Connection: 2 removable 6-contact terminal block(s)
- Input Current: 0.52 A @ 24 VDC
- Input Voltage: 24 VDC Redundant dual inputs
- Operating Voltage: 12 to 45 VDC
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- Housing: Metal
- IP Rating: IP30
- Dimensions: 94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in)
- Weight: 1630 g (3.60 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Safety: EN 62368-1 UL 60950-1 UL 508
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Hazardous Locations: ATEX Class I Division 2
- Vibration: IEC 60068-2-6
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-31
- Maritime: DNV NK LR
MTBF
- Time: 250,966 hrs
- Standards: Telcordia (Bellcore), GB
