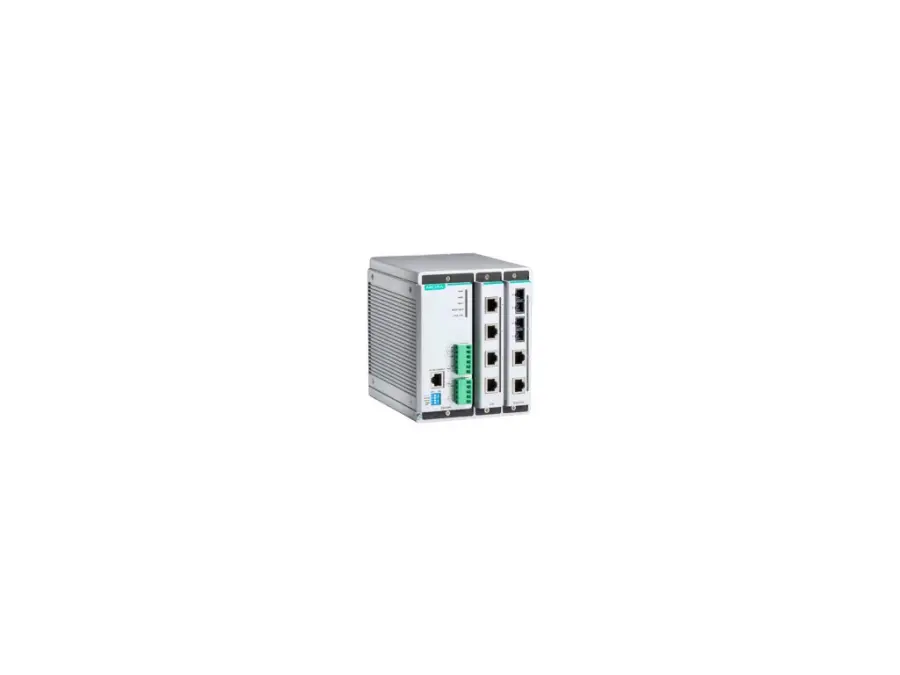

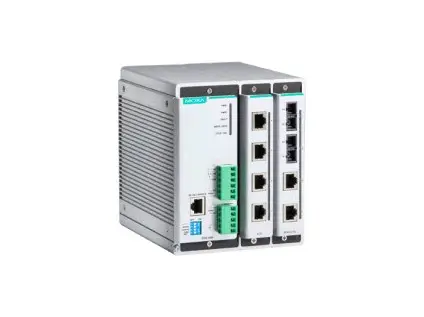

# EDS-608

Industrial Managed Ethernet switch, Ports: 2 slots for any combination of 4-port interface modules,, Temp: 0 to 60°C (32 to 140°F), Power: 12/24/48 VDC Redundant dual inputs

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180404113070 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Managed Ethernet switch – Compact managed Ethernet switch system with 2 slots for 4-port Fast Ethernet interface modules, for a total of up to 8 ports, 0 to 60°C operating temperatureInput/Output InterfaceDigital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mAAlarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDCEthernet InterfaceModule: 2 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFXStandards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow controlEthernet Software FeaturesFilter: GMRP, GVRP, IGMP v1/v2 Port-based VLANIndustrial Protocols: EtherNet/IP Modbus TCPManagement: Back Pressure Flow Control BOOTP DHCP Option 66/67/82 DHCP Server/Client Flow control IPv4/IPv6 LLDP Port Mirror RARP, RMON, SMTP, SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTPMIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIBRedundancy Protocols: Link Aggregation MSTP, RSTP, STP Turbo Chain Turbo Ring v1/v2Security: Broadcast storm protection HTTPS/SSL Port Lock RADIUS, SSH, TACACS+Time Management: NTP Server/Client SNTPSwitch PropertiesIGMP Groups: 256MAC Table Size: 8 KMax. No. of VLANs: 64Packet Buffer Size: 1 MbitsPriority Queues: 4VLAN ID Range: VID 1 to 4094LED InterfaceLED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAILSerial InterfaceConsole Port: RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)DIP Switch ConfigurationEthernet Interface: Turbo Ring, Master, Coupler, ReservePower ParametersConnection: 1 removable 6-contact terminal block(s)Input Voltage: 12/24/48 VDC Redundant dual inputsInput Current: 1.5 A @ 12 VDC Note: These are the input current ratings for the device with the maximum number of modules installed.Power Consumption (Max.): 18 W @ 12 VDC Note: These are the power consumption ratings for the device with the maximum number of modules installed.Overload Current Protection: SupportedReverse Polarity Protection: SupportedPhysical CharacteristicsIP Rating: IP30Dimensions: 125 x 151 x 157.4 mm (4.92 x 5.95 x 6.20 in)Weight: 1,950 g (4.30 lb)Installation: DIN-rail mounting Wall mounting (with optional kit)Environmental LimitsOperating Temperature: 0 to 60°C (32 to 140°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsFreefall: IEC 60068-2-32EMC: EN 55032/35 EN 61000-6-2/-6-4EMI: CISPR 32, FCC Par

## Soubory ke stažení

* [Katalog EDS-608_611_616_619_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/EDS-608_611_616_619_Series_ELVAC15.pdf)
* [Manual Moxa_Managed_Switches_UM_v8_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/Moxa_Managed_Switches_UM_v8_ELVAC15.pdf)
