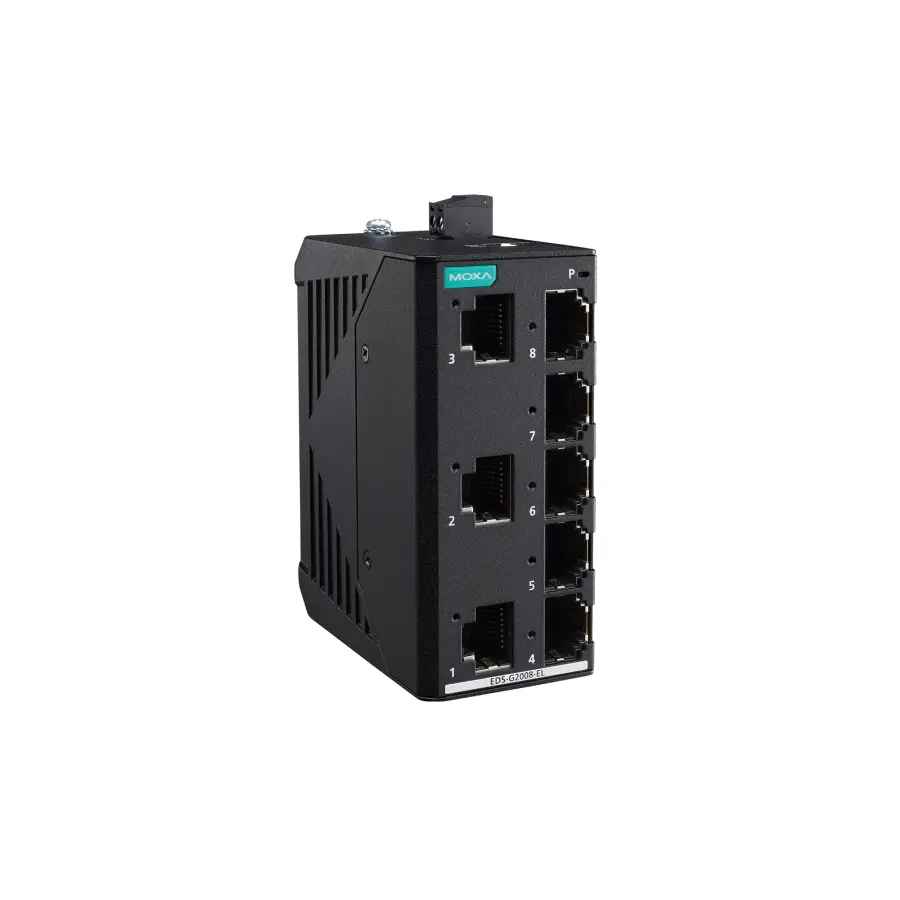

EDS-G2008-EL

Industrial Unmanaged Ethernet switch – Unmanaged full Gigabit Ethernet switch with 8 10/100/1000 BaseT(X) ports, 12/24/48 power input, metal housing, -10 to 60°C operating temperature

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 8
• 10/100BaseT(X) Ports (RJ45 connector): Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.1p for Class of Service IEEE 802.3x for flow control

Switch Properties

• Processing Type: Store and Forward
• MAC Table Size: 4 K
• Packet Buffer Size: 1.5 Mbits

DIP Switch Configuration

• Ethernet Interface: Quality of Service (QoS) Enabling the QoS DIP switch will also enable Multicast Filtering which will block LLDP & PROFINET PTCP-Delay traffic. , Broadcast Storm Protection (BSP)

Power Parameters

• Connector: 1 removable 2-contact terminal block(s)
• Input Current: 0.33 A (max.)
• Input Voltage: 12/24/48 VDC
• Operating Voltage: 9.6 to 60 VDC
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported

Physical Characteristics

• Installation: DIN-rail mounting Wall mounting (with optional kit)
• Weight: 180 g (0.4 lb)
• Housing: Metal
• Dimensions: 36 x 81 x 65 mm (1.42 x 3.19 x 2.56 in)

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Standards and Certifications

• Safety: UL 61010-2-201 EN IEC 62368-1
• EMC: EN 55032/35 EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6 IEC 60068-2-64
• Freefall: ISTA 1A (with package)

MTBF

• Time: 3,404,784 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
