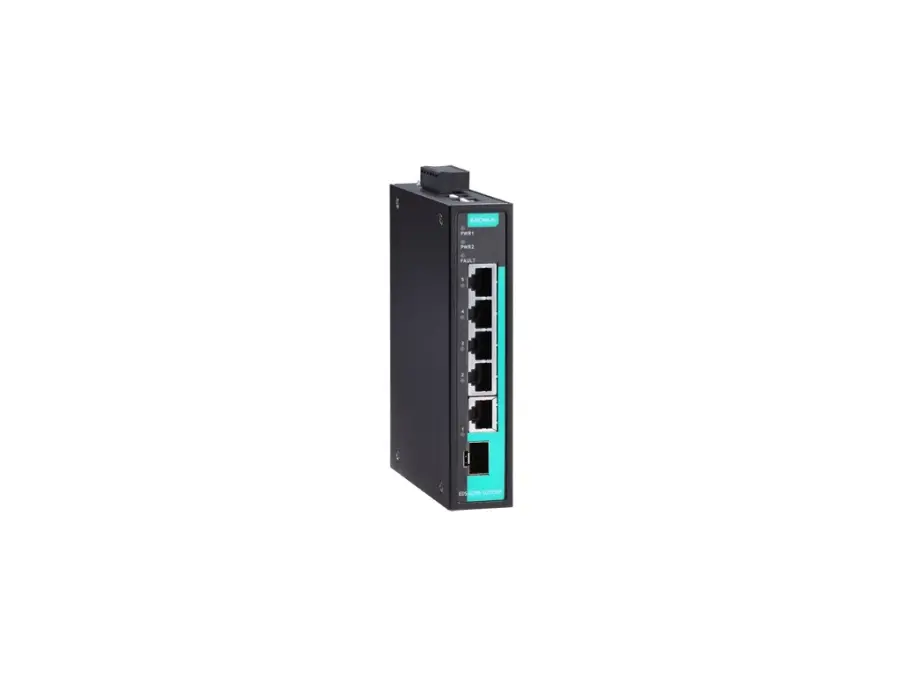

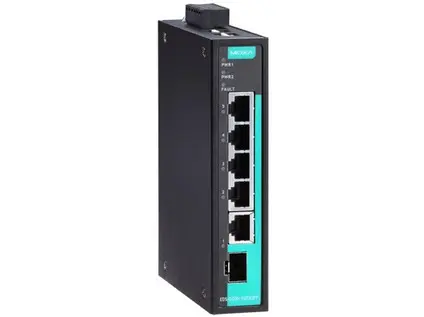

EDS-G205-1GTXSFP-T

Industrial Unmanaged Ethernet switch – Unmanaged full Gigabit Ethernet switch with 4 10/100/1000BaseT(X) ports, 1 combo 10/100/1000BaseT(X) or 100/1000BaseSFP port, -40 to 75°C operating temperature

Input/Output Interface

• Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 4 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
• Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 1
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX IEEE 802.3az for Energy-Efficient Ethernet

Switch Properties

• MAC Table Size: 8 K
• Packet Buffer Size: 1 Mbits
• Jumbo Frame Size: 10 KB
• Processing Type: Store and Forward

DIP Switch Configuration

• Ethernet Interface: Broadcast storm protection Jumbo Frame IEEE 802.3az energy saving 100/1000 SFP speed switching Port break alarm

Power Parameters

• Connection: 1 removable 6-contact terminal block(s)
• Input Voltage: 12/24/48 VDC Redundant dual inputs
• Operating Voltage: 9.6 to 60 VDC
• Reverse Polarity Protection: Supported
• Input Current: 380 mA

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)
• Weight: 290 g (0.64 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: UL 508 EN 62368-1 (LVD)
• EMC: EN 55032/35 EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Hazardous Locations: ATEX Class I Division 2
• Railway: EN 50121-4
• Vibration: IEC 60068-2-6
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Maritime: ABS, LR, NK, DNV

MTBF

• Time: 2,823,446 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
