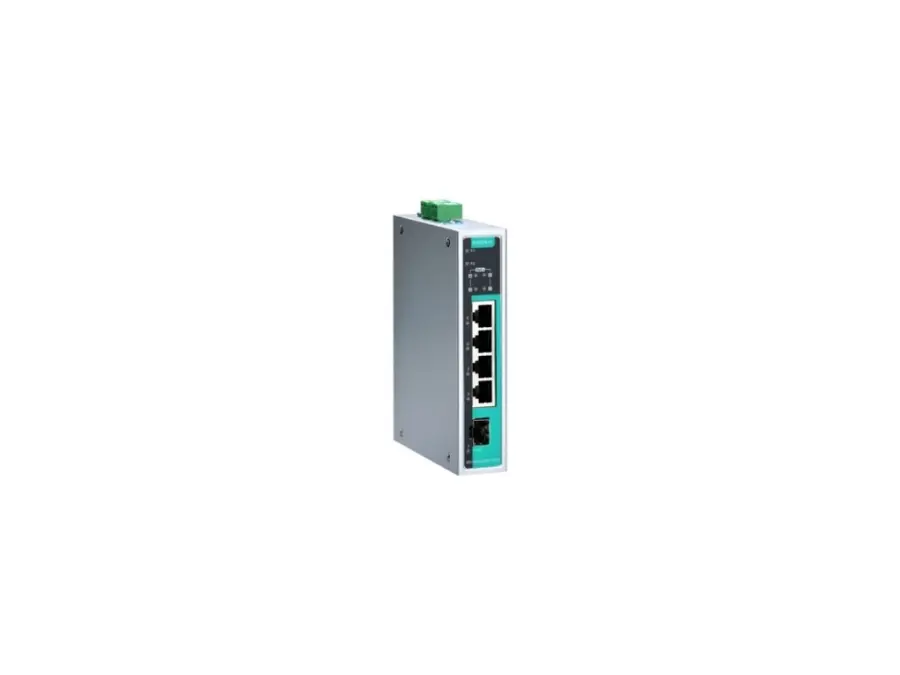

EDS-G205A-4PoE-1GSFP

Industrial Managed PoE Ethernet switch – Unmanaged Gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseX (SFP slot) port, 0 to 60°C operating temperature

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 4 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
• 100/1000BaseSFP Ports: 1
• PoE Ports (10/100/1000BaseT(X), RJ45 connector): 4
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX
• PoE Pinout: V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)

Switch Properties

• MAC Table Size: 8 K
• Packet Buffer Size: 1 Mbits
• Processing Type: Store and Forward
• Jumbo Frame Size: 10 KB

Power Parameters

• Connection: 2 removable 2-contact terminal block(s)
• Input Voltage: 12/24/48 VDC Redundant dual inputs
• Operating Voltage: 12 to 57 VDC
• Overload Current Protection: Supported
• Power Consumption (Max.): Max. 11.73 W full loading without PDs’ consumption
• Reverse Polarity Protection: Supported
• Input Current: 5.65 A @ 24 VDC
• Power Budget: 62 W (max.) @ 12 VDC for total PD consumption; 36 W (max.) for each PoE port 120 W (max.) @ 24 VDC for total PD consumption; 36 W (max.) for each PoE port 144 W (max.) @ 48 VDC for total PD consumption; 36 W (max.) for each PoE port

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)
• Weight: 300 g (0.66 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: UL 508 EN 62368-1 (LVD)
• EMC: EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Railway: EN 50121-4
• Vibration: IEC 60068-2-6
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32

MTBF

• Time: 1,549,997 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
