Description

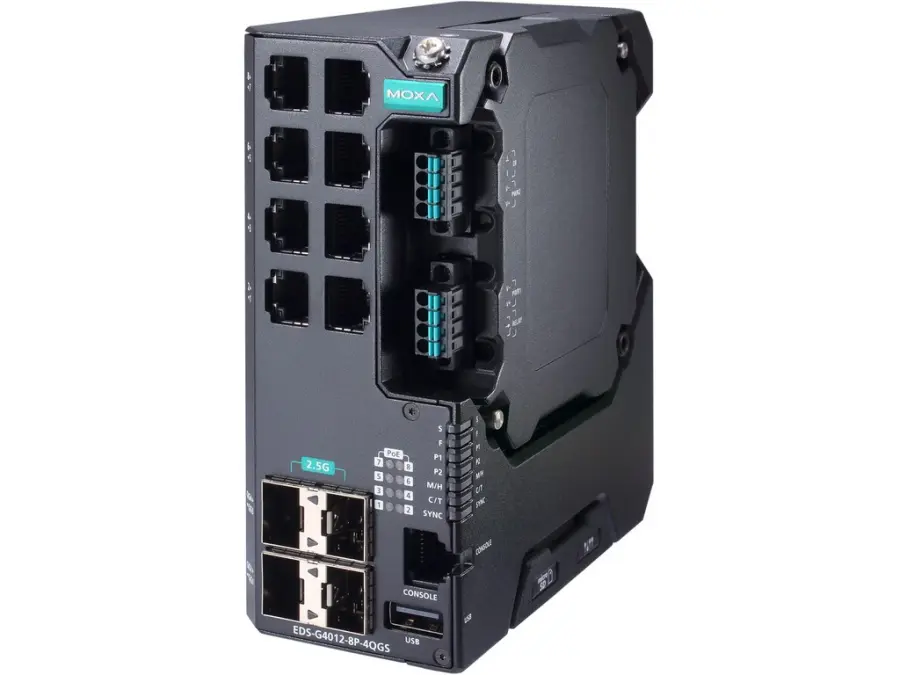

EDS-G4012-8P-4QGS-LVB is a managed Layer 2 industrial Ethernet switch in the EDS-G4012 Series. Managed Ethernet switch with 8 10/100/1000BaseT(X) ports with 802.3bt PoE, 4 1000/2500BaseSFP ports, dual power supply, 12/24/48 VDC, -10 to 60°C operating temperature
Specifications:
- 1000/2500BaseSFP Ports: 4
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
- Details: See www.moxa.com/warranty
- Digital Input Channels: 1
- Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
- Dimensions: 55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in)
- DIP Switches: Turbo Ring, Master, Coupler, Reserve
- Filter: GMRP GVRP GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP Querier
- LED Indicators: PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
- Max. No. of VLANs: 256
- Max. PoE Power Output per Port: 90 W
- PoE Ports (10/100/1000BaseT(X), RJ45 connector): 8
- Railway: EN 50121-4
- USB Connector: USB Type A (Reserved)
- VLAN ID Range: VID 1 to 4094
- Jumbo Frame Size: 9.216 KB
- Packet Buffer Size: 1 MB
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- IGMP Groups: 512
- Industrial Cybersecurity: IEC 62443-4-2 Security Level 2
- Industrial Protocols: EtherNet/IP Modbus TCP PROFINET IO Device
- MIB: P-BRIDGE MIB Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB RMON MIB Groups 1, 2, 3, 9
- Protocols: IPv4/IPv6 TCP/IP UDP ICMP ARP RARP TFTP DNS NTP Client DHCP Server DHCP Client 802.1X QoS HTTPS HTTP Telnet SMTP SNMPv1/v2c/v3 RMON Syslog
- Redundancy Protocols: STP RSTP Turbo Ring v2 Turbo Chain Ring Coupling Dual-Homing MRP Link Aggregation MSTP
- Security: Broadcast storm protection Rate Limit Trust access control Static Port Lock MAC Sticky HTTPS/SSL SSH RADIUS TACACS+ Login and Password Policy Access control list DHCP Snooping
- Input Current: 12/48 VDC, 7.46/4.27 A or 24 VDC, 7.26 A
- Input Voltage: 12/24/48 VDC Redundant dual inputs
- Operating Voltage: 12 to 57 VDC (>52 VDC for PoE+ output recommended)
- Overload Current Protection: Supported
- Power Consumption (Max.): Without PoE: 17.96 WWith PoE:Max. 180 W for total PD power consumption @ 48 VDC input;Max. 150 W for total PD power consumption @ 24 VDC input;Max. 62 W for total PD power consumption @ 12 VDC input
- Power Substation: IEC 61850-3 IEEE 1613 Class 1
- Pre-installed Power Module: PWR-103-LV-VB-I
- Reverse Polarity Protection: Supported
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Housing: Metal
- Installation: DIN-rail mounting Wall mounting (with optional kit)
- MAC Table Size: 16 K
- Weight: 972 g (2.14 lb)
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3bz for 2.5GBaseX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authentication
- Management: IPv4/IPv6 Flow control Back Pressure Flow Control DHCP Server/Client ARP RARP LLDP Port Mirroring (SPAN, RSPAN) Linkup Delay SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON TFTP SFTP HTTP HTTPS Telnet Syslog Private MIB Fiber check
- Time Management: SNTP NTP Server/Client NTP Authentication IEEE 1588v2 PTP (hardware-based) Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
- Alarm Contact Channels: 1, Relay output with current carrying capacity of 1 A @ 24 VDC
- Buttons: Reset button
- Connection: 2 removable 4-contact terminal block(s)
- Freefall: IEC 60068-2-32
- IP Rating: IP40
- Maritime: LR ABS DNV NK
- Note: The EDS-G4012 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.For example:EDS-G4012-4GC-T + PWR-100–LV = EDS-G4012-4GC-LV-TEDS-G4012-4GC-T + PWR-105-HV-I = EDS-G4012-4GC-HV-TIf you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4012-4GC-LV-T with the PWR-105–HV-I, refer to the specifications of the EDS-G4012-4GC-HV-T.
- Priority Queues: 4
- Safety: UL 61010-2-201 EN 62368-1 (LVD)
- Time: 759,924 hrs
- Traffic Control: NEMA TS2
- Warranty Period: 5 years
