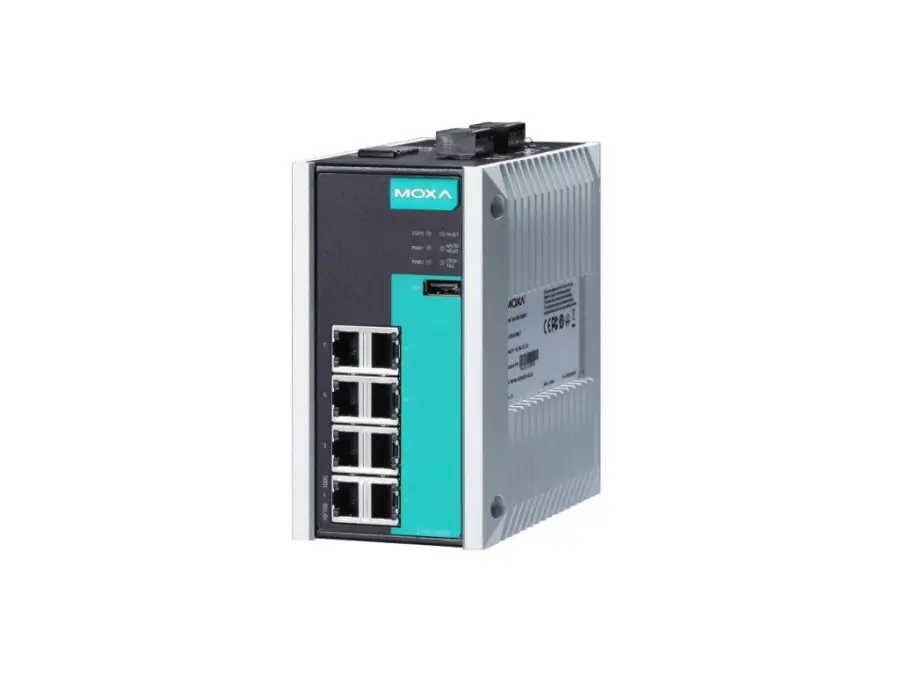

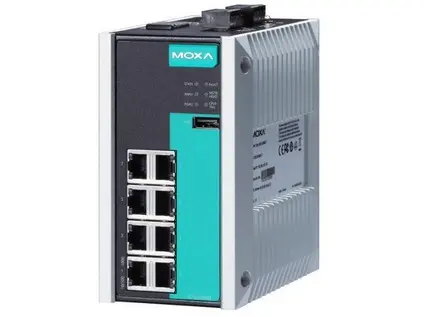

EDS-G508E

Industrial Managed Ethernet switch – 8-port full Gigabit managed Ethernet switch with 8 10/100/1000BaseT(X) ports, -10 to 60°C operating temperature

Input/Output Interface

• Alarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDC
• Buttons: Reset button
• Digital Input Channels: 1
• Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 8 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP

Ethernet Software Features

• Filter: 802.1Q VLAN BPDU Filter BPDU Guard GMRP, GVRP, IGMP v1/v2/v3 Port-based VLAN
• Industrial Protocols: EtherNet/IP Modbus TCP, PROFINET, IO Device
• Management: LLDP Back Pressure Flow Control BOOTP Port Mirror DHCP Option 66/67/82 DHCP Server/Client Fiber check Flow control IPv4/IPv6 RARP, RMON, SCP, SMTP SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP
• MIB: Ethernet-like MIB MIB-II Bridge MIB P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIB
• Redundancy Protocols: Link Aggregation MRP, MSTP, RSTP, STP Turbo Chain Turbo Ring v1/v2
• Security: Broadcast storm protection HTTPS/SSL TACACS+ SNMPv3 MAB authentication Sticky MAC NTP authentication MAC ACL Port Lock RADIUS, SSH, SMTP with TLS
• Time Management: NTP Server/Client SNTP

Switch Properties

• IGMP Groups: 2048
• Jumbo Frame Size: 9.6 KB
• MAC Table Size: 8 K
• Max. No. of VLANs: 256
• Packet Buffer Size: 4 Mbits
• Priority Queues: 4
• VLAN ID Range: VID 1 to 4094

USB Interface

• Storage Port: USB Type A

LED Interface

• LED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), MSTR/HEAD, CPLR/TAIL

Serial Interface

• Console Port: USB-serial console (Type B connector)

DIP Switch Configuration

• DIP Switches: Turbo Ring, Master, Coupler, Reserve

Power Parameters

• Connection: 2 removable 4-contact terminal block(s)
• Input Current: 0.28 A @ 24 VDC
• Input Voltage: 12/24/48/-48 VDC Redundant dual inputs
• Operating Voltage: 9.6 to 60 VDC
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)
• Weight: 1440 g (3.18 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: UL 508
• EMC: EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Hazardous Locations: ATEX Class I Division 2
• Power Substation: IEC 61850-3 IEEE 1613
• Railway: EN 50121-4
• Traffic Control: NEMA TS2
• Vibration: IEC 60068-2-6
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Maritime: DNV, LR, ABS, NK

MTBF

• Time: 814,608 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
