Description

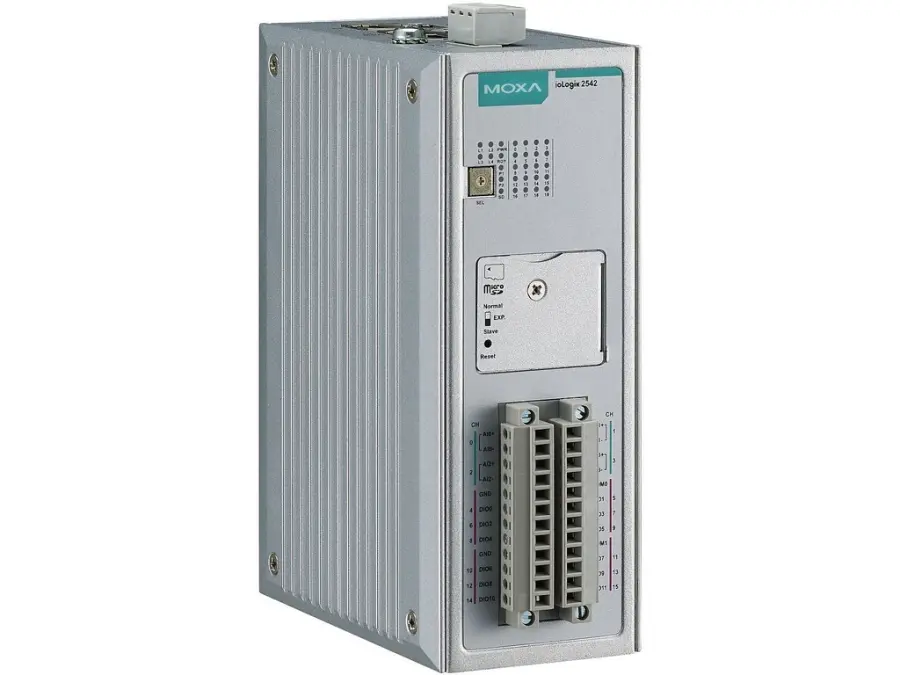

Serial communication device – Universal controller, 8 DIs, 8 DIOs, Click&Go Plus, -10 to 60°C operating temperature
Memory
- microSD Slot: Up to 32 GB (SD 2.0 compatible) Note: For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.
Control Logic
Input/Output Interface
- Digital Input Channels: 8
- Configurable DIO Channels (by software): 8
- Buttons: Reset button
- Isolation: 3k VDC or 2k Vrms
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- Sensor Type: Dry contact Wet contact (NPN or PNP)
- I/O Mode: DI or event counter
- Dry Contact: On: short to GND Off: open
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
- Counter Frequency: 2.5 kHz
- Digital Filtering Time Interval: Software configurable
- Points per COM: 8 channels
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- I/O Type: Sink
- I/O Mode: DO or pulse output
- Current Rating: 500 mA per channel
- Pulse Output Frequency: 5 kHz (max.)
- DIO Output Leakage Current: < 1 mA @ 30 VDC
- Overcurrent Protection: 1.5 A per channel @ 25°C
- Over-temperature Shutdown: 175°C (typical), 150°C (min.)
- Over-voltage Protection: 45 VDC (typical)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 4, 1 MAC address
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Web Console (HTTP/HTTPS) Windows Utility (IOxpress)
- Industrial Protocols: CGI commands Modbus TCP Client (Master) Modbus TCP Server (Slave) Moxa AOPC (Active Tag) MXIO Library RESTful API SNMPv1/v2c/v3 SNMPv1/v2c Trap
- Management: BOOTP, IPv4, SMTP, TCP/IP, DHCP Client
- MIB: Device Settings MIB
- Security: HTTPS/SSL
- Time Management: SNTP
LED Interface
- LED Indicators: PWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15)
Serial Interface
- Baudrate: 300, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 bps
- Connector: 8-pin RJ45
- Data Bits: 5, 6, 7, 8
- Flow Control: None RTS/CTS XON/XOFF
- No. of Ports: 2
- Parity: None Even Odd
- Serial Standards: RS-232 RS-422 RS-485
- Stop Bits: 1, 2
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
- Industrial Protocols: Modbus RTU Master
Platform
- Real-time Clock (RTC): Real-time clock with capacitor backup
Power Parameters
- Power Connector: Screw-fastened Euroblock terminal
- No. of Power Inputs: 1
- Inpu
