Description

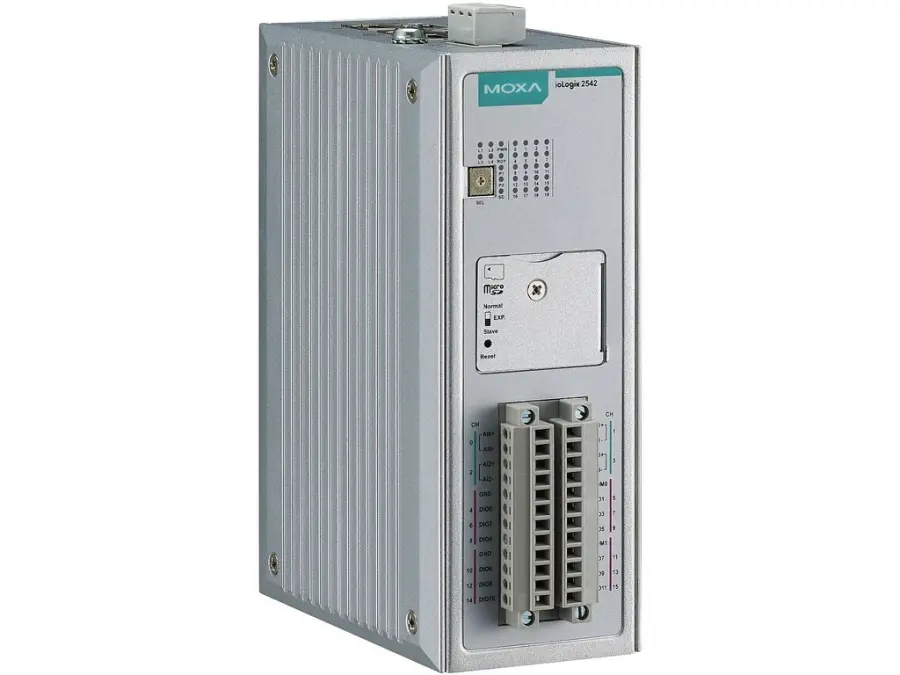

Serial converter – Universal controller, 4 AIs, 12 DIOs, Click&Go Plus, -10 to 60°C operating temperature
Memory
- microSD Slot: Up to 32 GB (SD 2.0 compatible) Note: For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.
Control Logic
Input/Output Interface
- Configurable DIO Channels (by software): 12
- Analog Input Channels: 4
- Buttons: Reset button
- Isolation: 3k VDC or 2k Vrms
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- Sensor Type: Dry contact Wet contact (NPN or PNP)
- I/O Mode: DI or event counter
- Dry Contact: On: short to GND Off: open
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
- Counter Frequency: 2.5 kHz
- Digital Filtering Time Interval: Software configurable
- Points per COM: 6 channels
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- I/O Type: Sink
- I/O Mode: DO or pulse output
- Current Rating: 500 mA per channel
- Pulse Output Frequency: 5 kHz (max.)
- DIO Output Leakage Current: < 1 mA @ 30 VDC
- Overcurrent Protection: 1.5 A per channel @ 25°C
- Over-temperature Shutdown: 175°C (typical), 150°C (min.)
- Over-voltage Protection: 45 VDC (typical)
Analog Inputs
- Connector: Screw-fastened Euroblock terminal
- I/O Mode: Voltage/Current
- I/O Type: Differential
- Converter Resolution: 16 bits
- Input Range: ±10 VDC 0 to 10 VDC 0 to 20 mA 4 to 20 mA 4 to 20 mA (with burn-out detection)
- Accuracy: ±0.1% FSR @ 25°C ±0.3% FSR @ -10 to 60°C
- Sampling Rate: All channels: 400 samples/sec Per channel: 100 samples/sec
- Built-in Resistor for Current Input: 120 ohms
- Input Impedance: 1 mega-ohms (min.)
- Over-Voltage Protection: -25 to +30 VDC (power on) -35 to +35 VDC (power off)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 4, 1 MAC address
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Web Console (HTTP/HTTPS) Windows Utility (IOxpress)
- Industrial Protocols: CGI commands Modbus TCP Client (Master) Modbus TCP Server (Slave) Moxa AOPC (Active Tag) MXIO Library RESTful API SNMPv1/v2c/v3 SNMPv1/v2c Trap
- Management: BOOTP, IPv4, SMTP, TCP/IP, DHCP Client
- MIB: Device Settings MIB
- Security: HTTPS/SSL
- Time Management: SNTP
LED Interface
- LED Indicators: PWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15)
Serial Interface
- Baudrate: 300, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 bps
- Connector: 8-pin RJ45
- Data Bits: 5, 6, 7, 8
- Flow Control: None RTS/CTS XON/XOFF
- No. of Ports: 2
- Parity: None Even Odd
