Description

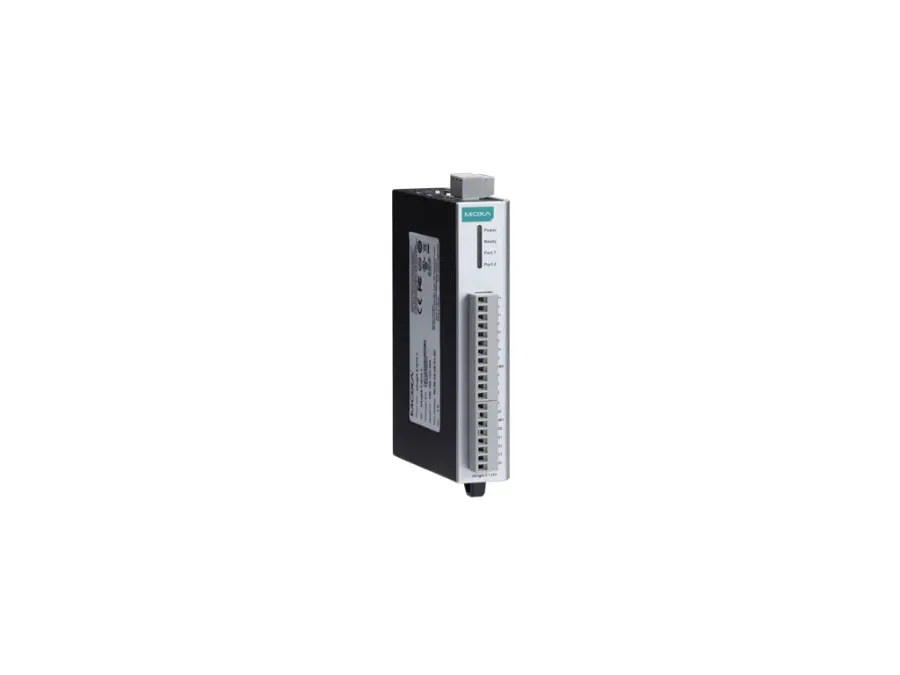

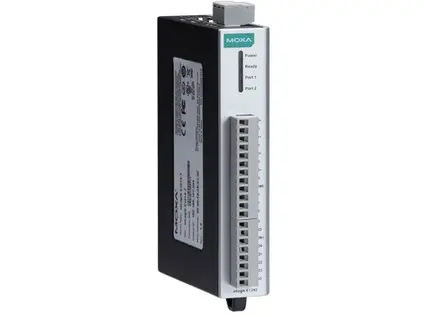

I/O module – Universal I/O, 4 AIs, 4 DIs, 4 DIOs, -40 to 75°C operating temperature
Input/Output Interface
- Digital Input Channels: 4
- Configurable DIO Channels (by jumper): 4
- Analog Input Channels: 4
- Isolation: 3k VDC or 2k Vrms
- Buttons: Reset button
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- Sensor Type: Dry contact Wet contact (NPN or PNP)
- I/O Mode: DI or event counter
- Dry Contact: On: short to GND Off: open
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
- Counter Frequency: 250 Hz
- Digital Filtering Time Interval: Software configurable
- Points per COM: 4 channels
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- I/O Type: Sink
- I/O Mode: DO or pulse output
- Current Rating: 200 mA per channel
- Pulse Output Frequency: 500 Hz (max.)
- Over-Current Protection: 2.6 A per channel @ 25°C
- Over-Temperature Shutdown: 175°C (typical), 150°C (min.)
- Over-Voltage Protection: 35 VDC
Analog Inputs
- Connector: Screw-fastened Euroblock terminal
- I/O Mode: Voltage/Current
- I/O Type: Differential
- Resolution: 16 bits
- Input Range: 0 to 10 VDC 0 to 20 mA 4 to 20 mA 4 to 20 mA (with burn-out detection)
- Accuracy: ±0.1% FSR @ 25°C ±0.3% FSR @ -10 to 60°C ±0.5% FSR @ -40 to 75°C
- Sampling Rate: 12 samples/sec per module (shared between up to 4 channels) If N channels are enabled, the sampling rate for each enabled channel = 12/N samples/sec.
- Built-in Resistor for Current Input: 120 ohms
- Input Impedance: 10 mega-ohms (min.)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 2, 1 MAC address (Ethernet bypass)
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Web Console (HTTP) Windows Utility (ioSearch) MCC Tool
- Industrial Protocols: Modbus TCP Server (Slave) Moxa AOPC (Active Tag) MXIO Library EtherNet/IP Adapter
- Management: RESTful API SNMPv1/v2c SNMPv1 Trap HTTP DHCP Client BOOTP IPv4 TCP/IP UDP
- MIB: Device Settings MIB
- Security: Access control list
Security Functions
- Authentication: Local database
LED Interface
- LED Indicators: Power, Ready, Port 1, Port 2
Modbus TCP
- Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
- Mode: Server (Slave)
- Max. No. of Client Connections: 10
EtherNet/IP
- Mode: Adapter
- Max. No. of Scanner Connections: 9 (for read-only), 1 (for read/write)
Power Parameters
- Power Connector: Screw-fastened Euroblock terminal
- No. of Power Inputs: 1
- Input Voltage: 12 to 36 VDC
- Power Consumption: 139 mA @ 24 VDC
Physical Characteristics
- Housing: Plastic
- Dimensions:
