Description

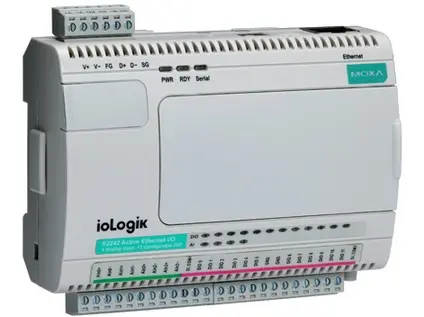

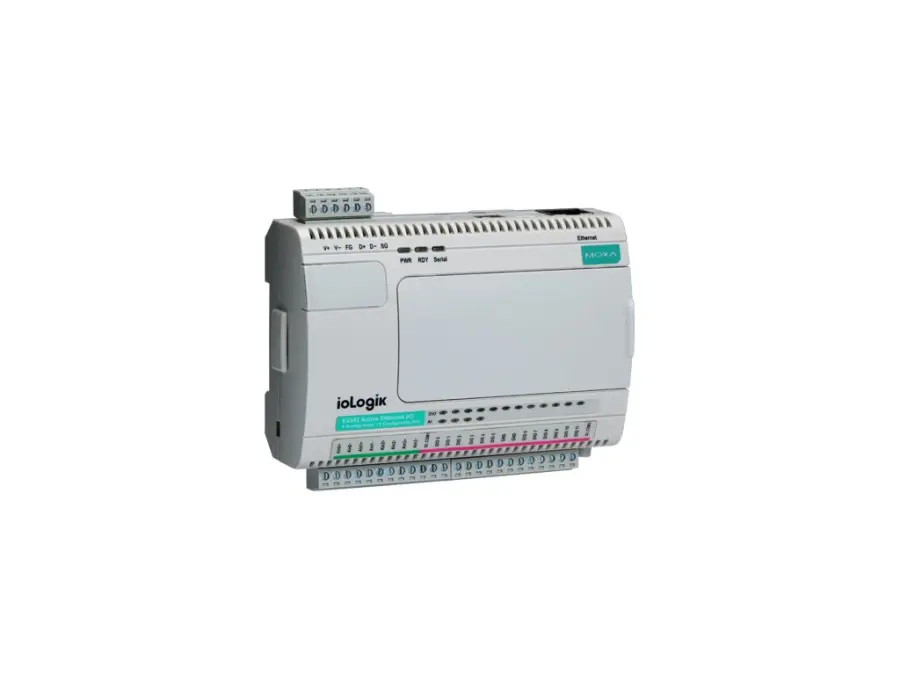

Serial communication device – Universal controller, 6 DIs, 6 relays, Click&Go, -40 to 75°C operating temperature
Control Logic
Input/Output Interface
- Digital Input Channels: 6
- Relay Channels: 6
- Buttons: Reset button
- Rotary Switch: 0 to 9
- Isolation: 3k VDC or 2k Vrms
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- Sensor Type: Dry contact Wet contact (NPN or PNP)
- I/O Mode: DI or event counter
- Dry Contact: On: short to GND Off: open
- Wet Contact (DI to GND): On: 0 to 3 VDC Off: 10 to 30 VDC
- Counter Frequency: 900 Hz
- Digital Filtering Time Interval: Software configurable
- Points per COM: 3 channels
Relays
- Connector: Screw-fastened Euroblock terminal
- Type: Form A (N.O.) power relay
- I/O Mode: Relay or pulse output
- Pulse Output Frequency: 0.3 Hz at rated load
- Contact Current Rating: Inductive load: 2 A @ 30 VDC, 250 VAC, 110 VAC Resistive load: 5 A @ 30 VDC, 250 VAC, 110 VAC
- Minimum Permitted Load: 1 A @ 5 VDC
- Contact Resistance: 100 milli-ohms (max.)
- Electrical Endurance: 100,000 operations @ 5 A resistive load
- Mechanical Endurance: 1,000,000 operations
- Note: Ambient humidity must be non-condensing and remain between 5 and 95%. The relays may malfunction when operating in high condensation environments below 0°C.
LED Interface
- LED Indicators: PWR, RDY, Serial, I/O Status
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Windows Utility (ioAdmin), Web Console (HTTP)
- Industrial Protocols: Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC (Active Tag), MXIO Library, CGI commands
- Management: BOOTP, IPv4, SMTP, DHCP Client, HTTP, TCP/IP
- MIB: Device Settings MIB
- Time Management: SNTP
Security Functions
- Authentication: Local database
- Encryption: HMAC
- Security Protocols: SNMPv3
Modbus TCP
- Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16
- Mode: Server (Slave)
Serial Interface
- Connector: Terminal block
- Serial Standards: RS-485
- No. of Ports: 1
- Baudrate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
- Parity: None
- Data Bits: 8
- Stop Bits: 1
- Flow Control: None
Serial Signals
- RS-485-2w: Data+, Data-, GND
Serial Software Features
- Industrial Protocols: Modbus RTU Master
Platform
- Real-time Clock (RTC): Real-time clock with battery backup
Power Parameters
- Power Connector: Screw-fastened Euroblock terminal
- No. of Power Inputs: 1
