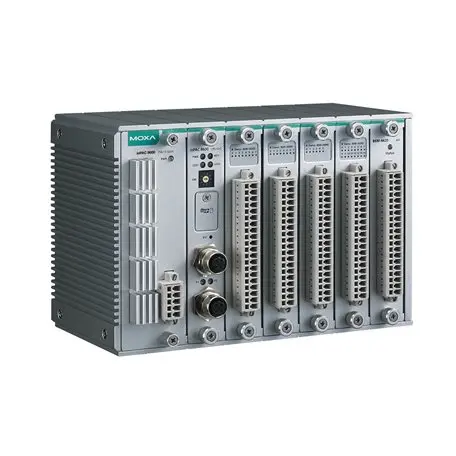

Serial communication device – Rugged controller, 1 GHz CPU, 2-port M12 Ethernet, IEC 61131-3, -40 to 75°C operating temperature
Computer
- CPU: 32-bit Cortex-A8 1 GHz CPU
- OS: Real-time Linux (PREEMPT_RT)
- Clock: Real-time clock with capacitor backup
Memory
- eMMC: 4 GB (1.7 GB reserved for user) for HW Rev. 1.0.18 GB (5.2 GB reserved for user) for HW Rev. 1.1.0
- SDRAM: 512 MB
- SPI-NVRAM: 128 KB
- microSD Slot: Up to 32 GB (SD 2.0 compatible) For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.
Control Logic
Ethernet Interface
- 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): M12 version: 2, 1 MAC address (Ethernet bypass) or 2 MAC addresses, jumper selectable
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: v
- Industrial Protocols: Modbus TCP Client (Master) Modbus TCP Server (Slave) Moxa AOPC (Active Tag) SNMPv1/v2c Trap SNMPv1/v2c/v3
- Management: BOOTP IPv4 SMTP UDP
- Security: SSH
- Time Management: SNTP
Security Functions
- Authentication: Local database
- Encryption: AES-256 HMAC RSA-1024 SHA-1 SHA-256
- Security Protocols: SNMPv3 SSHv2
Serial Interface
- Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
Modbus RTU/ASCII
- Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16
- Mode: Master, Slave
Modbus TCP
- Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16
- Mode: Master, Slave
Power Parameters
- Power Consumption: 223 mA @ 24 VDC
Physical Characteristics
- Housing: Metal
- Weight: 181 g (0.40 lb)
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway: EN 50121-4 EN 50155
- Safety: UL 508
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
MTBF
- Time: ioPAC 8600-CPU30 models (HW Rev 1.0.1): 1,358,656 hrsioPAC 8600-CPU30 models (HW Rev 1.1.0): 1,273,872 hrsioPAC 8600-PW10-30W-T: 1,341,777 hrsioPAC 8600-BM005-T: 2,678,587 hrsioPAC 8600-BM009-T: 1,350,621 hrsioPAC 8600-BM012-T: 1,238,479 hrs
- Standards: Telcordia Standard SR-332
