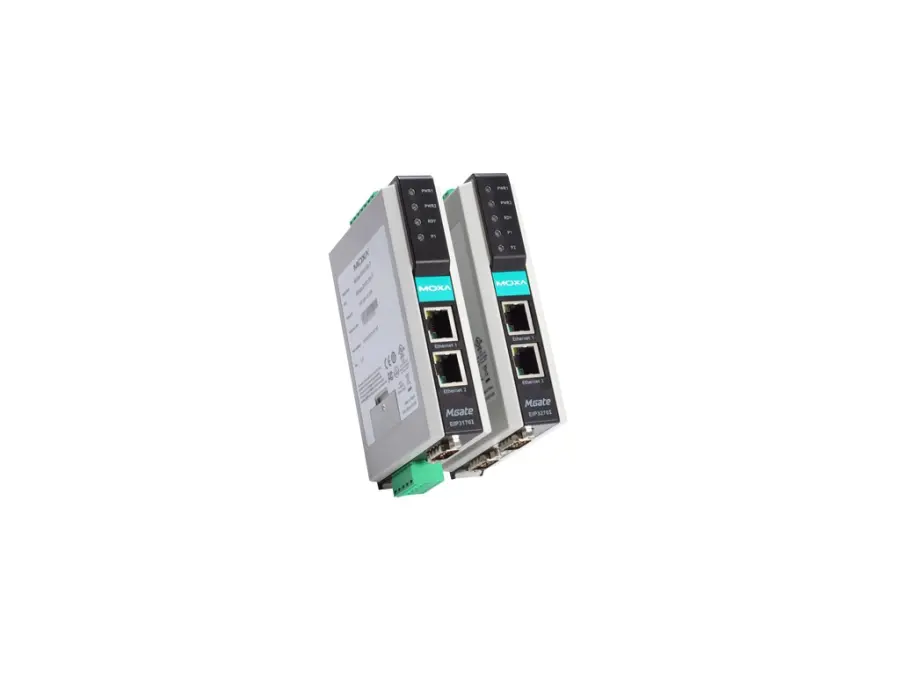

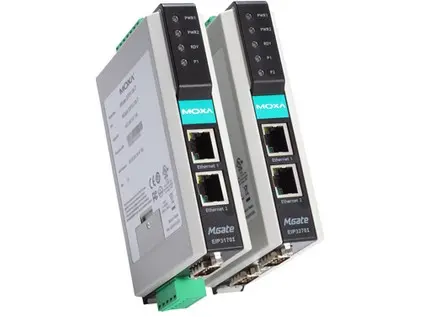

MGate EIP3270-T

Serial communication device – 2-port EtherNet/IP-to-DF1 gateway, -40 to 75°C operating temperature

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection

Ethernet Software Features

• Industrial Protocols: Ethernet/IP (PCCC)
• Configuration Options: MGate Manager Telnet Console
• Management: ARP DHCP Client SNMPv1 TCP/IP Telnet UDP
• MIB: RFC1213, RFC1317

Serial Interface

• No. of Ports: 2
• Connector: 2 x DB9 male
• Serial Standards: RS-232 RS-422
• Baudrate: 1200 bps to 921.6 kbps
• Data Bits: 8
• Parity: None Even Odd
• Stop Bits: 1, 2
• Flow Control: RTS/CTS DTR/DSR (RS-232 only)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

• Industrial Protocols: DF1

DF1 (Transparent)

• Mode: Full duplex
• Max. No. of Client Connections: 8

Power Parameters

• Input Voltage: 12 to 48 VDC
• Input Current: 435 mA @ 12 VDC

Relays

• Contact Current Rating: Resistive load: 1 A @ 30 VDC

Physical Characteristics

• Housing: Plastic top cover, metal bottom plate
• IP Rating: IP30
• Dimensions (with ears): 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)
• Dimensions (without ears): 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
• Weight: 380 g (0.84 lb)

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11
• Safety: IEC 60950-1 UL 60950-1 EN 62368-1 UL 508
• Hazardous Locations: ATEX Class I Division 2 IECEx If you need an IECEx certificate for this product, please contact a Moxa sales representative.
• Freefall: IEC 60068-2-32
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6 IEC 60068-2-64

MTBF

• Time: 1,204,573 hrs
• Standards: Telcordia SR332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
