Description

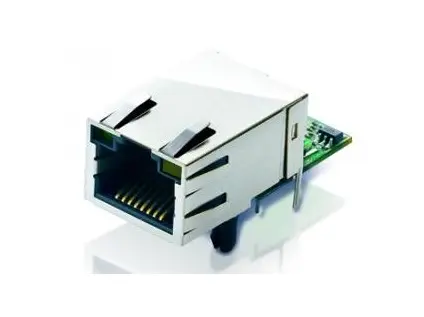

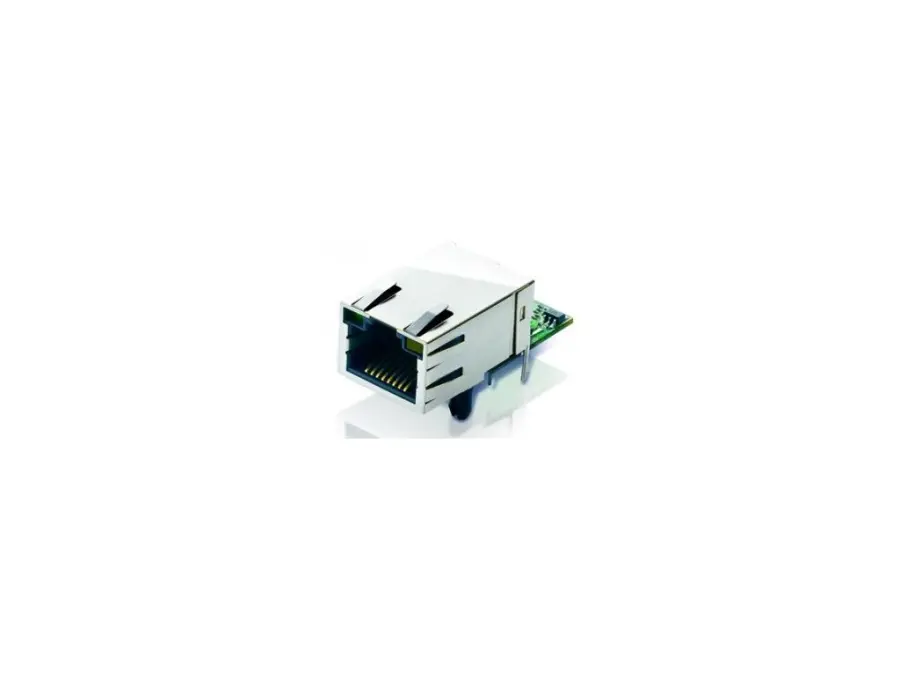

Serial device server – Embedded device server for TTL devices, drop-in module, 10/100M with RJ45 connector, 50 bps to 921.6K baudrate, 0 to 55°C operating temperature
Embedded System
Memory
Input/Output Interface
- Configurable DIO Channels (by software): 1
- Digital Input Channels: 1
- Digital Output Channels: 1
Ethernet Interface
- 10/100BaseT(X) Ports, Auto MDI/MDI-X: 8-pin RJ45
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
- Management: ARP, BOOTP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, ICMP
- Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
- Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Android API: Android 3.1.x and later
Serial Interface
- No. of Ports: 1
- Serial Standards: TTL
- Operation Modes: Real COM mode, TCP Client, TCP Server, UDP mode, RFC2217
- Baudrate: 50 bps to 921.6 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: None, RTS/CTS, XON/XOFF
Serial Signals
- TTL: • TxD, RxD, RTS, CTS, RST (reset circuit), GND
NetEZ Technology
- NetEZ Functions: ExTrigger, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-Channel Serial Communication)
Power Parameters
- Input Current: 195 mA @ 3.3 VDC
- Input Voltage: 3.3 VDC
Physical Characteristics
- Dimensions: 33.9 x 16.25 x 13.5 mm (1.33 x 0.64 x 0.53 in)
- Weight: 9 g (0.02 lb)
- Form Factor Type: Drop-in modules
Environmental Limits
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature (package included): -40 to 60°C (-40 to 140°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class B
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Environmental Testing: IEC 60068-2-1 IEC 60068-2-3
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 5,515,294 hrs
- Standards: Telcordia SR332
