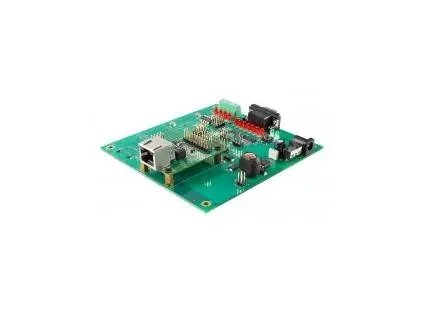

MiiNePort E3-H-ST

Serial communication device – Starter kit for the MiiNePort E3-H Series, module included

Embedded System

• CPU: 32-bit Arm Core

Memory

• Flash: 2 MB
• SDRAM: 4 MB

Input/Output Interface

• Configurable DIO Channels (by software): 4

Ethernet Interface

• Magnetic Isolation Protection: 1.5 kV (built-in)
• PoE Pass-through: IEEE 802.3af for PoE
• 10/100BaseT(X) Ports, Auto MDI/MDI-X: 8-pin RJ45

Ethernet Software Features

• Configuration Options: Web Console (HTTP) Windows Utility
• Management: ARP BOOTP Device Search Utility (DSU) DHCP Client IPv4 SMTP SNMPv1 TCP/IP Telnet TFTP, UDP, ICMP
• Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NTWindows Embedded CE 5.0 and 6.0, Windows XP Embedded
• Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
• Fixed TTY Drivers: macOS versions: 14, 13, 12, 11 and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
• Virtual Machine: VMWare ESXi (Windows 11 / 10)VMware Fusion (Windows on macOS 14, 13, 12, 11 and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11 and 10.1x)
• Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x and 4.xmacOS 14, 13, 12 and 11
• Android API: Android 3.1.x and later

Serial Interface

• No. of Ports: 1
• Serial Standards: TTL
• Operation Modes: Real COM mode TCP Server mode TCP Client mode UDP mode RFC2217 mode Ethernet Modem mode
• Baudrate: 50 bps to 921.6 kbps
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None Even Odd Space Mark
• Flow Control: None RTS/CTS DTR/DSR XON/XOFF

Serial Signals

• TTL: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND

NetEZ Technology

• NetEZ Functions: EZPower EZPage SCM (Serial Command Mode) AutoCFG

Power Parameters

• Input Current: 157 mA @ 3.3 VDC
• Input Voltage: 3.3 to 5 VDC

Physical Characteristics

• Weight: 89 g (0.20 lb)

Environmental Limits

• Operating Temperature: 0 to 55°C (32 to 131°F)
• Storage Temperature (package included): -40 to 60°C (-40 to 140°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/24
• EMI: CISPR 32, FCC Part 15B Class B
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-3
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Freefall: IEC 60068-2-6

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 5,696,350 hrs
• Standards: Telcordia SR332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
