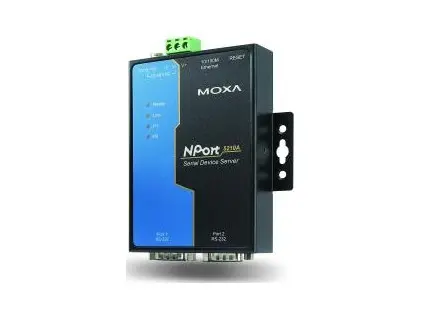

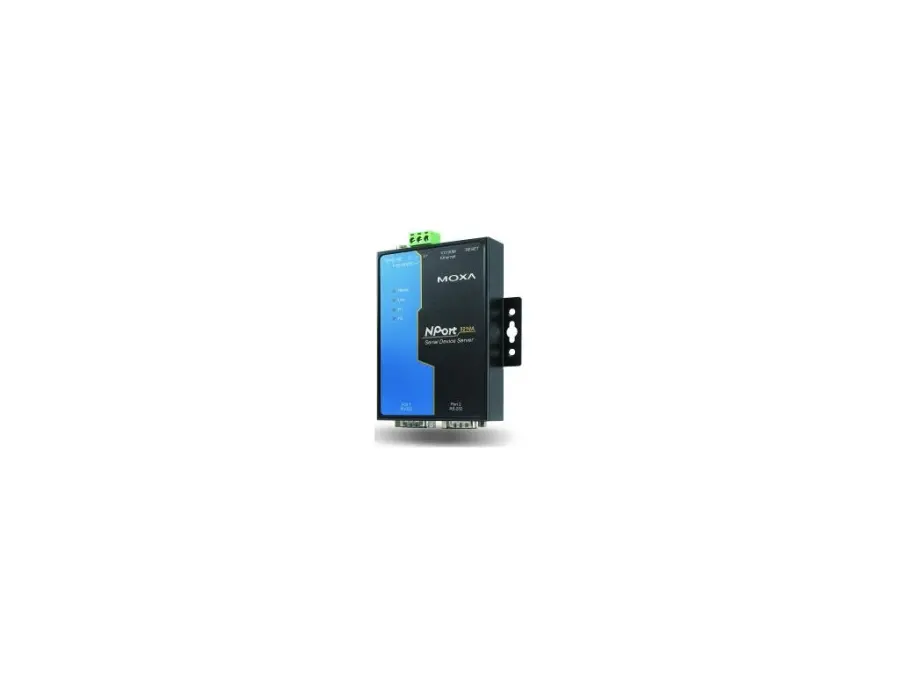

NPort 5210A-T

NPort 5210A-T is a industrial serial device server in the NPort 5200A Series. 2-port RS-232 device server with surge protection, -40 to 75°C operating temperature

Specifications:

• 10/100BaseT(X) Ports (RJ45 connector): 1
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x, and 4.xmacOS 14, 13, 12, and 11
• Connector: DB9 male
• Details: See www.moxa.com/warranty
• Dimensions (with ears): 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
• Dimensions (without ears): 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
• Filter: IGMP v1/v2
• No. of Ports: 2
• Power Connector: 1 removable 3-contact terminal block(s) Power input jack
• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• Serial Standards: RS-232
• Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NTWindows Embedded CE 6.0 and 5.0, Windows XP Embedded
• Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
• Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
• Virtual Machine: VMWare ESXi (Windows 11/10)VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
• Encryption: AES-128 RSA-1024 SHA-256 HTTPS SHA-1
• MIB: RFC1213, RFC1317
• Security Protocols: HTTPS (TLS 1.2)
• Input Current: 119 mA @ 12 VDC
• Input Voltage: 12 to 48 VDC
• Magnetic Isolation Protection: 1.5 kV (built-in)
• No. of Power Inputs: 2
• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Housing: Metal
• Installation: Desktop DIN-rail mounting (with optional kit) Wall mounting
• Weight: 340 g (0.75 lb)
• Standards: Telcordia (Bellcore) Standard TR/SR
• Android API: Android 3.1.x and later
• Fixed TTY Drivers: macOS versions: 14, 13, 12, 11, and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
• Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
• Management: ARP BOOTP DHCP Client DNS HTTP HTTPS ICMP IPv4 LLDP SMTP SNMPv1/v2c Telnet TCP/IP UDP
• Authentication: Local database
• Automatic Reboot Trigger: Built-in WDT
• Configuration Options: Serial Console
• Data Bits: 5, 6, 7, 8
• Flow Control: RTS/CTS (RS-232 only) DTR/DSR (RS-232 only)
• Green Product: RoHS, CRoHS, WEEE
• Operation Modes: Disabled Ethernet Modem Pair Connection Real COM Reverse Telnet RFC2217 TCP Client TCP Server UDP
• Parity: None, Even, Odd, Space, Mark
• Safety: EN 62368-1 IEC 62368-1 UL 60950-1
• Stop Bits: 1, 1.5, 2
• Time: 847,750 hrs
• Warranty Period: 5 years
