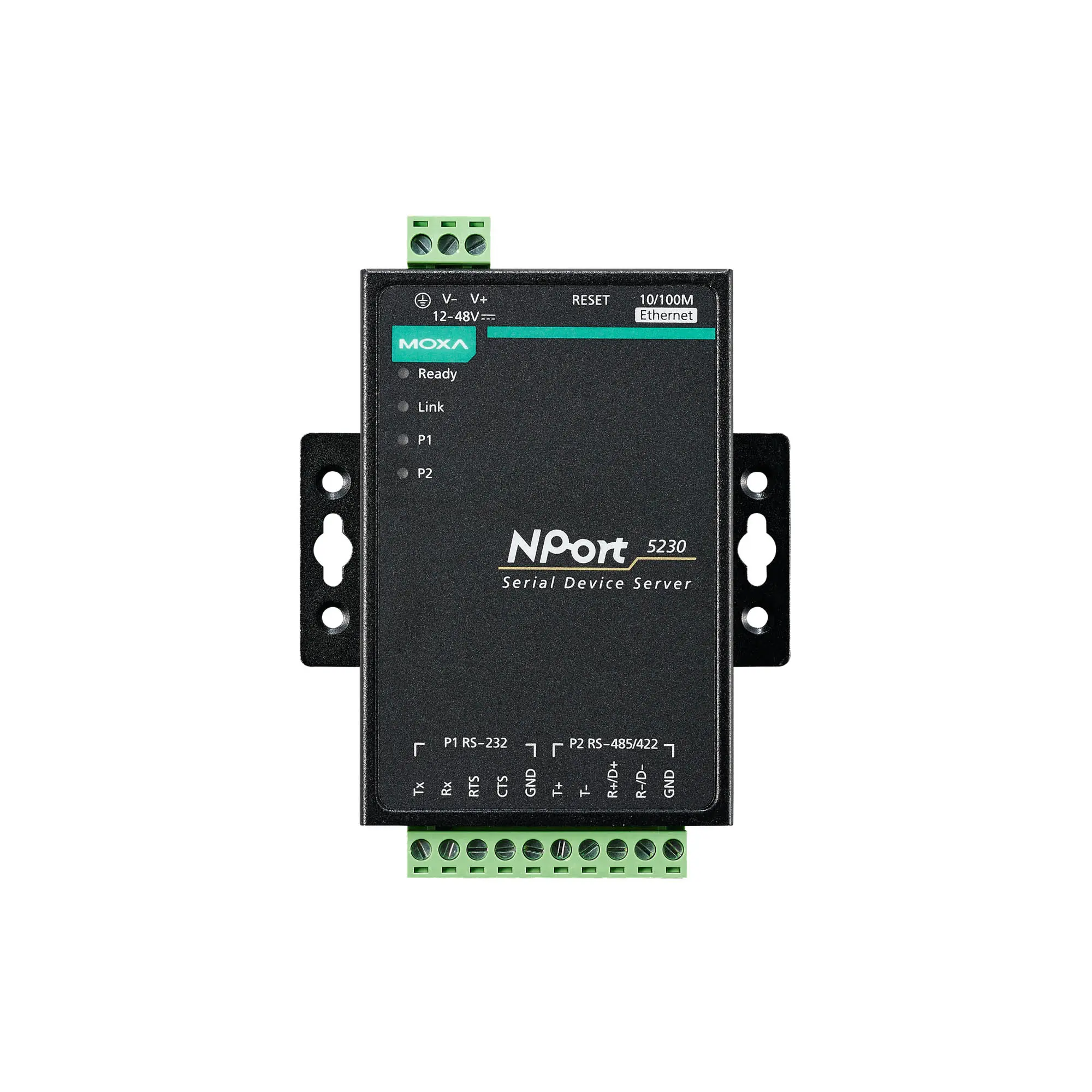

NPort 5230-T

Serial device server – 2-port device server with 1 RS-232 port and 1 RS-422/485 port, -40 to 75°C operating temperature

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 1
• Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

• Configuration Options: Windows Utility Serial Console Telnet Console Web Console (HTTP)
• Management: DHCP Client IPv4 SNTP SMTP SNMPv1 DNS HTTP ARP BOOTP UDP TCP/IP Telnet ICMP
• Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NTWindows Embedded CE 6.0 and 5.0, Windows XP Embedded
• Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
• Fixed TTY Drivers: macOS versions: 14, 13, 12, 11, and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
• Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x, and 4.xmacOS 14, 13, 12, and 11
• Virtual Machine: VMWare ESXi (Windows 11/10)VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
• Android API: Android 3.1.x and later
• MIB: RFC1213, RFC1317

Security Functions

• Authentication: Local database (password only)

Serial Interface

• Connector: Terminal block
• No. of Ports: 2
• Serial Standards: RS-232 RS-422 RS-485 Note: The NPort 5230-T supports RS-232 on one port, and RS-422/485 on the other.
• Operation Modes: Disabled Ethernet Modem Pair Connection Real COM Reverse Telnet TCP Client TCP Server UDP
• Baudrate: Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS/CTS (RS-232 only) DTR/DSR (RS-232 only) XON/XOFF
• Pull High/Low Resistor for RS-485: 1 kilo-ohms (fixed value)
• RS-485 Data Direction Control: ADDC (automatic data direction control)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

Power Parameters

• Input Current: 325 mA @ 12 VDC
• Input Voltage: 12 to 48 VDC
• No. of Power Inputs: 1
• Power Connector: 1 removable 3-contact terminal block(s)

Reliability

• Automatic Reboot Trigger: Built-in WDT
• Alert Tools: Built-in buzzer and RTC (real-time clock)

Physical Characteristics

• Housing: Metal
• Dimensions (with ears): 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in)
• Dimensions (without ears): 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)
• Weight: 360 g (0.79 lb)
• Installation: Desktop DIN-rail mounting (with optional kit) Wall mounting

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
• Safety: UL 60950-1
• Maritime: DNV

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 377,937 hrs
• Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
