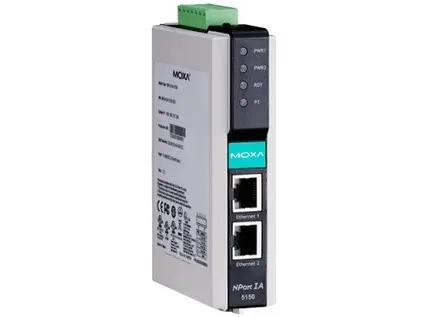

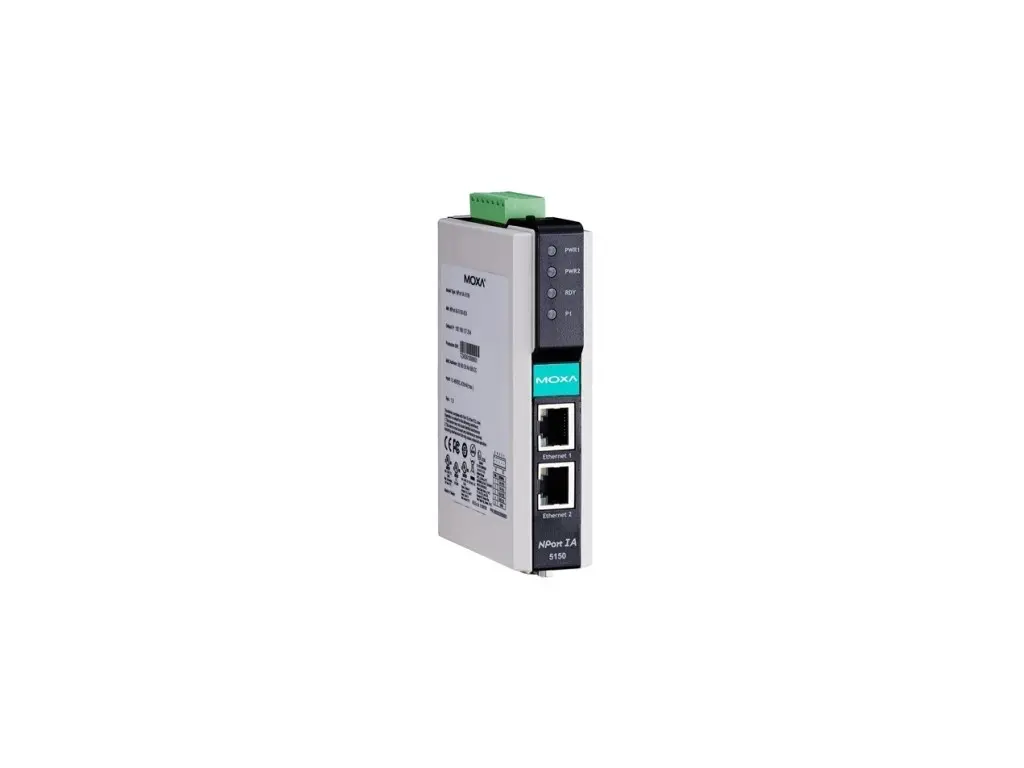

NPort IA-5150-T

NPort IA-5150-T is a industrial serial device server in the NPort IA5000 Series. 1-port RS-232/422/485 device server with 2 10/100BaseT(X) ports (RJ45 connectors, single IP), -40 to 75°C operating temperature

Specifications:

• 10/100BaseT(X) Ports (RJ45 connector): 2 (1 IP, Ethernet cascade)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x, and 4.xmacOS 14, 13, 12, and 11
• Connector: DB9 male for RS-232 and terminal block for RS-422/485
• Details: See www.moxa.com/warranty
• Dimensions: 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)
• Hazardous Locations: ATEX Class I Division 2 IECEx
• No. of Ports: 1
• Optical Fiber: | 100BaseFX Multi-Mode | Single-Mode Fiber Cable Type | OM1 | 50/125 µm | G.652 800 MHz x km Typical Distance | 4 km | 5 km | 40 km Wavelength | Typical (nm) | 1300 | 1310 TX Range (nm) | 1260 to 1360 | 1280 to 1340 RX Range (nm) | 1100 to 1600 | 1100 to 1600 Optical Power | TX Range (dBm) | -10 to -20 | 0 to -5 RX Range (dBm) | -3 to -32 | -3 to -34 Link Budget (dB) | 12 | 29 Dispersion Penalty (dB) | 3 | 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
• Power Connector: Terminal block
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485 Data Direction Control: ADDC (automatic data direction control)
• RS-485-2w: Data+, Data-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• Serial Standards: RS-232 RS-422 RS-485
• Terminator for RS-485: 120 ohms
• Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NTWindows Embedded CE 5.0 and 6.0, Windows XP Embedded
• Baudrate: Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
• Storage Temperature (package included): -40 to 85°C (-40 to 167°F)
• Virtual Machine: VMWare ESXi (Windows 11/10)VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
• MIB: RFC1213, RFC1317
• Contact Current Rating: Resistive load: 1 A @ 30 VDC
• Input Current: 435 mA @ 12 VDC
• Input Voltage: 12 to 48 VDC
• Magnetic Isolation Protection: 1.5 kV (built-in)
• No. of Power Inputs: 2
• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6 IEC 60068-2-64
• Housing: Plastic
• Installation: DIN-rail mounting
• Weight: 360 g (0.79 lb)
• Standards: Telcordia (Bellcore) Standard TR/SR
• Android API: Android 3.1.x and later
• Fixed TTY Drivers: macOS versions: 14, 13, 12, 11, and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
• Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
• Management: DHCP Client IPv4 SMTP SNMPv1 Telnet ARP BOOTP DNS HTTP TCP/IP UDP ICMP Rtelnet
• Time Management: SNTP
• Authentication: Local database (password only)
• Configuration Options: Web Console (HTTP) Windows Utility Telnet Console Serial Console
• Data Bits: 5, 6, 7, 8
• Flow Control: RTS/CTS (RS-232 only) DTR/DSR (RS-232 only) XON/XOFF
• Freefall: IEC 60068-2-32
• Green Product: RoHS, CRoHS, WEEE
• IP Rating: IP30
• Maritime: DNV
• Parity: None, Even, Odd, Space, Mark
• Safety: IEC 60950-1 EN 60950-1 EN 62368-1 UL 508
• Stop Bits: 1, 1.5, 2
• Time: 1,349,710 hrs
• Warranty Period: 5 years
