Description

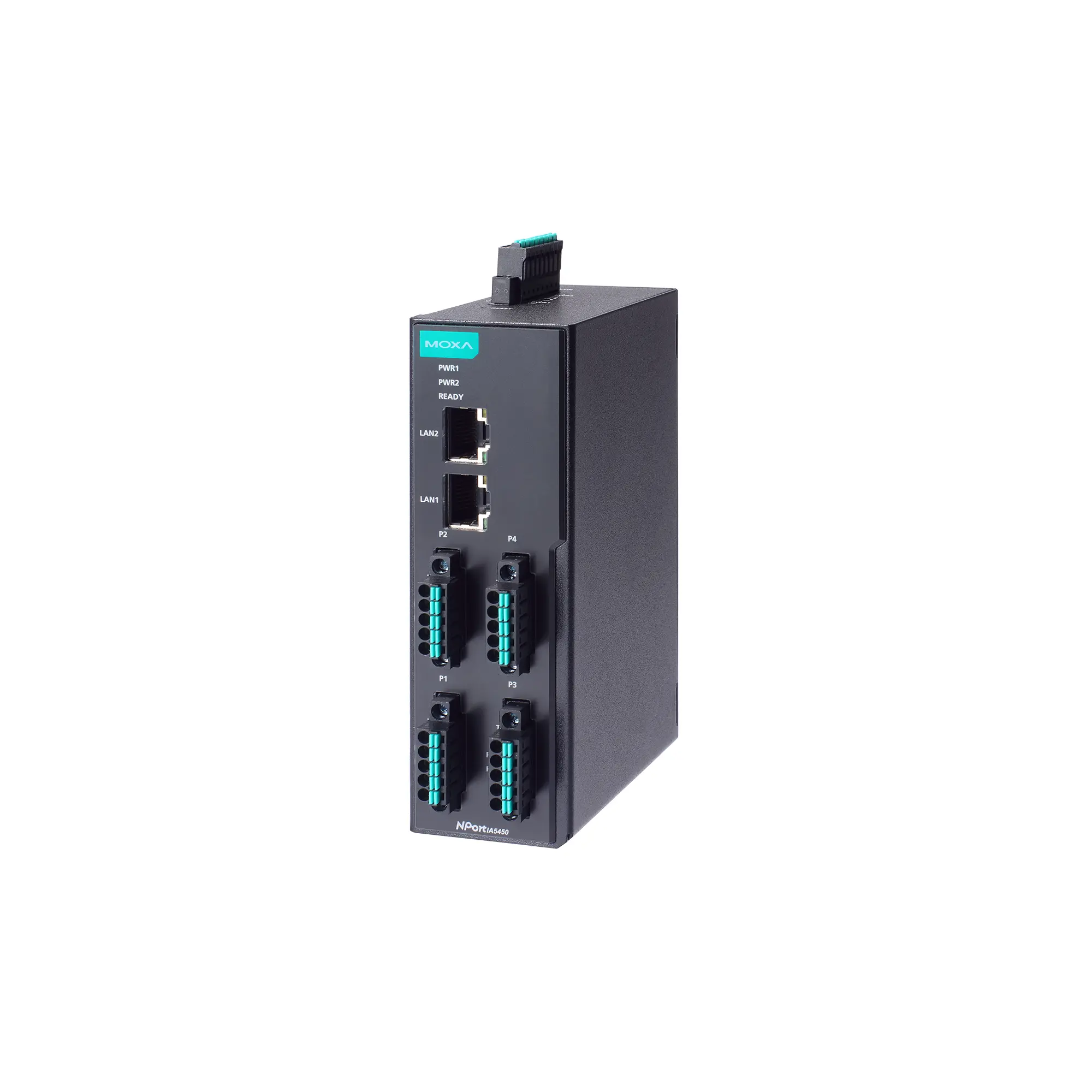

Serial device server – 2nd Gen 4-port RS-232/422/485 DIN-rail serial device server with 2 RJ45 ports, 2 5-pin terminal blocks, 2 kV isolation, -40 to 75°C operating temperature
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): NPort IA5150-S-SC-G2/M-SC-G2/M-ST-G2 models: 1NPort IA5000-G2 models: 2 Auto MDI/MDI-X connection
- Magnetic Isolation Protection: 1.5 kV (built-in)
- Optical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km Wavelength Typical (nm) 1300 1310 TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 Link Budget (dB) 12 29 Dispersion Penalty (dB) 3 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Ethernet Software Features
- Configuration Options: Web Console (HTTP/HTTPS) Device Search Utility (DSU) MCC Tool Serial Console
- Management: ARP, DHCP Client, DNS, HTTPS, ICMP, IPv4, MDNS, LLDP, SMTP, SMTPS, SNMPv1/v2c/v3, TCP/IP, UDP, SNTP, WINS
- Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
- Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, and 4.x
- Fixed TTY Drivers: macOS versions: 14, 13, 12, and 11
- Arm®-based Platform Support: Windows 11Linux kernels 6.x, 5.x, and 4.xmacOS 14, 13, 12, and 11
- Virtual Machine: VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x)VMware Fusion (Windows on macOS 14, 13, 12, and 11)Parallels Desktop (Windows on macOS 14, 13, 12, and 11)
- Android API: Android 3.1.x and later
- Time Management: SNTP Client
- Filter: IGMP v1/v2
- MIB: RFC1213, RFC1317 Private MIB
Security Functions
- Root of Trust: Secure Boot True Random Number Generator (TRNG)
- Authentication: Local database
- Encryption: HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, SHA-256, SHA-384, HMACSSH: ECC-256, ECC-384, ECC-521, RSA-2048, AES-128, AES-256, SHA-256, SHA-384, HMACSNMPv3: AES-128, SHA-256, SHA-384Secure OP mode: HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, SHA-256, SHA-384, HMACConfig file import/export: AES-256, SHA-256, HMAC
- Security Protocols: HTTPS (TLS 1.2) SNMPv3 SSHv2
Serial Interface
- No. of Ports: NPort IA5150-G2 models: 1 NPort IA5250-G2 models: 2 NPort IA5450-G2 models: 4
- Connector: NPort IA5150-G2 models: 1 x DB9 male NPort IA5250-G2 models: 2 x DB9 male NPort IA5250-TB-G2 models: 2 x 5-pin terminal block NPort IA5450-G2 models: 4 x DB9 male NPort IA5450-TB-G2 models: 4 x 5-pin terminal block
- Serial Standards: RS-232/422/485 (software-selectable)
- Standard Operation Modes: Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217, Pair Connection, Disabled
- Secure Operation Modes: Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH, Secure Pair Connection
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- Data Bits: 5, 6, 7,
