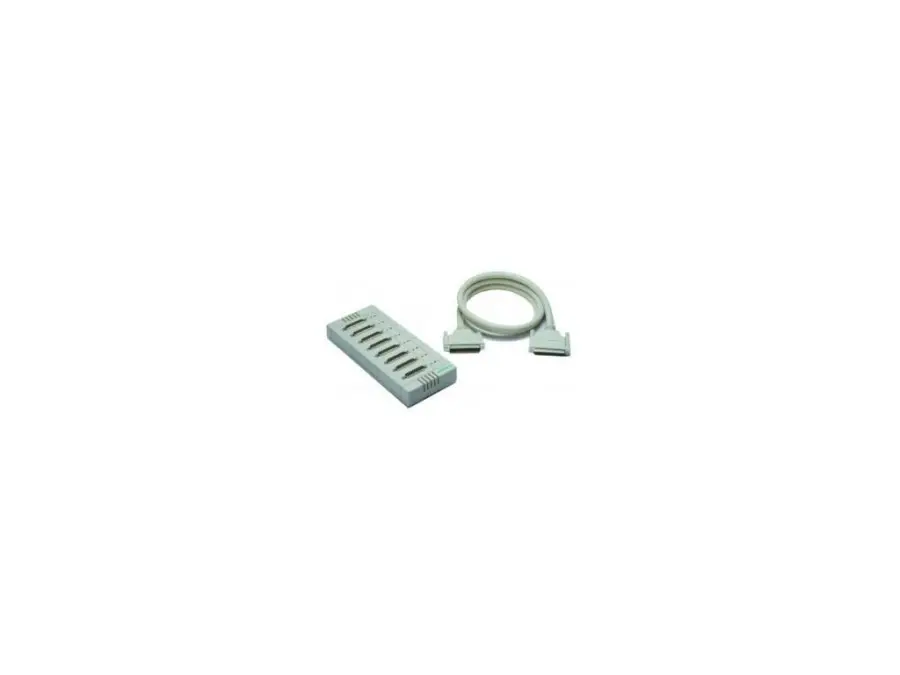

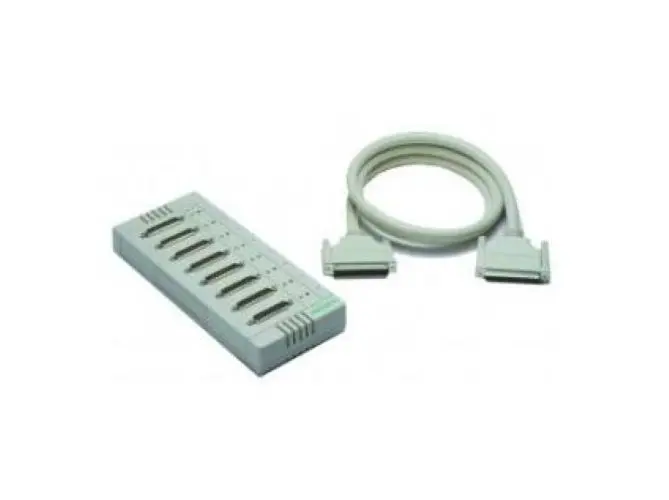

OPT 8B+

Cable – VHDCI 68 to 8 x DB25 male connection box

Connector

• Board-side Connector: VHDCI 68 x 1
• Device-side Connector: DB25 (male) x 8
• Connection Cable: VHDCI 68 to DB62 (male) 1.5 m connection cable for connecting to the serial board

LED Interface

• LED Indicators: TxD, RxD indicators for each device-side port

Serial Interface

• Baudrate: 50 bps to 921.6 kbps

Physical Characteristics

• Dimensions: 247 x 108 x 35 mm (9.72 x 4.25 x 1.38 in)

Warranty

• Warranty Period: 1 year
• Details: See www.moxa.com/warranty
