Description

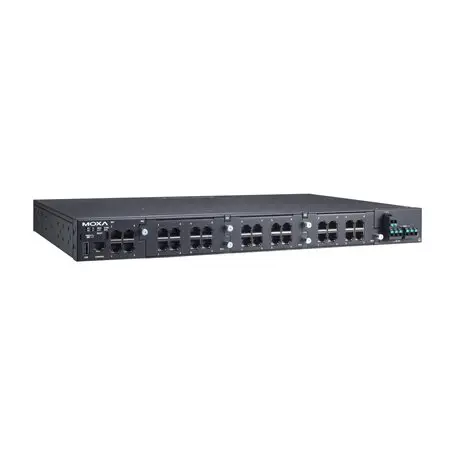

Industrial Layer 2 Managed PoE Ethernet switch – Layer 2 modular managed Ethernet switch with 4 10/100/1000BaseT(X) ports, 3 slots for Ethernet modules, 1 isolated power supply (110/220 VAC/VDC), -40 to 75°C operating temperature
Input/Output Interface
- Alarm Contact Channels: 1 relay output with current carrying capacity of 2 A @ 24 VDC
- Buttons: Reset button
Ethernet Interface
- 10/100/1000BaseT(X) Ports (RJ45 connector): 4
- Module: There are 3 module slots on the switch. Users can select different types of modules to insert into the switch. The modules that can be selected include 8-port/6-port modules with 10/100/1000BaseT(X), 10/100BaseT(X), 100/1000BaseSFP, or 100BaseFX (SC/ST connector) interfaces.Refer to Expansion Modules in the Accessories section for a full list of supported interface modules.
- Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
- Management: ARP Back Pressure Flow Control DHCP Server/Client DHCP Relay Agent (Option 82) Fiber check Flow control HTTP, HTTPS IPv4/IPv6 Linkup Delay LLDP Private MIB Port Mirroring (SPAN, RSPAN) RARP, RMON, SFTP, SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP
- Filter: GMRP, GVRP, GARP 802.1Q IGMP Snooping v1/v2/v3 IGMP Querier
- Redundancy Protocols: Link Aggregation MRP MRP Interconnection MSTP Multiple Dual Homing Multiple Network Coupling Network Loop Protection Ring Coupling RSTP STP Tracking Turbo Chain Turbo Ring v2
- Security: Access control list Broadcast storm protection DHCP Snooping Dynamic ARP Inspection HTTPS/SSL IEEE 802.1AE MAC security IP Source Guard Login and password policy MAC authentication bypass RADIUS Rate Limit Secure boot SSH Static port lock Sticky MAC TACACS+ Trust access control
- Time Management: IEEE 1588v2 PTP (hardware-based) NTP Authentication NTP Server/Client SNTP Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
- Protocols: 802.1X ARP DHCP Client DHCP Server DNS HTTP, HTTPS ICMP IPv4/IPv6 NTP Client QoS SMTP SNMPv1/v2c/v3 Syslog RARP, RMON, TCP/IP Telnet TFTP, UDP, VLAN Assignment
- Industrial Protocols: EtherNet/IP Modbus TCP PROFINET
- MIB: P-BRIDGE MIB Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB, RMON, MIB Groups 1, 2, 3, 9
- Power Substation: MMS 1588 PTP Power Profile IEC 61850-9-31588 PTP Power Profile C37.238-2017 GOOSE Check
Switch Properties
- IGMP Groups: 1024
- Jumbo Frame Size: 9.216 KB
- MAC Table Size: 16 K
- Max. No. of VLANs: 256
- Packet Buffer Size: 1.5 MB
- Priority Queues: 8
- VLAN ID Range: VID 1 to 4094
USB Interface
MicroSD Interface
- Storage Port: microSD card
LED Interface
- LED Indicators: PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC, EPS
Serial Interface
- Console Port: RS-232 (RJ45)
