Description

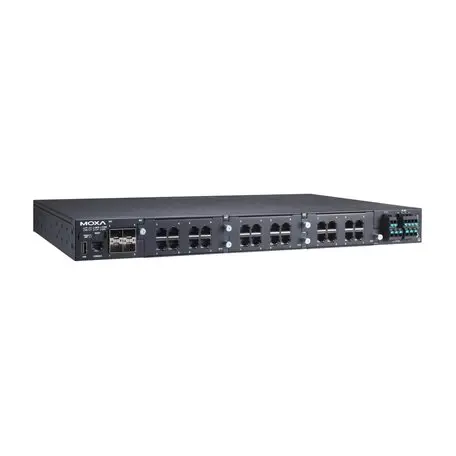

RKS-G4028-L3-4GS-LV-T is a rackmount industrial Ethernet switch in the RKS-G4028-L3 Series. Layer 3 modular managed Ethernet switch with 4 100/1000BaseSFP ports, 3 slots for Ethernet modules, 1 isolated power supply (24/48 VDC), -40 to 75°C operating temperature
Specifications:
- 100/1000BaseSFP Slots: 4
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Console Port: RS-232 (RJ45)
- Details: See www.moxa.com/warranty
- Dimensions: 440 x 44 x 296 mm (17.32 x 1.37 x 11.65 in)
- Filter: GMRP GVRP GARP 802.1Q IGMP Snooping v1/v2/v3 IGMP Querier
- LED Indicators: PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC, EPS
- Max. No. of VLANs: 256
- Max. PoE Power Output per Port: IEEE 802.3af: 15.4 WIEEE 802.3at: 30 W IEEE 802.3bt: 90 W
- Railway: EN 50121-4
- Storage Port: microSD card
- VLAN ID Range: VID 1 to 4094
- Jumbo Frame Size: 9.216 KB
- Packet Buffer Size: 1.5 MB
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Total PoE Power Budget: 300 W
- Cybersecurity: IEC 62443-4-2 Security Level 2
- IGMP Groups: 1024
- Industrial Protocols: EtherNet/IP Modbus TCP PROFINET
- MIB: IEEE8021-PAE-MIB IEEE8021-SPANNING-TREE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB P-BRIDGE MIB Q-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 SNMPv2-MIB
- Multicast Routing: PIM-DM PIM-SM Multicast Local Route
- Protocols: 802.1X ARP DNS HTTP HTTPS ICMP IPv4 NTP Client QoS RARP RMON SMTP SNMPv1/v2c/v3 Syslog TCP/IP Telnet TFTP UDP VLAN Assignment
- Redundancy Protocols: Link Aggregation MRP MRP Interconnection MSTP Multiple Dual Homing Multiple Network Coupling Network Loop Protection Ring Coupling RSTP STP Tracking Turbo Chain Turbo Ring v2
- Routing Redundancy: VRRP
- Security: Access control list Broadcast storm protection DHCP Snooping Dynamic ARP Inspection HTTPS/SSL IEEE 802.1AE MAC security IP Source Guard Login and password policy MAC authentication bypass RADIUS Rate Limit Secure boot SSH Static port lock Sticky MAC TACACS+ Trust access control
- Unicast Routing: OSPF Static Route
- Input Current: Max. 2.53 A @ 24 VDCMax. 1.25 A @ 48 VDC
- Input Voltage: 24/48 VDC
- Operating Voltage: 18 to 72 VDC
- Overload Current Protection: Supported
- Power Consumption (Max.): Max. 60.72 W @ 24 VDCMax. 60 W @ 48 VDC
- Power Substation: 1588 PTP Power Profile IEC 61850-9-31588 PTP Power Profile C37.238-2017 GOOSE Check MMS
- Reverse Polarity Protection: Supported
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11 Voltage Dips & Interruptions
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Installation: Rack mounting
- MAC Table Size: 16 K
- Weight: 4900 g (10.80 lb)
- Module: There are 3 module slots on the switch. Users can select different types of modules to insert into the switch. The modules that can be selected include 8-port/6-port modules with 10/100/1000BaseT(X), 10/100BaseT(X), 100/1000BaseSFP, or 100BaseFX (SC/ST connector) interfaces.Refer to Expansion Modules in the Accessories section for a full list of supported interface modules.
- Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
- Management: ARP Back Pressure Flow Control DHCP Relay Agent (Option 82) Fiber check Flow control HTTP HTTPS IPv4 Linkup Delay LLDP Port Mirroring (SPAN, RSPAN) Private MIB RARP RMON SFTP SMTP SNMP Inform SNMP Trap SNMPv1/v2c/v3 Syslog Telnet TFTP
- Time Management: IEEE 1588v2 PTP (hardware-based) NTP Authentication NTP Server/Client SNTP Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
- Alarm Contact Channels: 1 relay output with current carrying capacity of 2 A @ 24 VDC
- Buttons: Reset button
- Freefall: IEC 60068-2-32
- IP Rating: IP30
- Priority Queues: 8
- Safety: EN IEC 62368-1 IEC 60950-1 IEC 62368-1 UL 61010 UL 62368-1
- Time: 508,639 hrs
- Traffic Control: NEMA TS2
- Warranty Period: 5 years
