Description

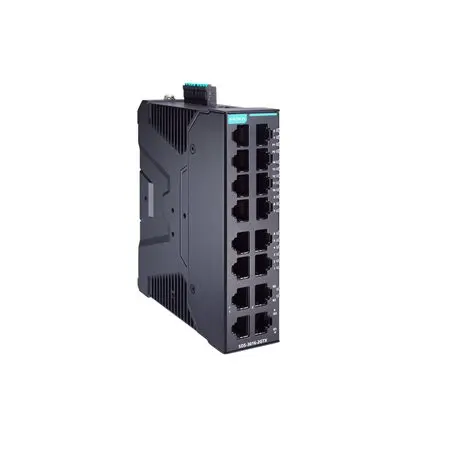

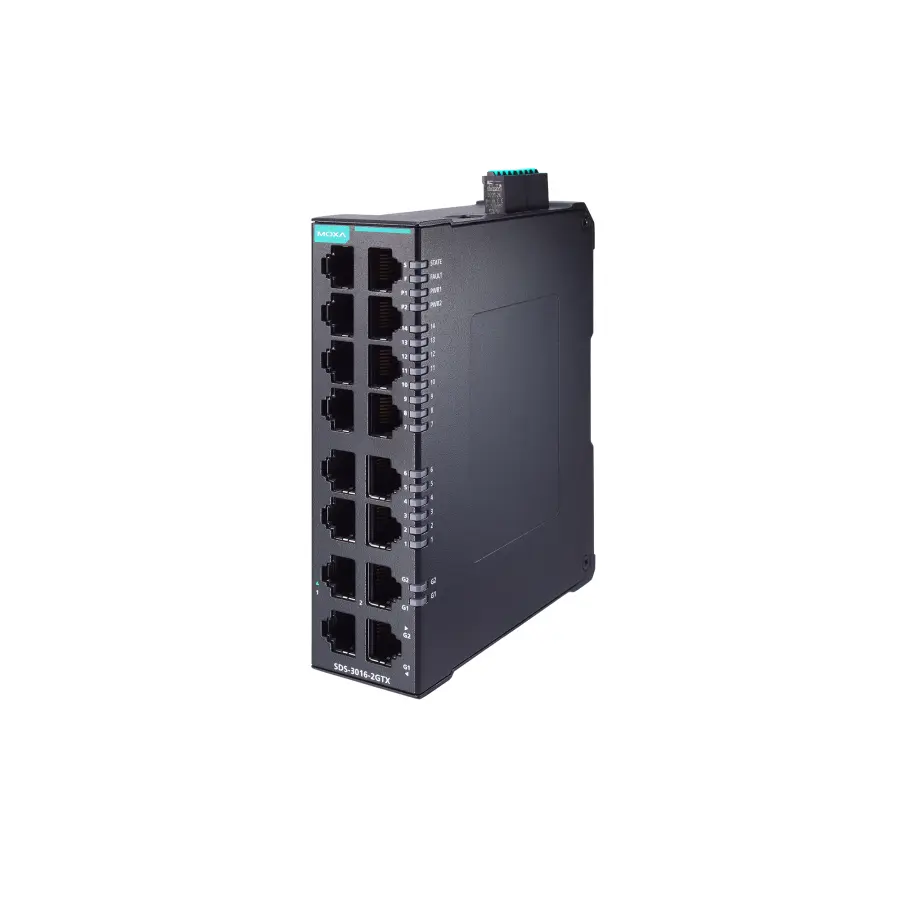

SDS-3016-2GTX is a managed Layer 2 industrial Ethernet switch in the SDS-3016 Series. Compact industrial smart Ethernet switch with 14 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) ports, dual 12/24/48 VDC power inputs, -10 to 60°C operating temperature
Specifications:
- 10/100/1000BaseT(X) Ports (RJ45 connector): 2
- 10/100BaseT(X) Ports (RJ45 connector): 14
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Connector: 2 removable 4-contact terminal block(s)
- Details: See www.moxa.com/warranty
- Digital Input Channels: 1
- Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
- Dimensions: 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)
- Filter: 802.1Q VLAN
- LED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M, 1000M (TP Port), 1000M (TP port), 100/1000M (SFP port)
- Max. No. of VLANs: 8
- Storage Port: USB Type A (for ABC-02 only)
- VLAN ID Range: VID 1 to 4094
- Jumbo Frame Size: 9.6 KB
- Packet Buffer Size: 3 Mbits
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Industrial Protocols: EtherNet/IP Modbus TCP PROFINET IO Device MECHATROLINK-4
- MIB: RFC1213 Ethernet-like MIB IF MIB LLDP MIB Bridge MIB Q-BRIDGE MIB
- Redundancy Protocols: RSTP STP MRP
- Security: Broadcast storm protection HTTPS/SSL SNMPv3 Port Lock Trust access control
- Input Current: 12 to 48 VDC, 1.08 A (max)
- Input Voltage: 12-48 VDC Redundant dual inputs
- Operating Voltage: 9.6 to 60 VDC
- Overload Current Protection: Supported
- Power Consumption (Max.): 7.76 W
- Reverse Polarity Protection: Supported
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m; 800 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (1.2/50 μs), 1 kV (10/700 μs) IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Housing: Metal
- Installation: DIN-rail mounting Wall mounting (with optional kit)
- MAC Table Size: 8 K
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service
- Management: Back Pressure Flow Control DHCP Client Fiber check Flow control IPv4/IPv6 LLDP Port Mirroring RMON SNMP Inform SNMPv1/v2c/v3 Syslog
- Time Management: NTP Server/Client SNTP
- Alarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDC
- Buttons: Reset button
- Freefall: IEC 60068-2-32
- Industrial Profile: Indicator | Mode 0 | No function enabled via DIP switch (Default) 1 | PROFINET profile enabled 2 | PROFINET profile and DHCP client enabled 3 | EtherNet/IP profile enabled 4 | EtherNet/IP profile and DHCP client enabled 5 | Modbus TCP profile enabled 6 | Modbus TCP profile and DHCP client enabled 7 | MECHATROLINK-4 profile enabled 8-9 | Reserved (currently performs the same behavior as indicator 0)
- IP Rating: IP40
- Safety: EN IEC 62368-1 UL 61010-2-201
- Time: 2,982,863 hrs
- Warranty Period: 5 years
