Description

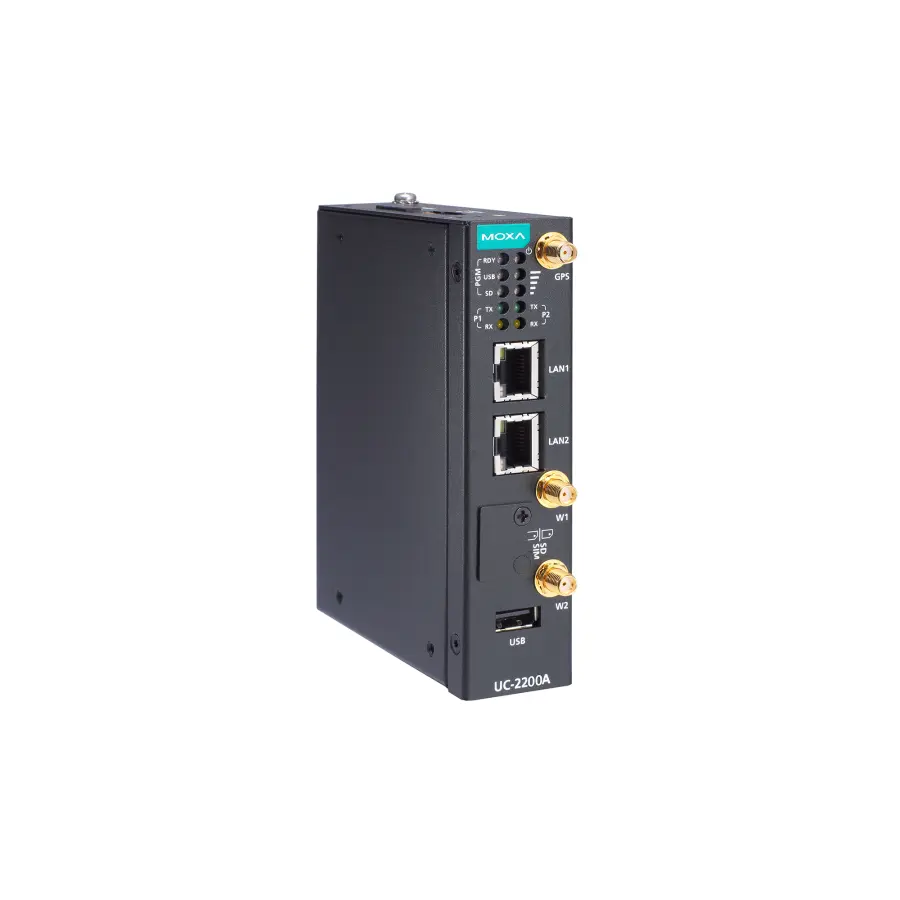

Industrial computer – Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 1 USB 2.0 port, 1 mPCIe expansion slot, 12 to 24 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10) , -40 to 75°C operating temperature
Computer
- CPU: Armv8 Cortex-A53 dual-core 1GHz
- DRAM: 2 GB DDR4
- Pre-installed OS: Moxa Industrial Linux (Debian 11, kernel 5.10), 2031 EOLSee www.moxa.com/MIL
- Storage Pre-installed: 16 GB eMMC
- Storage Slot: micro SD slots x 1
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- Serial Channels: RS-232/422/485 ports x 2 (software-selectable, terminal-block connector)
- USB 2.0: USB 2.0 hosts x 1, type-A connectors
- Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
- Expansion Slots: mPCIe slots x 1
- Number of SIMs: 1
- SIM Format: Nano
- Buttons: Reset button
- TPM: TPM v2.0
Ethernet Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface
- Baudrate: 300 bps to 921.6 kbps
- Data Bits: 5, 6, 7, 8
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
- Flow Control: RTS/CTS XON/XOFF Automatic Data Direction Control (ADDC) for RS-485 RTS Toggle (RS-232 only)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Cellular Interface
- Cellular Standards: LTE Cat. 4
GPS Interface
- Receiver Types: GPS, GLONASS, BeiDou, Galileo, QZSS
- Accuracy: Position: 2.0 m @CEP50
- Time to First Fix (TTFF): Hot start: 1.1 s Warm start: 22.1 s Cold start: 29.9 s
- Sensitivity: Acquisition: -147 dBm Cold starts: -145 dBm Tracking: -160 dBm
- Update Rate: 1 Hz
LED Indicators
- System: Power x 1 SW ready (programmable) USB (programmable) x 1 micro SD slot (programmable) x 1 Serial Ports: TX x 2, RX x 2
- Wireless Signal Strength: Cellular x 2, programmable Disconnected: NoneVery Poor Signal: 1 LED (blinking)Poor Signal: 1 LEDGood Signal: 2 LEDs
Power Parameters
- Input Current: 600 mA @ 12 VDC300 mA @ 24 VDC
- Input Voltage: 12 to 24 VDC
- Power Consumption: 4.5 W (without external USB device) 7.2 W (with external USB device)
Reliability
- Alert Tools: External RTC (real-time clock)
- Automatic Reboot Trigger: External WDT (watchdog timer)
Physical Characteristics
- Housing: Metal SECC
- IP Rating: IP30
- Dimensions: 102 x 32 x 128 mm (4.20 x 1.26 x 5.04 in)
- Weight: 546 g (1.2 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: -40 to 75°
