Description

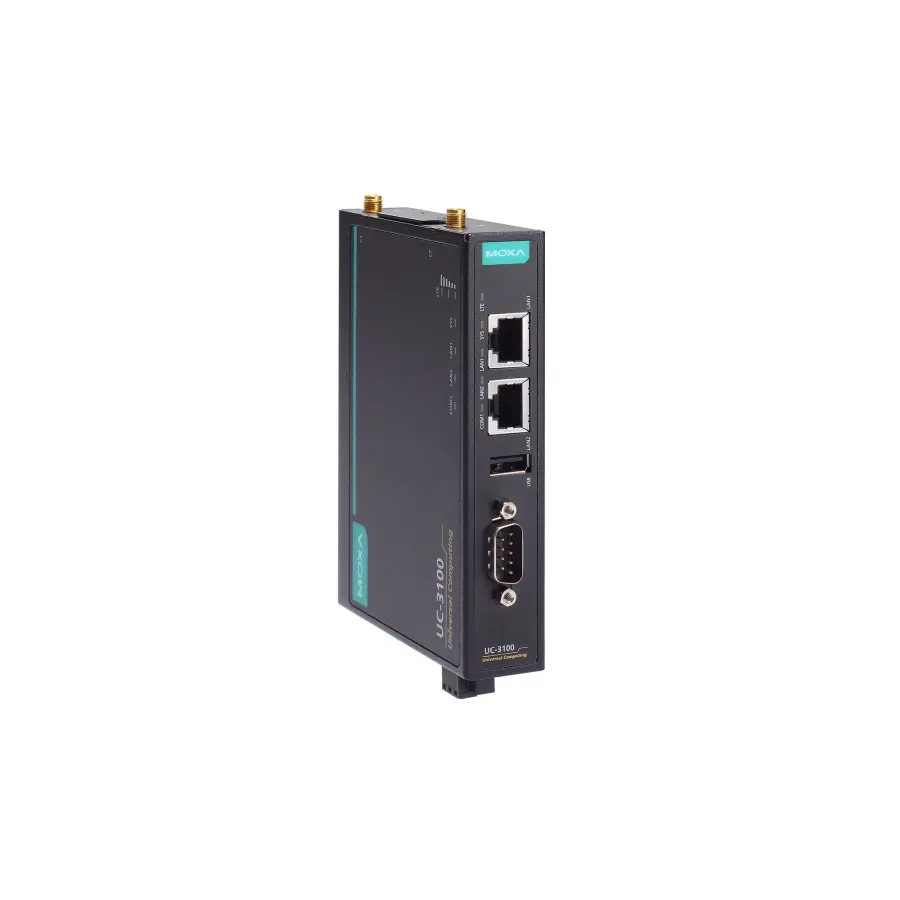

Industrial computer – Arm-based computer for the EU region with built-in LTE Cat. 1 and Wi-Fi a/b/g/n modules, 1 GHz processor, 1 GB RAM, 8 GB eMMC, 2 Ethernet ports, 2 serial ports, 1 USB port, 1 SD slot, -40 to 70°C operating temperature
Computer
- CPU: Armv7 Cortex-A8 1 GHz
- DRAM: 1 GB DDR3
- Supported OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLSee www.moxa.com/MIL
- Storage Pre-installed: 8 GB eMMC
- Storage Slot: SD slots x 1
Computer Interface
- Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
- Serial Channels: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
- Wi-Fi Antenna Connector: RP-SMA x 2
- Cellular Antenna Connector: SMA x 2
- SIM Format: Nano
- Number of SIMs: 2
- GPS Antenna Connector: SMA x 1
- USB 2.0: USB 2.0 hosts x 1, type-A connectors
- Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
- TPM: TPM v2.0
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface
- No. of Ports: 2
- Baudrate: 50 bps to 921.60 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Cellular Interface
- Band Options: LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 7 (2600 MHz) / Band 8 (900 MHz) / Band 20 (800 MHz) / Band 28A (700 MHz)UMTS Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) Band 8 (900 MHz)
WLAN Interface
- Frequency Band: 2.4 GHz/5 GHz
LED Indicators
- System: Power x 1
- Serial: 1 per port (Tx, Rx)
- LAN: 1 per port (10/100 Mbps)
- Wireless Signal Strength: Cellular x 3 and Wi-Fi x 3
Power Parameters
- Input Current: 0.87 A @ 9 VDC, 0.21 A @ 36 VDC
- Input Voltage: 9 to 36 VDC
- Power Consumption: 7.83 W
Physical Characteristics
- Housing: Metal
- Dimensions (without ears): 128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in)
- Weight: Product Only: 550 g (1.22 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 61000-6-2/-6-4 EN 55032/35 UKCA, RCM, UC-3101 models: KC
- EMI: FCC Part 15B Class A ICES-003 Class A EN 55032 Class A EN 61000-6-4 Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Cybersecurity: EN 18031-1
- Radio Frequency: CE, FCC, UKCA, RCM UC-3101 models: KC
- Carrier Approvals: UC-3101/3111/3121-T-US-LX: AT&T, Verizon, and PTCRB
- International Approval: CE, FCC, UKCA, RCM UC-3101 models: KC UC-3111 models:ANATELENACOMIFETEL/NOMNBTCSUBTELWPC
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-64 2 grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached)
- Hazardous Locations: Class I Division 2 ATEX IECEx
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 416,081 hrs
- Standards: Telcordia (Bellcore) Standard
