Description

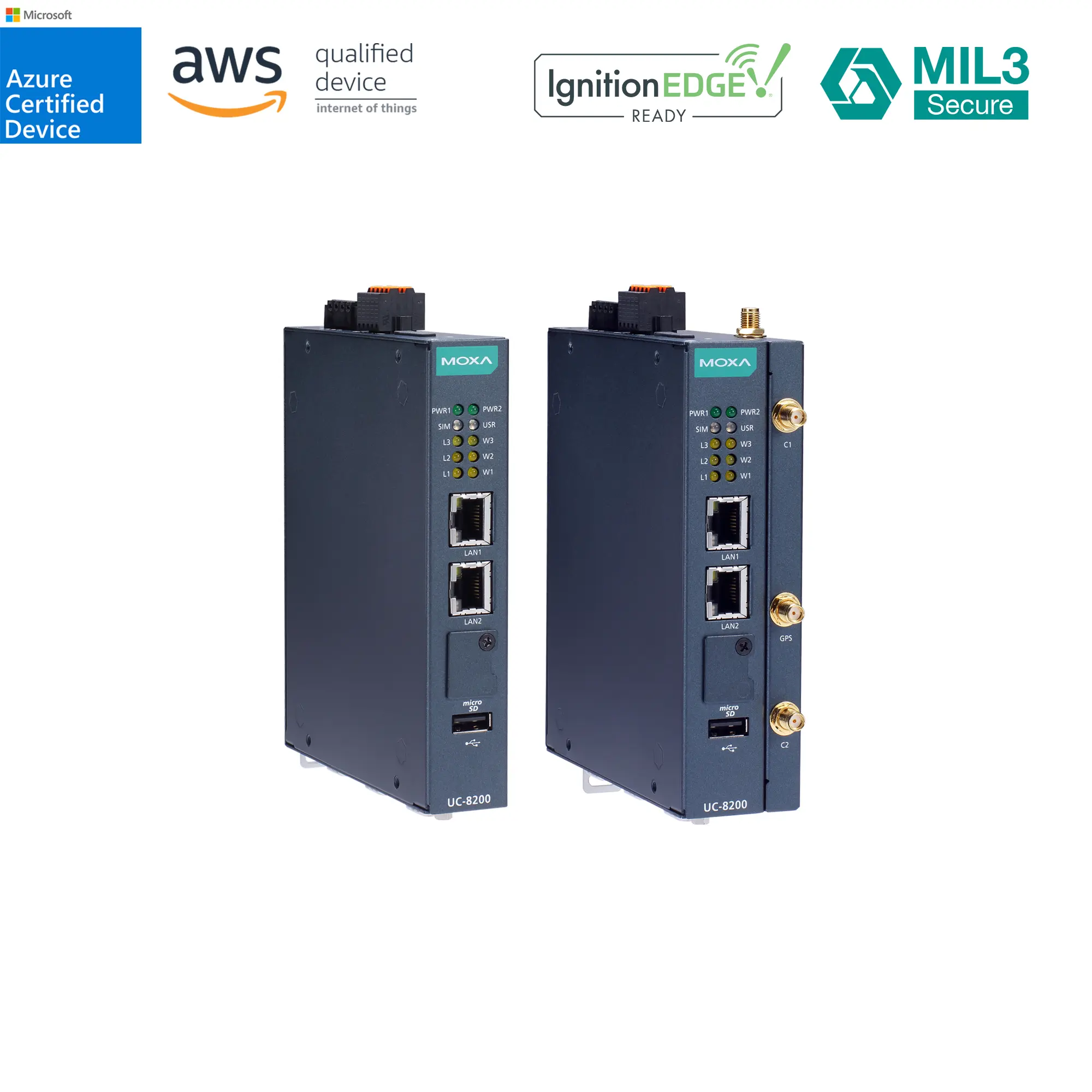

Industrial computer – Arm Cortex-A7 dual-core 1 GHz IIoT gateway with built-in TPM module, 1 CAN port, 4 DIs, 4 DOs, -40 to 85°C operating temperature
Computer
- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- DRAM: 2 GB DDR3L
- Supported OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLMoxa Industrial Linux 3 MIL3 OS is selectable via Moxa Computer Configuration System (CCS) for CTO models. For the model names, see the Ordering Information section of the datasheet PDF file. (Debian 11, kernel 5.10), 2031 EOLSee www.moxa.com/MIL
- Storage Pre-installed: 8 GB eMMC
- Expansion Slots: MicroSD (SD 3.0) socket x 1
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- Serial Ports: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
- CAN Ports: CAN 2.0 A/B x 1 (DB9 male)
- Digital Input: DIs x 4
- Digital Output: DOs x 4
- USB 2.0: USB 2.0 hosts x 1, type-A connectors
- Buttons: Programmable button
- TPM: TPM v2.0
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
Security Functions
- Hardware-based Security: TPM 2.0 Hardware Root of Trust Secure Boot
- Intrusion Detection: Host-based Intrusion Detection
- Security Tools: Security Diagnostic Tool Security Event Auditing Secure Update
- Disk Protection: LUKS Disk Encryption
- Recovery: One-step recovery to the last known secure state Dual-system design with automatic failback
- Reliability: Network Keep Alive Network Failover and Failback
Serial Interface
- Baudrate: 300 bps to 921.6 kbps
- Data Bits: 7, 8
- Stop Bits: 1, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
- Console Port: 1 x 4-pin header to DB9 console port
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
CAN Interface
- No. of Ports: 1
- Connector: DB9 male
- Baudrate: 10 to 1000 kbps
- Industrial Protocols: CAN 2.0A CAN 2.0B
- Isolation: 2 kV (built-in)
- Signals: CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- Dry Contact: Off: open On: short to GND
- Isolation: 3K VDC
- Sensor Type: Wet contact (NPN) Dry contact
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- Current Rating: 200 mA per channel
- I/O Type: Sink
- Voltage: 24 VDC nominal, open collector to 30 VDC
Cellular Interface
- Cellular Standards: LTE Cat. 4
GPS Interface
