Description

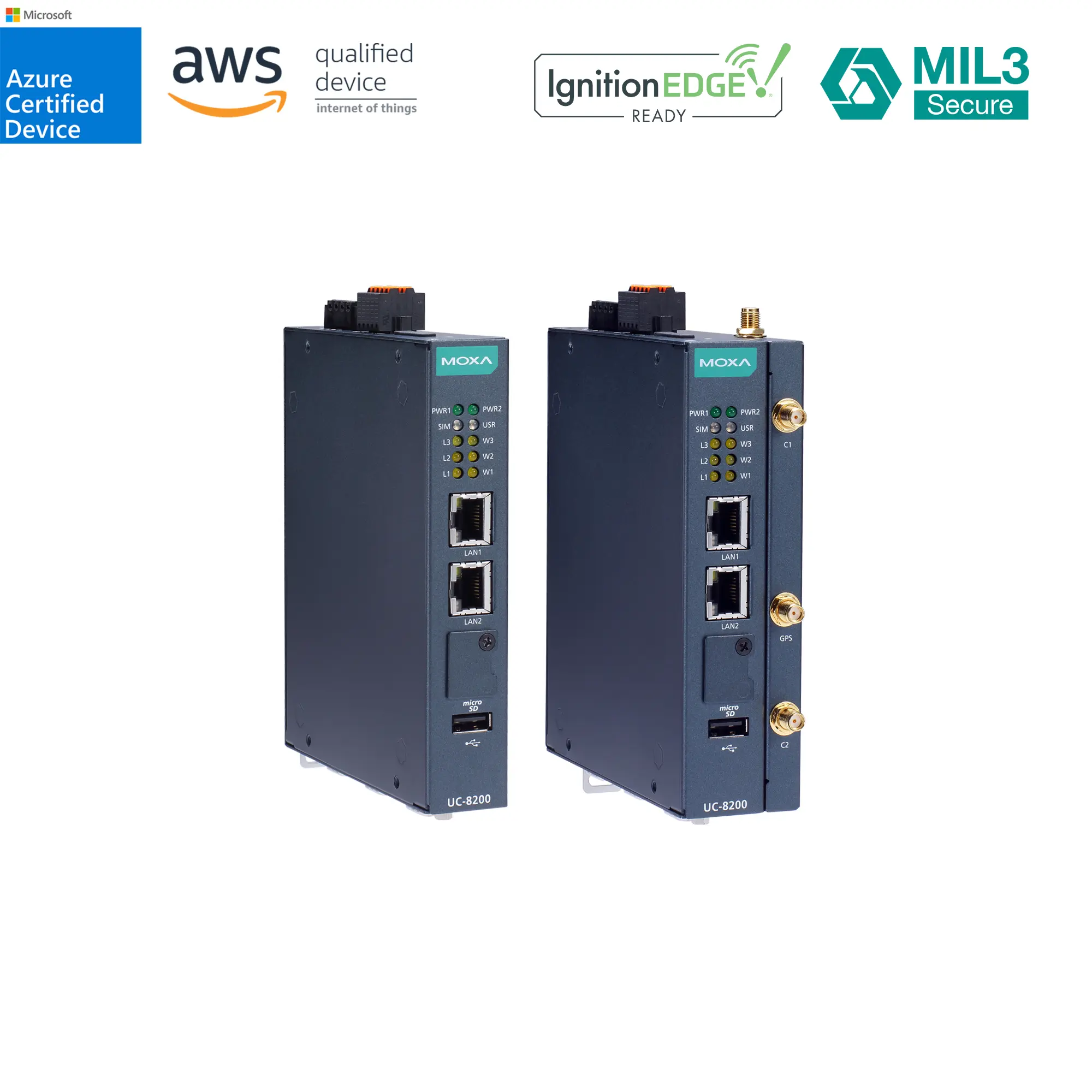

Industrial computer – Arm Cortex-A7 dual-core 1 GHz IIoT gateway with built-in TPM module, EU region LTE Cat. 4 module preinstalled, 1 Mini PCIe expansion slot for a Wi-Fi module, 1 CAN port, 4 DIs, 4 DOs, -40 to 70°C operating temperature
Computer
- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- DRAM: 2 GB DDR3L
- Supported OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLMoxa Industrial Linux 3 MIL3 OS is selectable via Moxa Computer Configuration System (CCS) for CTO models. For the model names, see the Ordering Information section of the datasheet PDF file. (Debian 11, kernel 5.10), 2031 EOLSee www.moxa.com/MIL
- Storage Pre-installed: 8 GB eMMC
- Expansion Slots: MicroSD (SD 3.0) socket x 1
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- Serial Ports: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
- CAN Ports: CAN 2.0 A/B x 1 (DB9 male)
- Digital Input: DIs x 4
- Digital Output: DOs x 4
- USB 2.0: USB 2.0 hosts x 1, type-A connectors
- Wi-Fi Antenna Connector: RP-SMA x 2
- Cellular Antenna Connector: SMA x 2
- GPS Antenna Connector: SMA x 1
- Expansion Slots: mPCIe slots x 1
- SIM Format: Nano
- Number of SIMs: 2
- Buttons: Programmable button
- TPM: TPM v2.0
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
Security Functions
- Hardware-based Security: TPM 2.0 Hardware Root of Trust Secure Boot
- Intrusion Detection: Host-based Intrusion Detection
- Security Tools: Security Diagnostic Tool Security Event Auditing Secure Update
- Disk Protection: LUKS Disk Encryption
- Recovery: One-step recovery to the last known secure state Dual-system design with automatic failback
- Reliability: Network Keep Alive Network Failover and Failback
Serial Interface
- Baudrate: 300 bps to 921.6 kbps
- Data Bits: 7, 8
- Stop Bits: 1, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
- Console Port: 1 x 4-pin header to DB9 console port
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
CAN Interface
- No. of Ports: 1
- Connector: DB9 male
- Baudrate: 10 to 1000 kbps
- Industrial Protocols: CAN 2.0A CAN 2.0B
- Isolation: 2 kV (built-in)
- Signals: CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- Dry Contact: Off: open On: short to GND
- Isolation: 3K VDC
- Sensor Type: Wet contact (NPN) Dry contact
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- Current Rating: 200 mA per channel
- I/O Type: Sink
- Voltage: 24 VDC nominal, open collector to 30 VDC
Cellular Interface
- Cellular Standards: LTE Cat. 4
- Band Options: LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz)/ LTE Band 28A (700 MHz)
GPS Interface
- Receiver Types: GPS, GLONASS, BeiDou, Galileo, QZSS
- Accuracy: Position: 2.0 m @CEP50
- Time to First Fix (TTFF): Hot start: 1.1 s Warm start: 22.1 s Cold start: 29.9 s
- Sensitivity: Acquisition: -147 dBm Tracking: -160 dBm Cold starts: -145 dBm
- Update Rate: 1 Hz
LED Indicators
- System: Power x 2 Programmable x 1 SIM card indicator x 1
- Wireless Signal Strength: Cellular/Wi-Fi x 6
Power Parameters
- No. of Power Inputs: Redundant dual inputs
- Input Voltage: 12 to 48 VDC
- Power Consumption: 10 W
- Input Current: 0.8 A @ 12 VDC
Reliability
- Alert Tools: External RTC (real-time clock)
- Automatic Reboot Trigger: External WDT (watchdog timer)
Physical Characteristics
- Dimensions: 141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in)
- Weight: 750 g (1.65 lb)
- Housing: SECC Metal
- IP Rating: IP30
- Installation: DIN-rail mounting Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Shock: IEC 60068-2-27
- Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Standards and Certifications
- EMC: BIS EN 55032/35 EN 61000-6-2/-6-4 KC, RCM, UKCA
- EMI: EN 55032 Class A EN 61000-6-4 Class A FCC Part 15B Class A ICES-003 Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; 1.4 GHz to 6 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: line-to-line: 0.5 kV; line-to-PE: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Cybersecurity: IEC 62443-4-2 Security Level 2 EN 18031-1
- Hazardous Locations: Class I Division 2 ATEX
- Carrier Approvals: Verizon AT&T PTCRB
- Safety: UL 62368-1 EN 62368-1
- Radio Frequency: UC-8220 FCC CE (RED) ISED, RCM, NCC
- International Approval: FCC, CE, ISED, UKCA, RCM, KC BIS
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 528,574 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
