Description

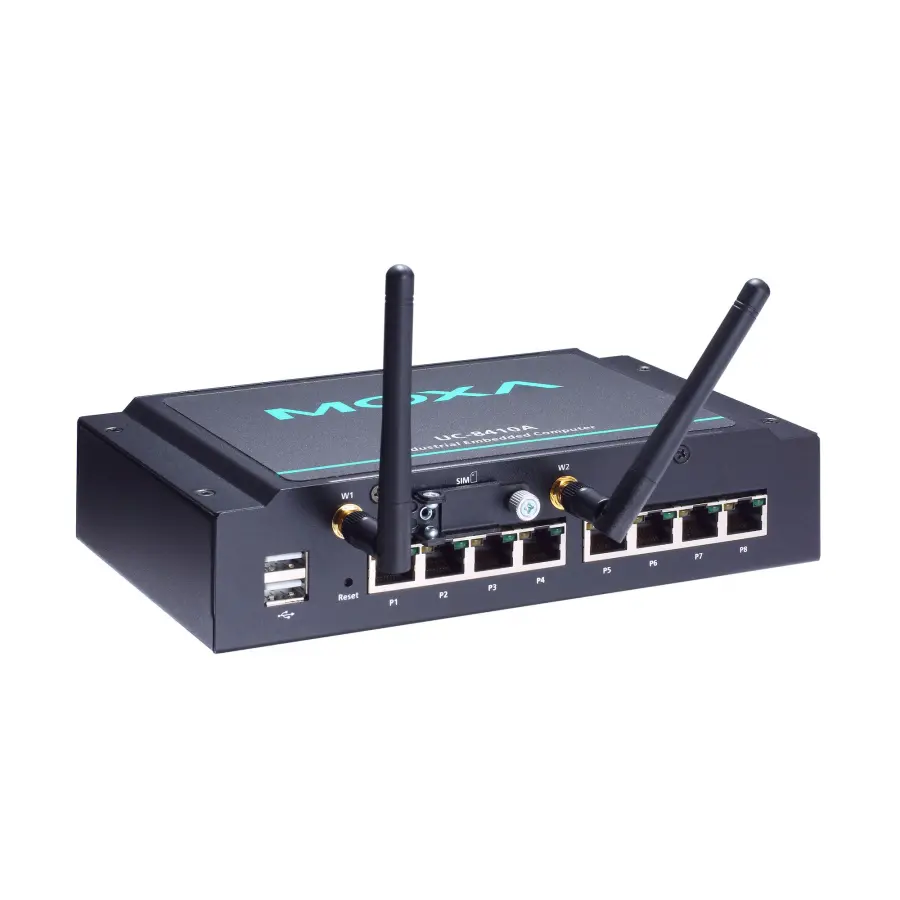

Industrial computer – Arm-based wall-mount industrial computer with Cortext-A7 1 GHz dual-core, 1 GB DDR3L RAM, 8 serial ports, 4 DIs, 4 DOs, 3 Ethernet ports, 1 mSATA slot, 1 USB port, Debian 8, -10 to 60°C operating temperature
Computer
- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- System Memory Pre-installed: 1 GB DDR3L
- Storage Pre-installed: 8 GB eMMC
- Storage Slot: SD slots x 1 mSATA slots x 1, internal mini-PCIe socket
- Supported OS: Linux Debian 8 (Linux kernel v4.1), 2022 EOLMoxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLSee www.moxa.com/MIL
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 3
- Serial Ports: RS-232/422/485 ports x 8, software selectable (RJ45)
- USB 2.0: USB 2.0 hosts x 2, type-A connectors
- Digital Input: DIs x 4
- Digital Output: DOs x 4
- Console Port: 1 x 4-pin header to DB9 console port
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
- Channel-to-Channel Isolation: 3000 VDC
- Connector: Screw-fastened Euroblock terminal
- Dry Contact: On: short to GND Off: open
- Sensor Type: Dry contact Wet contact (NPN or PNP)
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- Current Rating: 200 mA per channel
- I/O Type: Sink
- Voltage: Open-drain to 30 VDC
LED Indicators
- System: Power x 1 System ready x 1 Storage x 1 Programmable x 10
- LAN: 2 per port (10/100/1000 Mbps)
- Serial: 2 per port (Tx, Rx)
Power Parameters
- Input Current: 1.57A @ 12 VAC max.
- Input Voltage: 12 to 48 VDC
- Power Consumption: 19 W (max.)
- Power Connector: Terminal block (for DC models)
Physical Characteristics
- Dimensions: 200 x 120 x 48.6 mm (7.87 x 4.72 x 1.91 in)
- Weight: 1,000 g (2.21 lb)
- Housing: Metal
- IP Rating: IP30
- Installation: Wall mounting (standard)
Environmental Limits
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
- Safety: UL/IEC 60950-1 & 62368-1
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-64
Declaration
- Green Product: RoHS, CRoHS, WEEE
