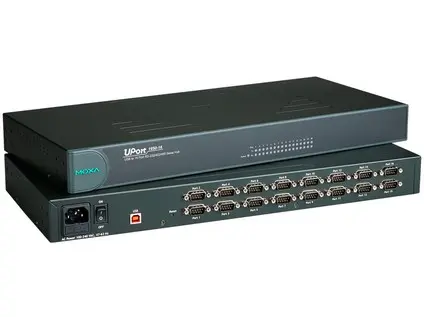

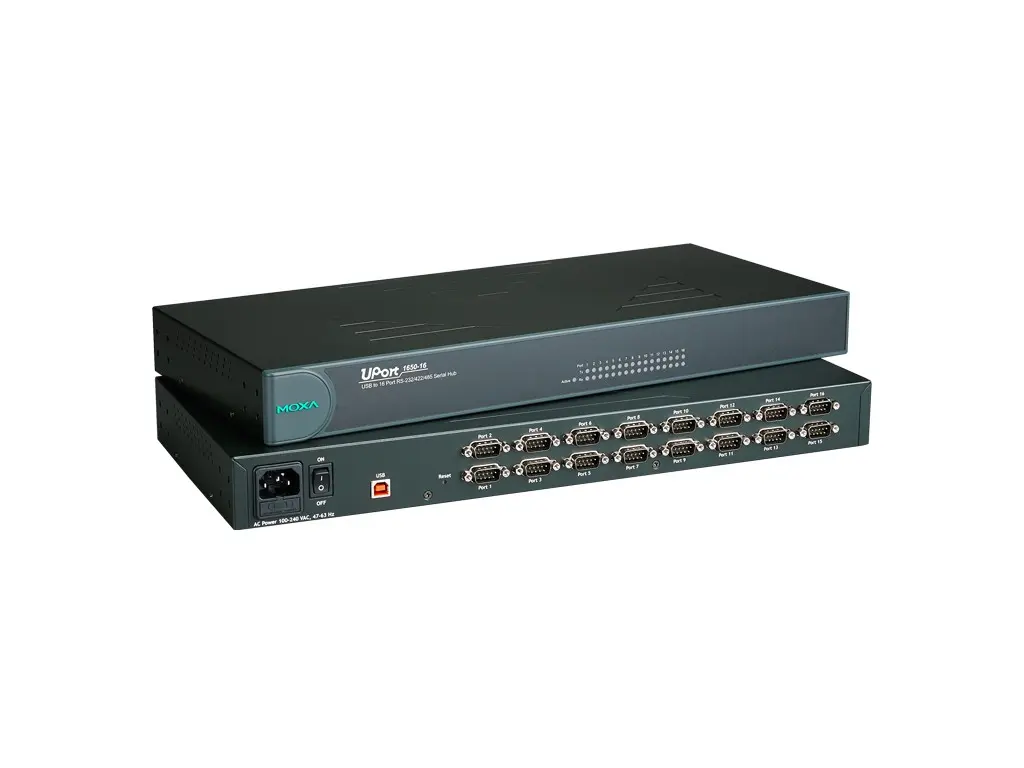

UPort 1650-16

Serial communication device – USB to 16-port RS-232/422/485 serial hub

USB Interface

• Speed: 12 Mbps, 480 Mbps
• USB Connector: USB Type B
• USB Standards: USB 1.1/2.0 compliant

Serial Interface

• No. of Ports: 16
• Connector: DB9 male
• Baudrate: 50 bps to 921.6 kbps
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: None RTS/CTS XON/XOFF
• Serial Standards: RS-232/422/485 (DB9 male connector)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

Serial Software Features

• Windows Drivers: Windows 11/10/8.1/8/7/Vista/XP/ME/98/95Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT
• Linux Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
• Mac Drivers: macOS versions: 10.12 to 10.15, 11.x
• Virtual Machine: VMware Fusion (Windows on macOS 10.12 to 11.x) VMWare ESXi (Linux kernel 4) Parallels Desktop (Windows on macOS 10.12 to 11.x)
• Arm®-based Platform Support: Linux kernel 5.x / 4.x
• Android API: Android 3.1.x and later

Power Parameters

• Input Voltage: 100 to 240 VAC
• Input Current: 220 mA @ 100 VAC

Physical Characteristics

• Housing: Metal
• Dimensions: 440 x 45.5 x 198.1 mm (17.32 x 1.79 x 7.8 in)
• Weight: 3,485 g (7.68 lb)

Environmental Limits

• Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Operating Temperature: 0 to 55°C (32 to 131°F)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/mIEC 61000-4-4 EFT: Power: 1 kVIEC 61000-4-5 Surge: Power: 1 kVIEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/mIEC 61000-4-8 PFMF
• Safety: UL 60950-1

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 120,001 hrs
• Standards: MIL-HDBK-217F

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
