Description

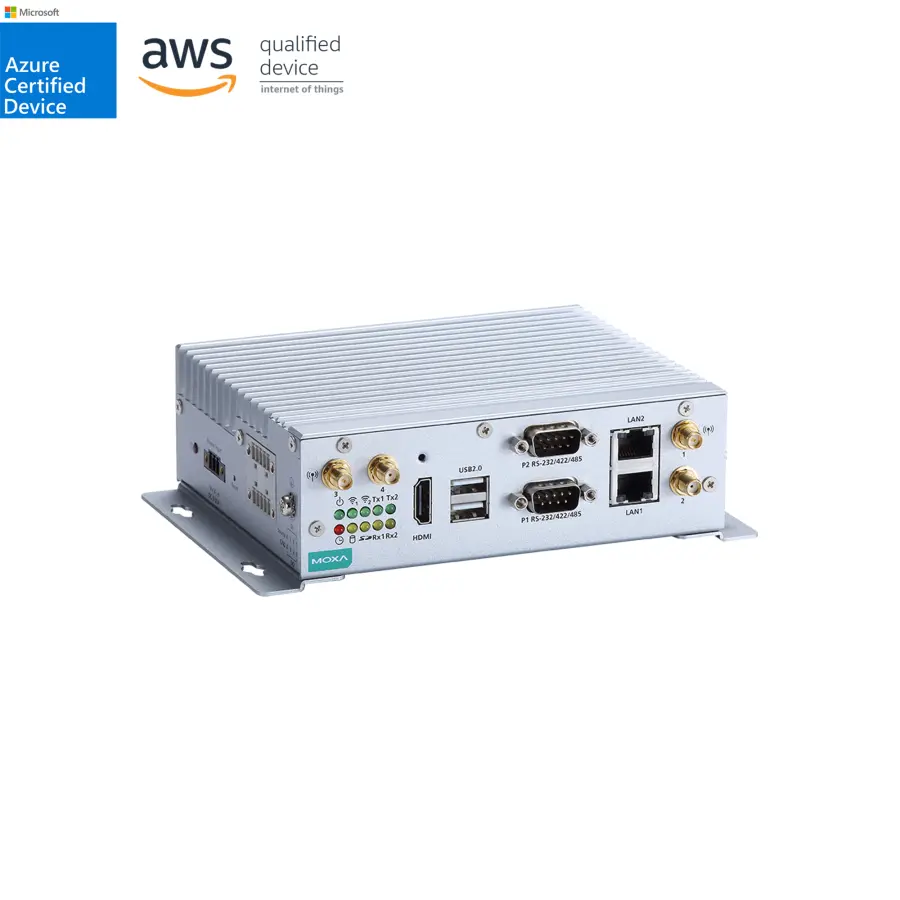

Industrial embedded computer – x86 embedded computer with Intel Atom® E3845 processor, 4 GB RAM, 1 HDMI port, 2 Ethernet ports, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD slot with 16 GB card preinstalled, 1 mSATA slot with 32 GB preinstalled, 1 uSIM slot, 1 Wi-Fi Mini PCIe slot, 1 3G/LTE Mini PCIe slot, 5 wireless SMA connectors, Linux Debian 8 preinstalled, -40 to 70°C operating temperature
Computer
- CPU: Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)
- System Memory Pre-installed: 4 GB DDR3L
- System Memory Slot: SODIMM DDR3/DDR3L slot x 1
- Supported OS: Windows Embedded Standard 7 (WS7E) 64-bitWindows 10 Embedded IoT Enterprise 2016 LTSB Entry 64-bitWindows 10 Embedded IoT Enterprise 2019 LTSC Entry 64-bitWindows 10 Embedded IoT Enterprise 2021 LTSC Entry 64-bitLinux Debian 9 OS image (Kernel 4.9)Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers
- Storage Slot: mSATA slots x 1 SD 3.0 (SDHC/SDXC) socket x 1
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
- USB 2.0: USB 2.0 hosts x 2, type-A connectors
- USB 3.0: USB 3.0 hosts x 1, type-A connectors
- Digital Input: DIs x 4
- Digital Output: DOs x 4
- Expansion Slots: mPCIe slots x 2
- Video Output: HDMI x 1, HDMI connector (type A)
- Wi-Fi Antenna Connector: RP-SMA x 2
- Cellular Antenna Connector: SMA x 2
- Number of SIMs: 1
- SIM Format: Mini
- GPS Antenna Connector: SMA x 1
Digital Inputs
- Isolation: 3K VDC
- Connector: Screw-fastened Euroblock terminal
- Dry Contact: On: short to GND Off: open
- I/O Mode: DI
- Sensor Type: Dry contact Wet contact (NPN or PNP)
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- Current Rating: 200 mA per channel
- I/O Type: Sink
- Voltage: 24 to 30 VDC
LED Indicators
- System: SD slots x 1 Power x 1 Storage x 1 Programmable x 1
- Wireless Signal Strength: Cellular/Wi-Fi x 2
- LAN: 1 per port (10/100/1000 Mbps)
- Serial: 2 per port (Tx, Rx)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
- Isolation: N/A
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
- Input Voltage: 9 to 36 VDC
- Power Connector: Terminal block (for DC models)
- Power Consumption (Max.): 2000 mA @ 9 VDC
- Power Consumption: 18 W (max.)
Physical Characteristics
