Description

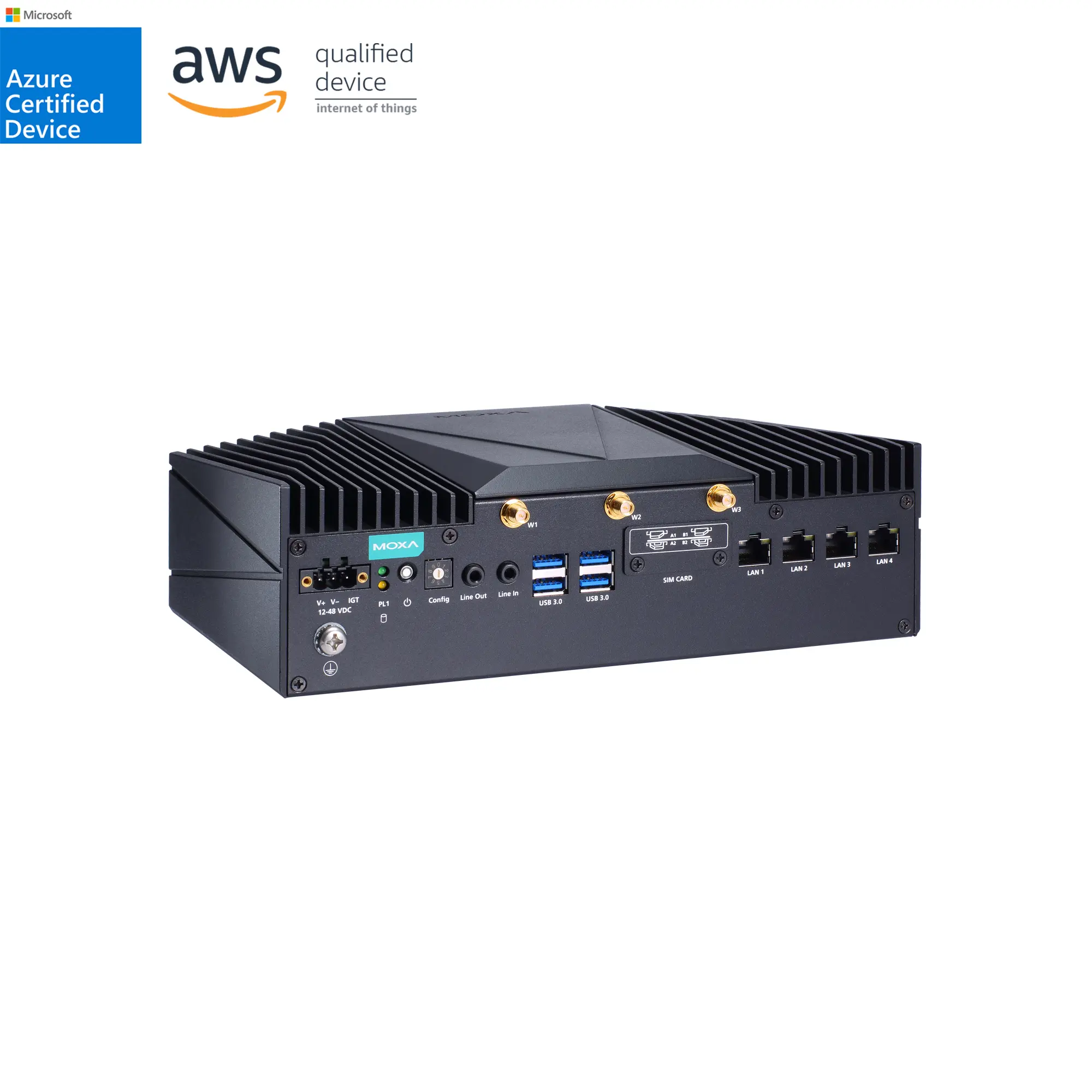

Industrial embedded computer – x86 computer with Intel® 7th Gen Core™ i7-7600U 3.9 GHz processor, 4 GbE ports, 4 COM ports, 4 DIs, 4 DOs, 1 HDMI/DP port, 1 mSATA slot, 2 2.5
Computer
- CPU: Intel® Core™ i7-7600U processor (4M cache, up to 2.80 GHz)
- Storage Slot: 2.5-inch HDD/SSD slots x 2 mSATA slots x 1
- Supported OS: Windows 10 Embedded IoT Ent 2019 LTSC 64-bitWindows 10 Embedded IoT Ent 2021 LTSC 64-bitLinux Debian 9 imageLinux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers
- System Memory Slot: SODIMM DDR4 slot x 2
- DRAM: 32 GB max
- Graphics Controller: Intel® HD Graphics 620
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
- Serial Ports: RS-232/422/485 ports x 4, software selectable (DB9 male)
- Digital Output: DOs x 4
- Digital Input: DIs x 4
- USB 3.0: USB 3.0 hosts x 4, type-A connectors
- Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
- Video Output: HDMI x 1, HDMI connector (standard) DP x 1, DisplayPort connector (standard)
- Wi-Fi Antenna Connector: RP-SMA x 3
- Cellular Antenna Connector: SMA x 2 (optional)
- GPS Antenna Connector: SMA x 1 (optional)
- Expansion Slots: mPCIe slots x 2
- SIM Format: Micro
- Number of SIMs: 4
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- I/O Mode: DI
- Isolation: 3k VDC
- Sensor Type: Wet contact (NPN or PNP) Dry contact
- Dry Contact: Logic 0: Short to GND Logic 1: Open
- Wet Contact (DI to COM): Logic 0: 0 to 3 VDC Logic 1: 10 to 30 VDC
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- Current Rating: 200 mA per channel
- I/O Type: Sink
- Voltage: 0 to 30 VDC
- Isolation: 3k VDC
LED Indicators
- System: Power x 1 Storage x 1
- LAN: 2 per port (10/100/1000 Mbps)
- Serial: 2 per port (Tx, Rx)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Connector: DB9 male
- ESD: Contact: 6 kV; Air: 8 kV (level 3)
- Isolation: 2 kV
- Data Bits: 5, 6, 7, 8
- Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
- Input Voltage: 12 to 48 VDC
- Power Connector: Terminal block
- Power Consumption (Max.): 70 W (max.)
Power Ignition Control
- Switch Type: Rotary (front panel)
- Switch Settings: Setting 0: IGT function disabledSetting 1: PWR ON delay: 0.5 sec; PWR OFF delay: 30 secSetting 2: PWR ON delay: 1 sec; PWR OFF delay: 30 secSetting 3: PWR ON delay: 1
