Description

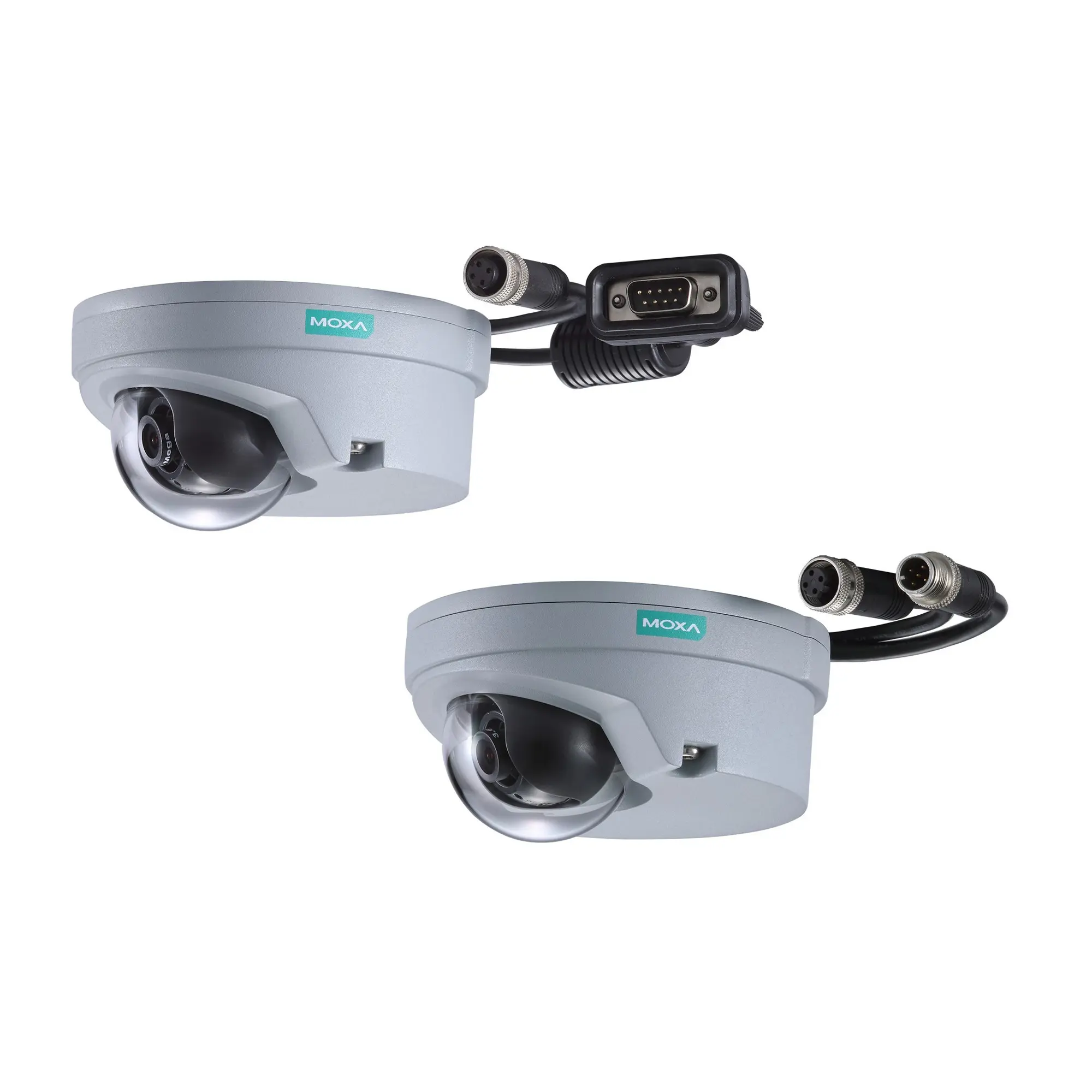

Industrial edge connectivity device – EN 50155, 3-megapixel, H.265/H.264/MJPEG IP camera, 1 built-in microphone, PoE, 3.6 mm lens, -40 to 55°C
Input/Output Interface
- Digital Input Channels: 1
- Digital Inputs: +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA
- Connector: VPort P07-3 Series: 5-pin male M12 connector with 20 cm cable VPort 07-3 Series: DB9 male
Ethernet Interface
- PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): VPort P07-3 Series: 1
- 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): VPort 07-3 Series: 1
Ethernet Software Features
- Protocols: TCP/IP IPv4/IPv6 UDP HTTP RTP/RTSP ARP UPnP FTP TFTP SFTP NTP Client DNS QoS IGMP v3 ICMP SNMPv1/v2c/v3 DHCP Opt66/67 HTTPS
Security Functions
- Password: User-level password protection
- Filter: IP address
- System Boot: Secure Boot
- Encryption: HTTPS SSH
Power Parameters
- No. of Power Inputs: 1
- Source of Input Power: VPort P07-3 Series: PoE (IEEE 802.3af)
- Input Voltage: VPort 07-3 Series: 12/24 VDC
- Input Current: VPort P07-3: 48 VDC @ 0.137 AVPort 07-3: 24V VDC @ 0.27 A; 12 VDC @ 0.59 A
- Power Connector: VPort 07-3 Series: DB9 connector
Camera Characteristics
- Sensor: 1/3-in 3-megapixel progressive scan CMOS
- Lens: VPort 07/P07-3x24M Series: f=2.4 mm, F2.0, Diagonal 139°, Horizontal 110°, Vertical 81°VPort 07/P07-3x36M Series: f=3.6 mm, F1.6, Diagonal 97°, Horizontal 75°, Vertical 55°VPort 07/P07-3x42M Series: f=4.2 mm, F1.6, Diagonal 82°, Horizontal 64°, Vertical 47°VPort 07/P07-3x60M Series: f=6.0 mm, F1.8, Diagonal 57°, Horizontal 43°, Vertical 32°VPort 07/P07-3x80M Series: f=8.0 mm, F1.6, Diagonal 41°, Horizontal 33°, Vertical 24°
- Minimum Illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
- Synchronization: Internal
- White Balance: ATW/AWB
- Electronic Shutter: Auto, Fixed (1/30 to 1/25000 sec)
- S/N Ratio: Maximum 50 dB (AGC off; DNR on)
- DNR (digital noise reduction): Built-in 2D/3D DNR
- WDR (wide dynamic range): 100 dB
- AGC (auto gain control): 2X, 4X, 8X, 16X
- Flickerless Control: Automatic, 50 Hz, 60 Hz modes
- Image Rotation: Flip, Mirror, 90°, 180°, 270° rotation
- Image Setting: Manual tuning with saturation, sharpness, and contrast
- Camera Angle: Pan: ±15°, Tilt: 20° to 90° for 2.4mm lens, 0° to 90° for other lens (controlled manually)
Video Interface
- Video Compression: H.265 (MPEG-H part 2/HEVC), H.264 (ISO/IEC 14496-10/AVC), or MJPEG
- Video Output: via Ethernet
- Video Streams: 4 independent video streams
- Video Resolution and FPS (frames per second): Read more NTSC PAL Size Max. FPS Size Max. FPS CIF 352 x 240 30 352 x 288 25 VGA 640 x 480 30 640 x 480 25 4CIF 704 x 480 30 704 x 576 25 Full D1 720 x 480 30 720 x 576 25 SVGA 800 x 600 30 800 x 600 25 HD 1280 x 720 30 1280 x 720 25 WXGA 1280 x 800 30 1280 x 800 25 Full HD 1920 x 1080 30 1920 x 1080 30 QXGA 2048 x 1536 20 2048 x 1536 20
- Video Resolution and FPS (frames per second): Note: Once the 3-megapixels resolution is configured in one stream, all video streams will be only up to maximum 20 FPS at all resolutions due to sensor limitation.
- Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable LDC (Lens distortion correction) for less image warp Maximum of 10 simultaneous unicast connections, 50 multicast clients
Audio Interface
- Audio Format: Mono, PCM (G.711) AAC
- Audio Inputs: VPort 07/P07-3MxxM Series: 1 x built-in microphoneVPort 07-3LxxM Series: 1 x line-in, with DB9 connectorVPort P07-3LxxM Series: 1 x line-in, with M12 connector
Camera Software Development
- Video Standards: ONVIF Profile S, T, M
Camera Alarm Software Features
- Intelligent Video: Camera tampering detection
- Video Motion Detection: 3 independently configurable areas
- Imaging: JPEG snapshots for pre/trigger/post alarm images
- Custom Alarms: HTTP event servers for setting customized alarm actions
- FTP Messaging: Automatic transfer of stored images via FTP as event-triggered actions
- Pre-Alarm Buffer: 50 MB video buffer for JPEG snapshot images
Software Requirements
- Memory Size: 8 GB
- Operating System: Windows 10 or above
- Browser: Internet Explorer 11 or above Chrome: Version 118 or above Microsoft Edge: Version 118 or above
- Multimedia: DirectX 12 or above
Physical Characteristics
- Housing: IP66 rain and dust protection Metal housing, PC dome cover IK8 vandal resistant protection Built-in heater for dome cover demist
- Dimensions: 110 x 115.5 x 61.8 mm (4.33 x 4.53 x 2.43 in)
- Weight: 620 g (1.37 lb)
- Installation: Panel mounting
- Protection: PCB conformal coating is optional and provided on request. If conformal coating is required, please contact Moxa.
Environmental Limits
- Operating Temperature: Standard Models: -40 to 55°C (-40 to 131°F)Wide Temp. Models: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Ingress Protection: IEC 60529, IP66
- Vandal Resistance: EN 62262, IK8
- Altitude: 2000 m Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Freefall: IEC 60068-2-31
- Railway Fire Protection: EN 45545-2
- Safety: UL 62368-1
- Shock: IEC 60068-2-27, IEC 61373, EN 50155
- Vibration: IEC 60068-2-64, IEC 61373, EN 50155
- Railway: EN 50155 (complies with a portion of EN 50155 specifications)
