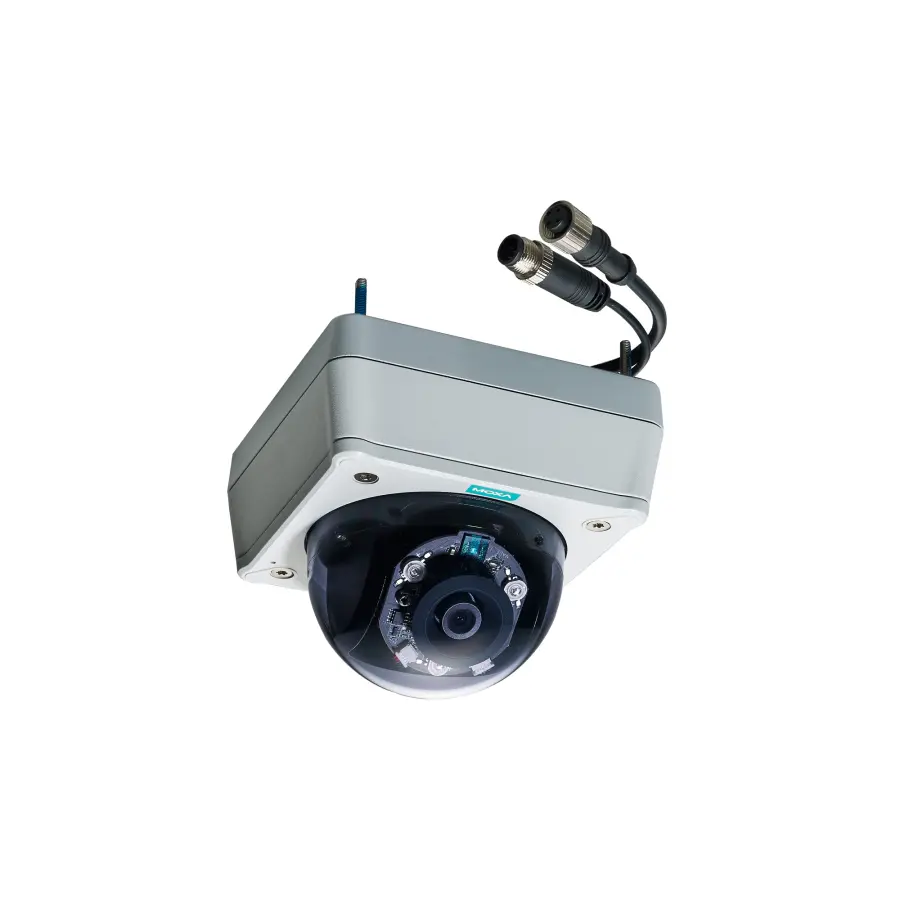

VPort P16-2MR42M-T

Industrial edge connectivity device – EN50155, day & night, IR, 1080P IP Camera, 4.2 mm lens, PoE, M12 connector, -40 to 70°C operating temperature

Memory

• microSD Slot: SDXC

Input/Output Interface

• Digital Input Channels: 1
• Digital Inputs: +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA
• Connector: 5-pin A-coded male M12 connector with 20 cm cable

Ethernet Interface

• PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1
• Standards: IEEE 802.3af for PoE

Ethernet Software Features

• Protocols: TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Security Functions

• Password: User-level password protection
• Filter: IP address
• Encryption: HTTPS

Power Parameters

• No. of Power Inputs: 1
• Source of Input Power: PoE (IEEE 802.3af)
• Input Current: 0.26 A @ 48 VDC

Camera Characteristics

• Sensor: 1/3-in 1080P progressive scan CMOS
• Lens: f=4.2 mm, F1.6, Diagonal 82°, Horizontal 62°, Vertical 34°
• Minimum Illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) Note: 0 lux if IR illuminator is on
• Camera Angle: Pan 350°, Tilt 65° (controlled manually)
• Day & Night: Auto/Color/BW; ICR control
• Synchronization: Internal
• White Balance: ATW/AWB
• Electronic Shutter: Auto, Fixed (1/30 to 1/25000 sec)
• S/N Ratio: Maximum 50 dB (AGC off; DNR on)
• ICR Control: Auto (light sensor control) or DI control
• IR Illumination: IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensor
• DNR (digital noise reduction): Built-in 2D/3D DNR
• WDR (wide dynamic range): 100 dB
• AGC (auto gain control): 2X, 4X, 8X, 16X
• Flickerless Control: Automatic, 50 Hz, 60 Hz modes
• Image Rotation: Flip, Mirror, 90°, 180°, 270° rotation
• Image Setting: Manual tuning with saturation, sharpness, and contrast

Video Interface

• Video Compression: H.264 (ISO/IEC 14496-10) or MJPEG
• Video Output: via Ethernet
• Video Streams: 4 independent H.264 or MJPEG video streams
• Video Resolution and FPS (frames per second): Read more NTSC PAL Size Max. FPS Size Max. FPS QCIF 176 x 112 30 176 x 144 25 CIF 352 x 240 30 352 x 288 25 VGA 640 x 480 30 640 x 480 25 4CIF 704 x 480 30 704 x 576 25 Full D1 720 x 480 30 720 x 576 25 SVGA 800 x 600 30 800 x 600 25 HD 1280 x 720 30 1280 x 720 25 WXGA 1280 x 800 30 1280 x 800 25 Full HD 1920 x 1080 30 1920 x 1080 30
• Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients

Audio Interface

• Audio Format: Mono, PCM (G.711) AAC
• Audio In
