Description

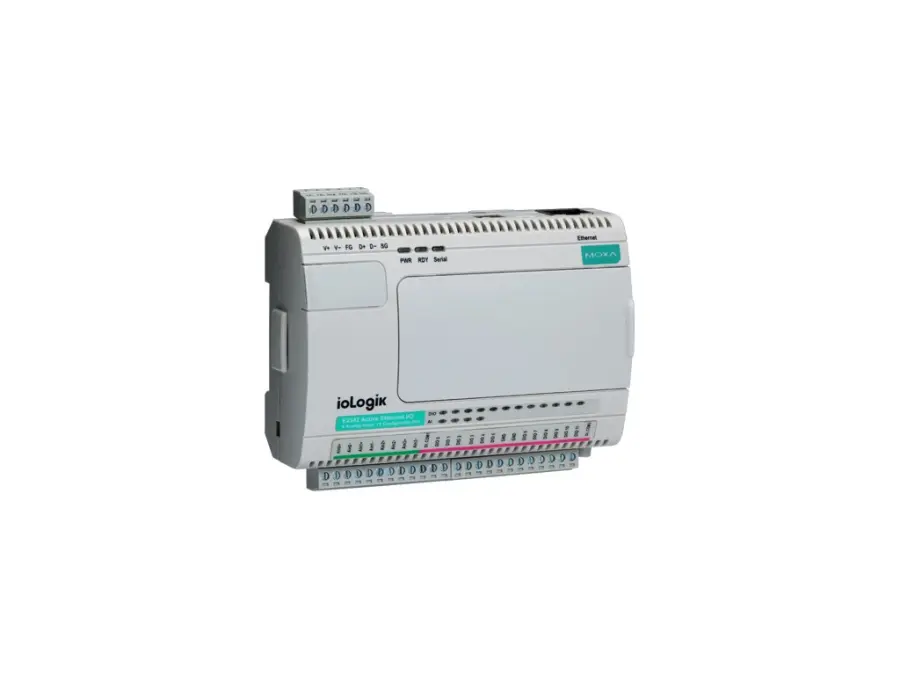

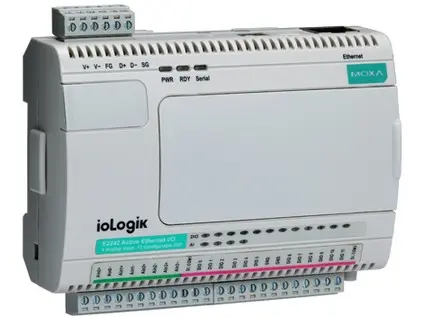

Serial communication device – Universal controller, 8 AIs, 2 AOs, Click&Go, -40 to 75°C operating temperature
Control Logic
Input/Output Interface
- Analog Input Channels: 8
- Analog Output Channels: 2
- Buttons: Reset button
- Rotary Switch: 0 to 9
- Isolation: 3k VDC or 2k Vrms
Analog Inputs
- Connector: Screw-fastened Euroblock terminal
- I/O Mode: Voltage/Current
- I/O Type: Differential
- Resolution: 16 bits
- Input Range: ±150 mV ±500 mV ±5 V ±10 V 0 to 20 mA 4 to 20 mA
- Accuracy: ±0.1% FSR @ 25°C ±0.3% FSR @ -10 to 60°C ±0.5% FSR @ -40 to 75°C
- Sampling Rate: All Channels: 10 samples/sec for voltage; 6 samples/sec for current Per Channel: 1.25 samples/sec for voltage; 0.75 samples/sec for current Single channel: 1.25 samples/sec for voltage; 0.75 samples/sec for current
- Built-in Resistor for Current Input: 120 ohms
- Input Impedance: 900 kilo-ohms (min.)
Analog Outputs
- Connector: Screw-fastened Euroblock terminal
- I/O Mode: Voltage/Current
- Output Range: 0 to 10 VDC 4 to 20 mA
- Resolution: 12-bit
- Accuracy: ±0.1% FSR @ 25°C ±0.3% FSR @ -10 to 60°C ±0.5% FSR @ -40 to 75°C
- Load (Current Mode): Internal power: 250 ohms (max.)
LED Interface
- LED Indicators: PWR, RDY, Serial, I/O Status
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Windows Utility (ioAdmin), Web Console (HTTP)
- Industrial Protocols: Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC (Active Tag), MXIO Library, CGI commands
- Management: BOOTP, IPv4, SMTP, DHCP Client, HTTP, TCP/IP
- MIB: Device Settings MIB
- Time Management: SNTP
Security Functions
- Authentication: Local database
- Encryption: HMAC
- Security Protocols: SNMPv3
Modbus TCP
- Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16
- Mode: Server (Slave)
Serial Interface
- Connector: Terminal block
- Serial Standards: RS-485
- No. of Ports: 1
- Baudrate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
- Parity: None
- Data Bits: 8
- Stop Bits: 1
- Flow Control: None
Serial Signals
- RS-485-2w: Data+, Data-, GND
Serial Software Features
- Industrial Protocols: Modbus RTU Master
Platform
- Real-time Clock (RTC): Real-time clock with battery backup
Power Parameters
- Power Connector: Screw-fastened Euroblock terminal
- No. of Power Inputs: 1
- Input Voltage: 12 to 36 VDC
- Power Consumption: 198 mA @ 24 VDC
Physical Characteristics
- Dimensions: 115 x 79 x 45
